Connector Terminal Identification
›
Brake Switch
›
Cutlass & MALIBU
›
Brake Switch Connector C1
Brake Switch Connector C1

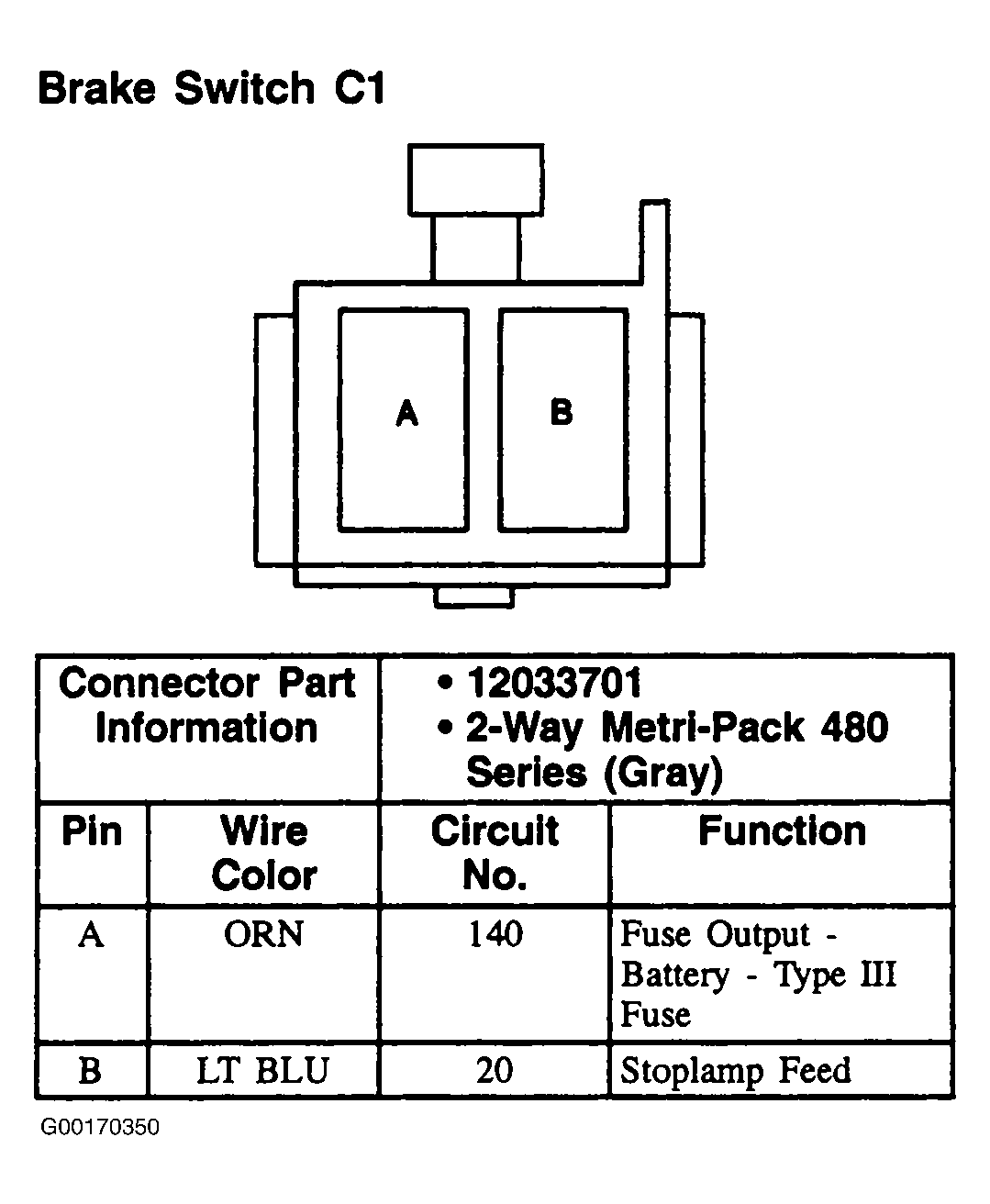

Fig 1: Brake Switch Connector C1 (Cutlass & Malibu) - 2-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
