Cutlass & MALIBU

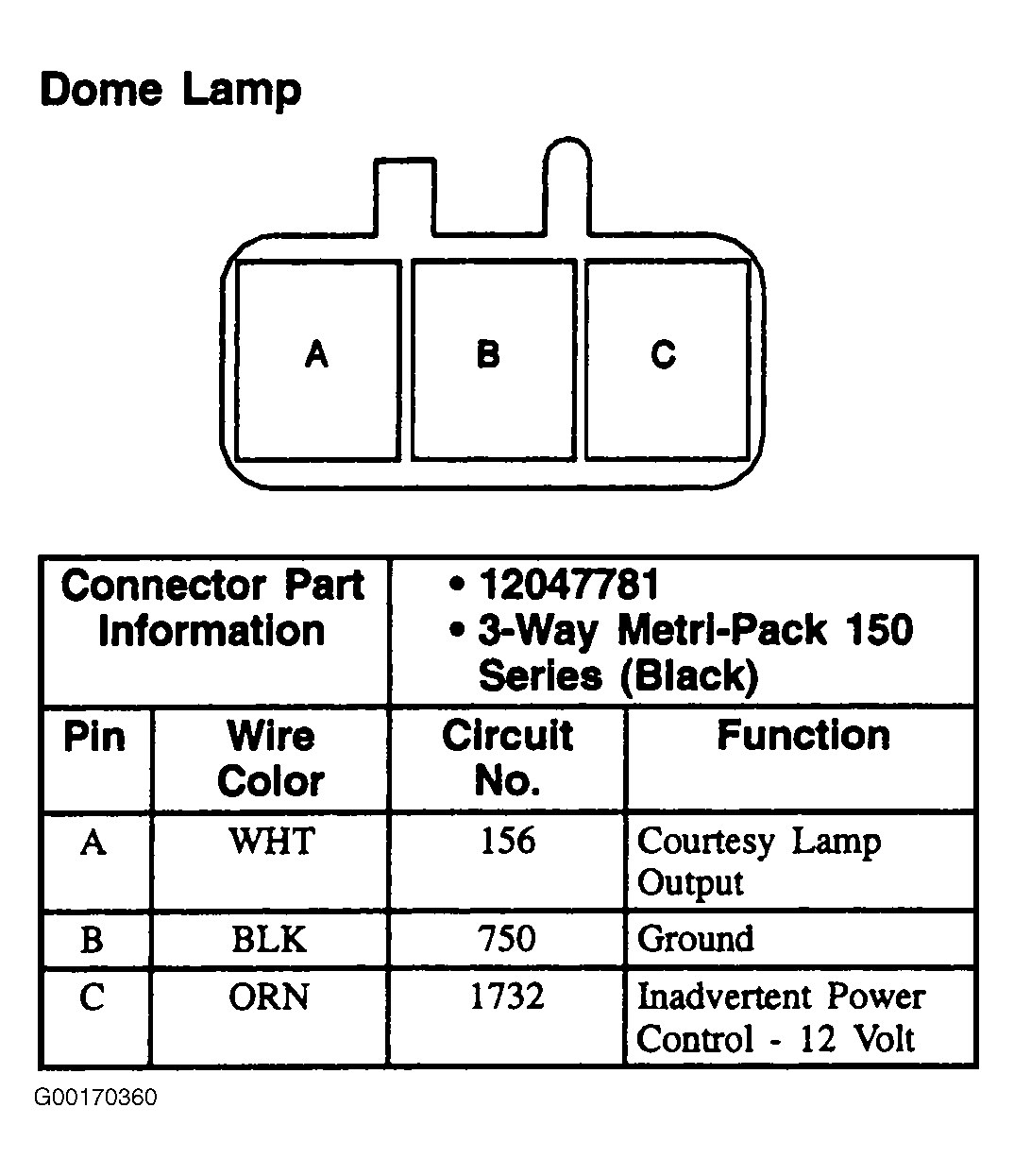

Fig 1: Dome Lamp (Cutlass & Malibu) - 3-Pin Connector (Black)
G00170360Courtesy of GENERAL MOTORS CORP.
