Connector Terminal Identification
›
Ignition Switch
›
Cutlass & MALIBU
›
Ignition Switch Connector C1
Ignition Switch Connector C1

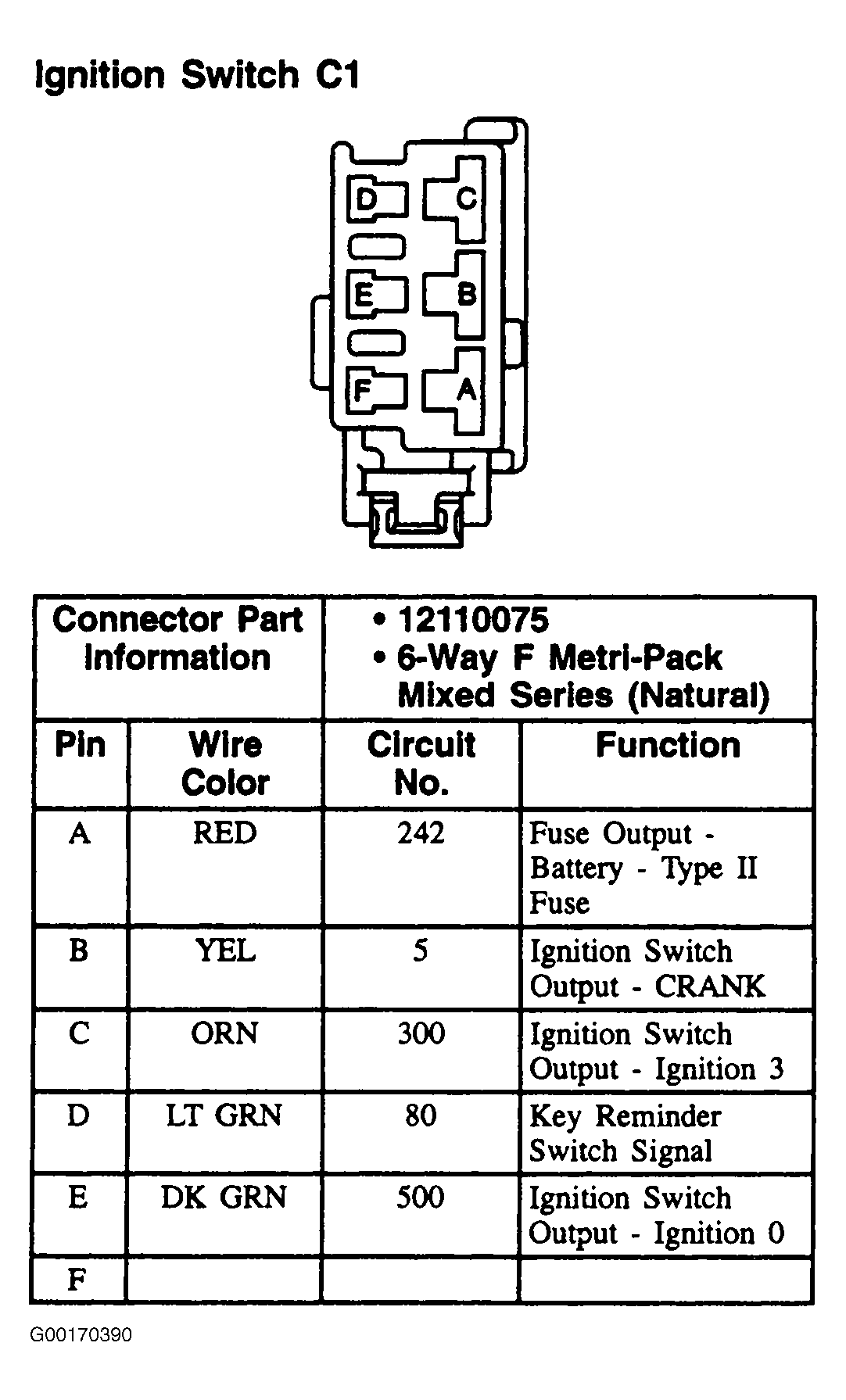

Fig 1: Ignition Switch Connector C1 (Cutlass & Malibu) - 6-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
