Connector Terminal Identification
›
Power Seat Switch
›
Cutlass & MALIBU
Cutlass & MALIBU

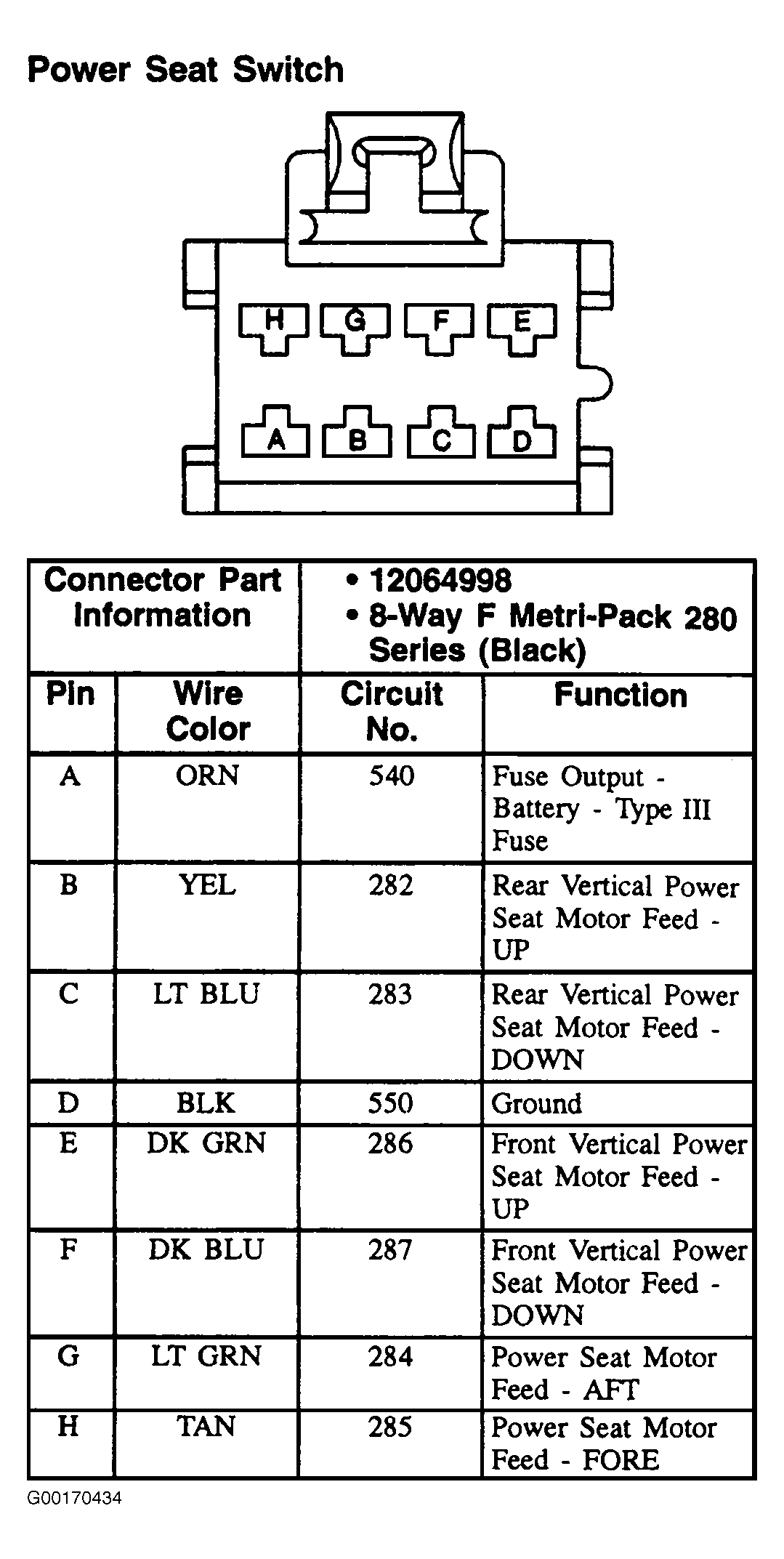

Fig 1: Power Seat Switch (Cutlass & Malibu) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
