Power Window Switch Connector C2 (LF)

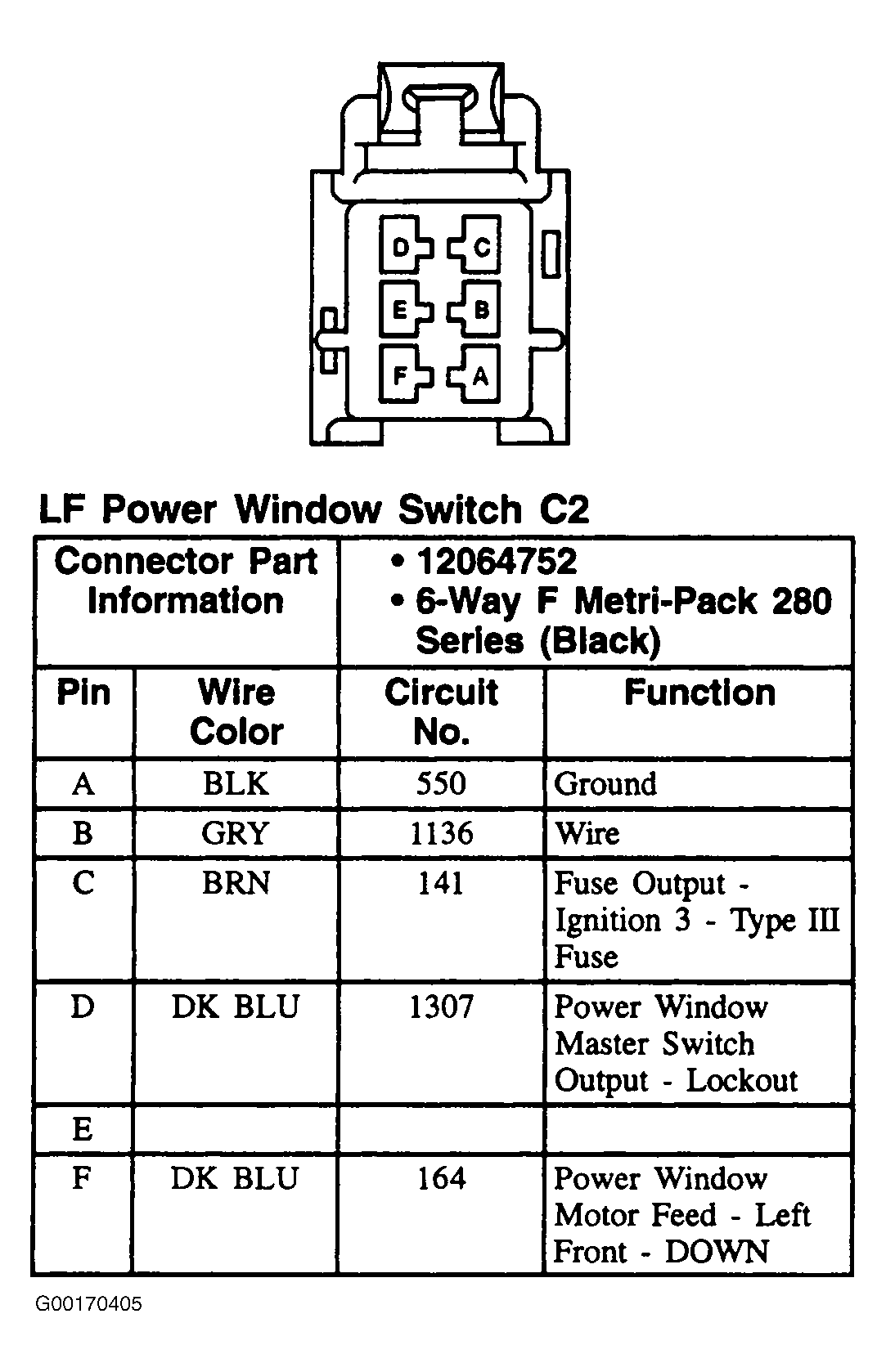

Fig 1: Power Window Switch Connector C2 (LF - Cutlass & Malibu) - 6-Pin Connector (Black)
G00170405Courtesy of GENERAL MOTORS CORP.
