Transaxle Range Switch C1

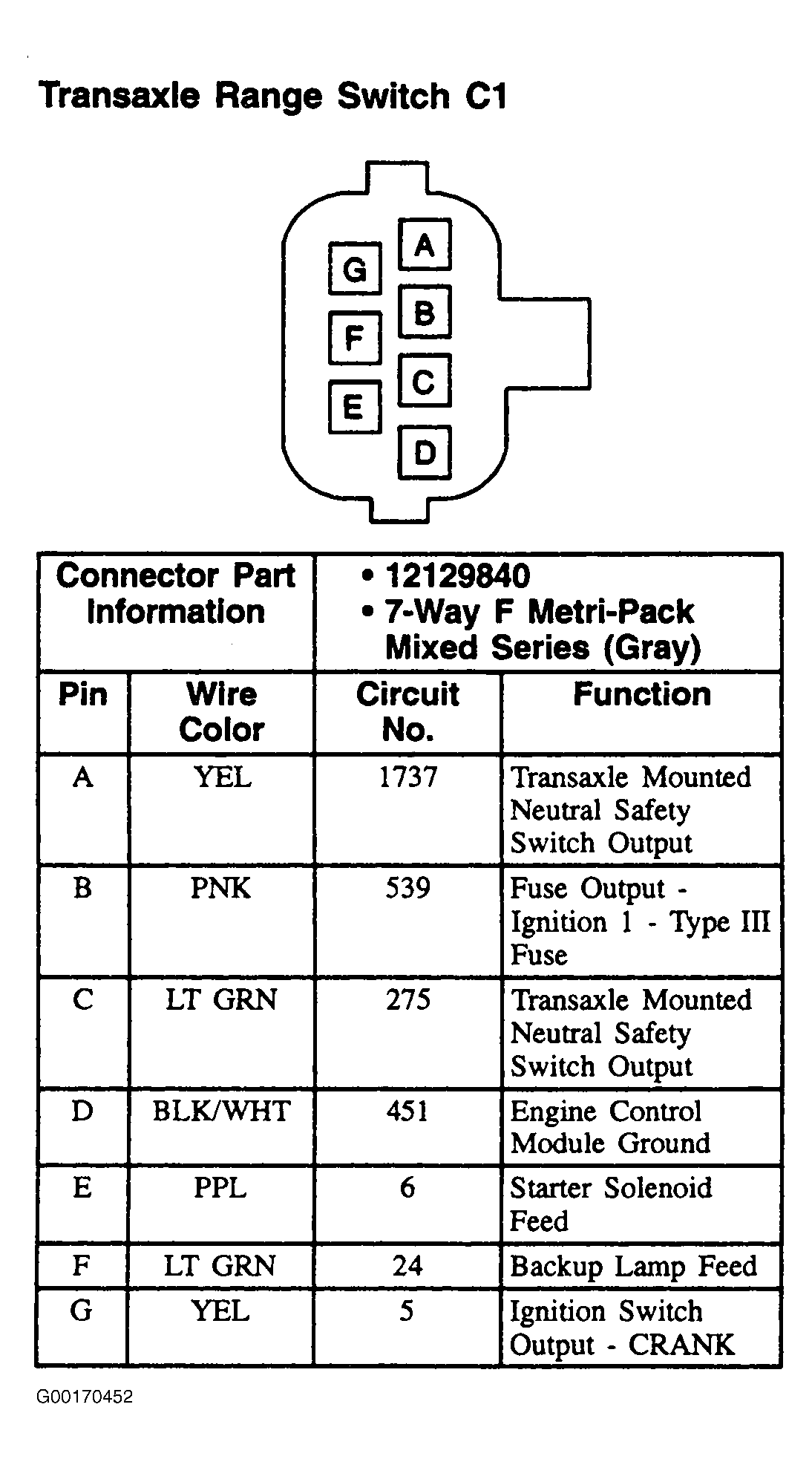

Fig 1: Transaxle Range Switch Connector C1 (Cutlass & Malibu) - 7-Pin Connector (Gray)
G00170452Courtesy of GENERAL MOTORS CORP.
