Home › Oldsmobile › 1997 › Eighty-Eight Base › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Connectors C101 To C803 › C129

Connectors C101 To C803: C129

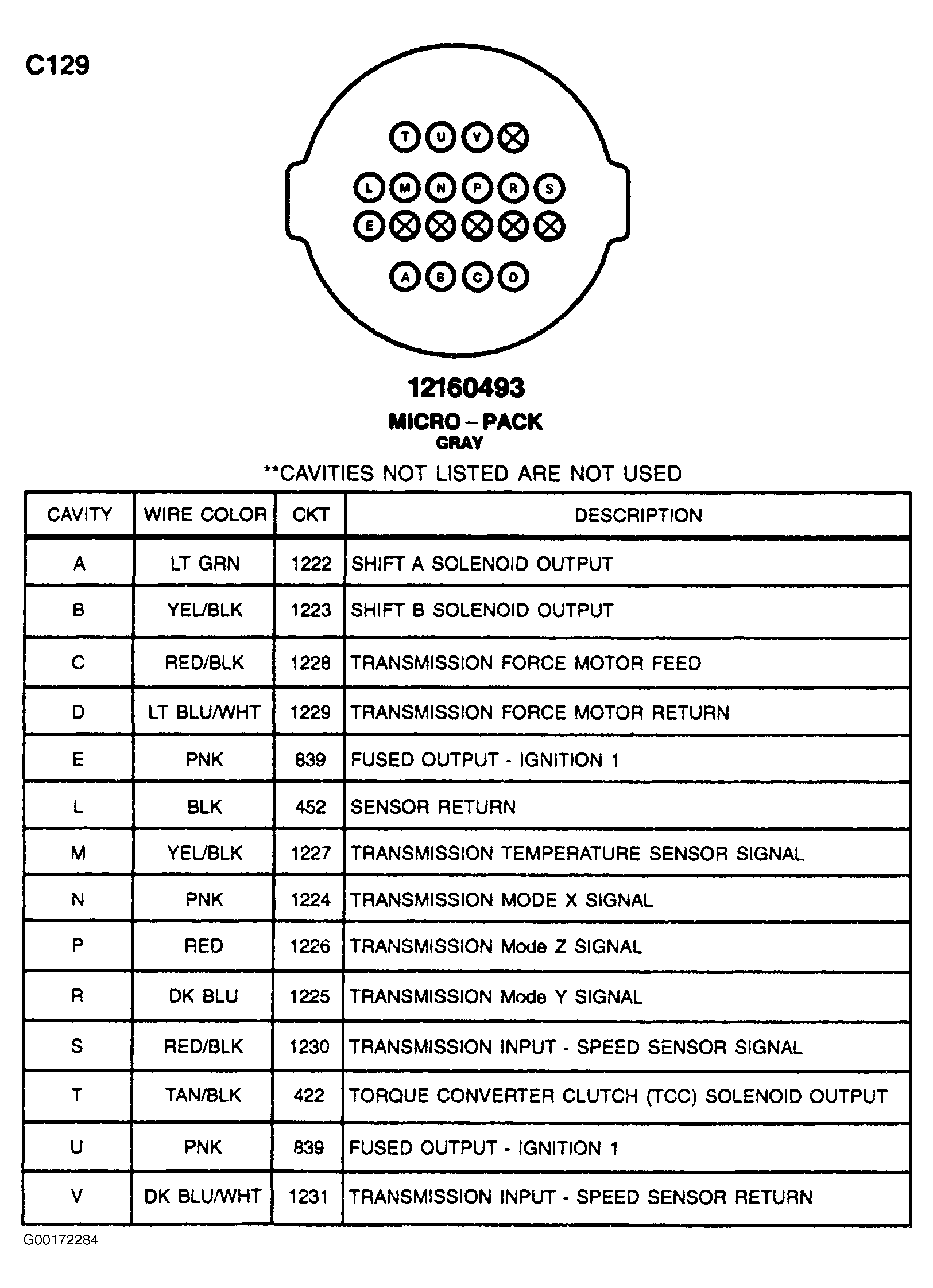

Fig 1: C129 - 20-Pin Connector (Gray)
G00172284Courtesy of GENERAL MOTORS CORP.
