Connectors C101 To C803: C200

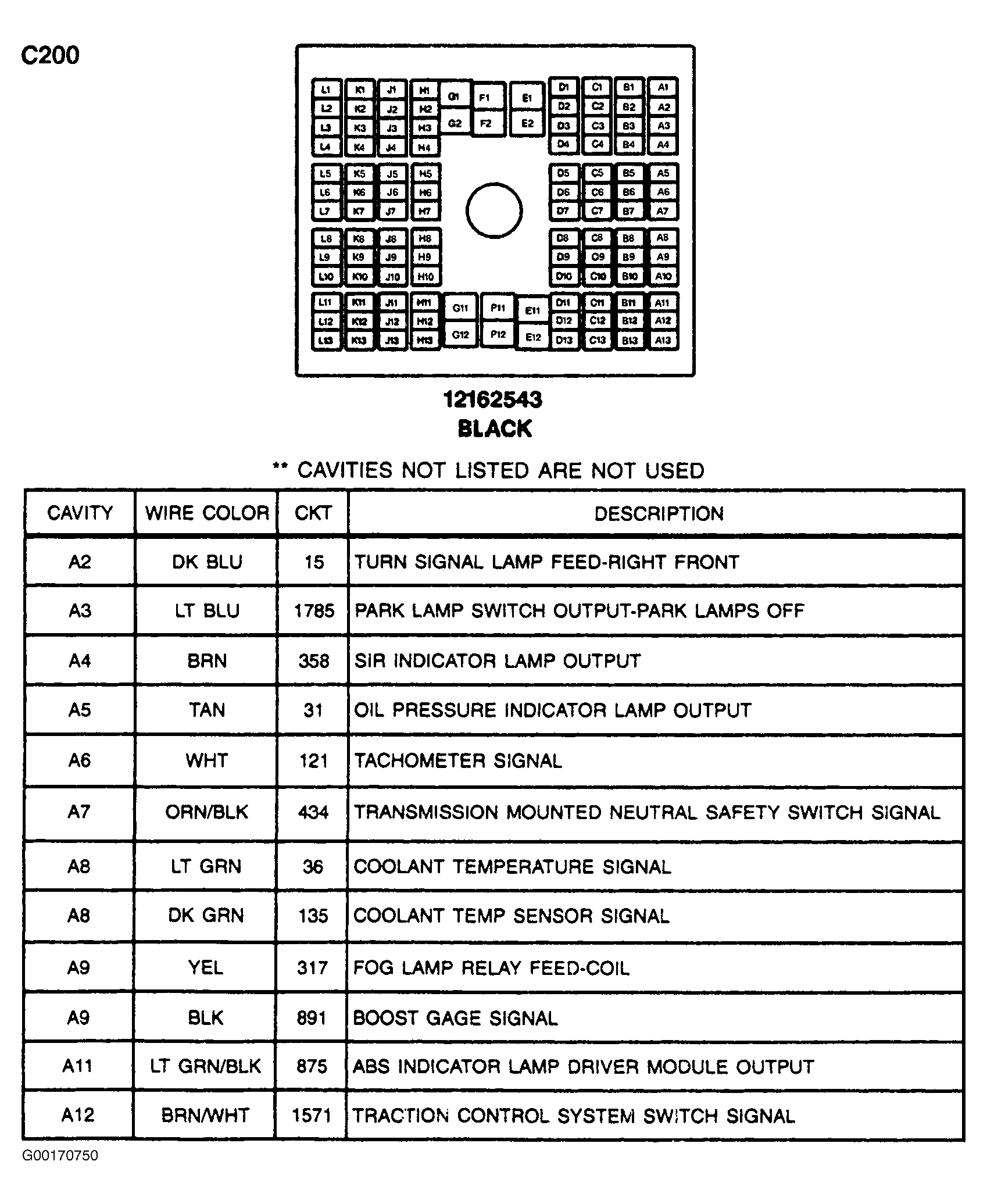

Fig 1: C200 - 116-Pin Connector (Black) - (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

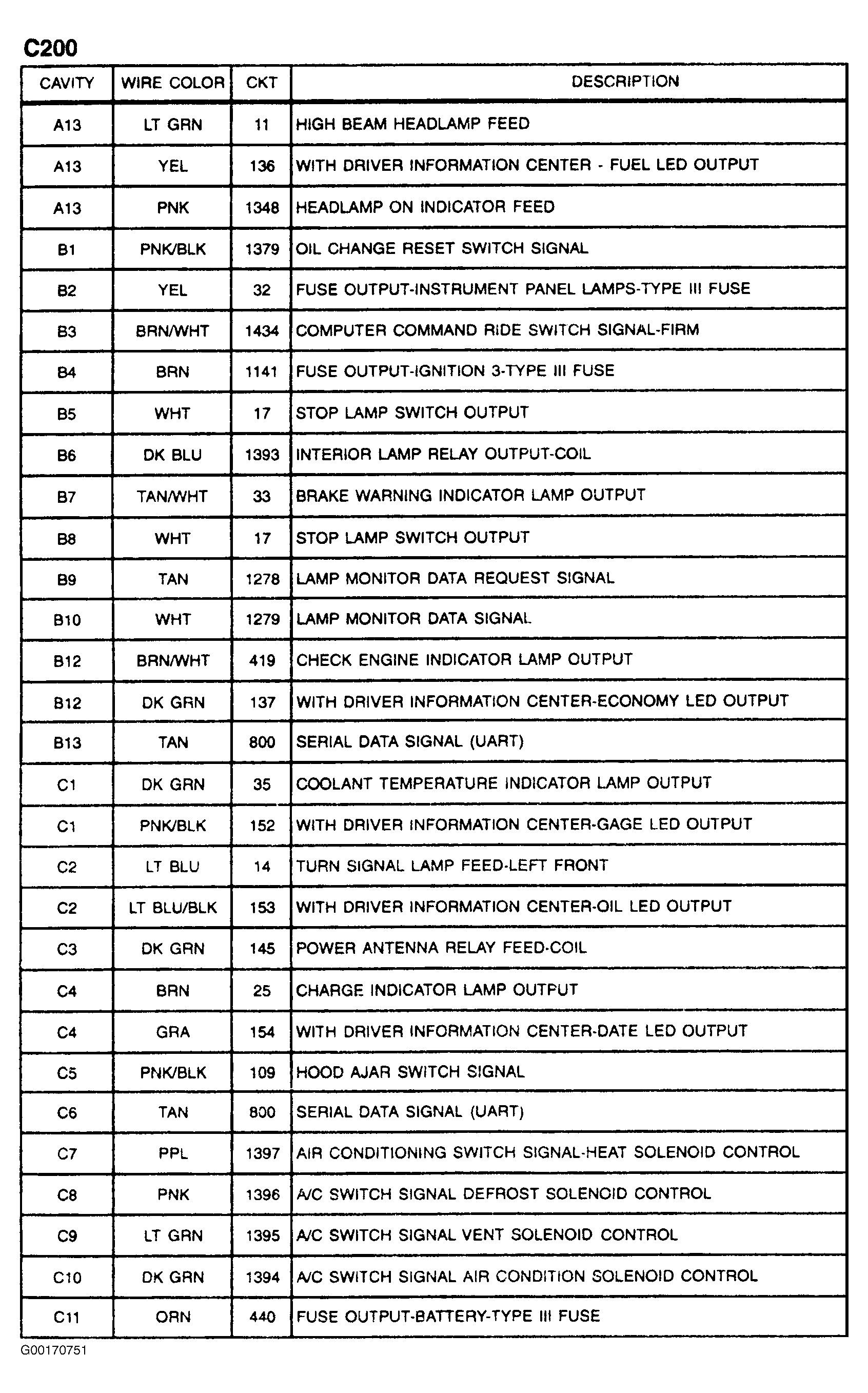

Fig 2: C200 - 116-Pin Connector (Black) - (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 3: C200 - 116-Pin Connector (Black) - (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

Fig 4: C200 - 116-Pin Connector (Black) - (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
