Lamp Control Module (LCM) C1 (OLDSMOBILE & PONTIAC)

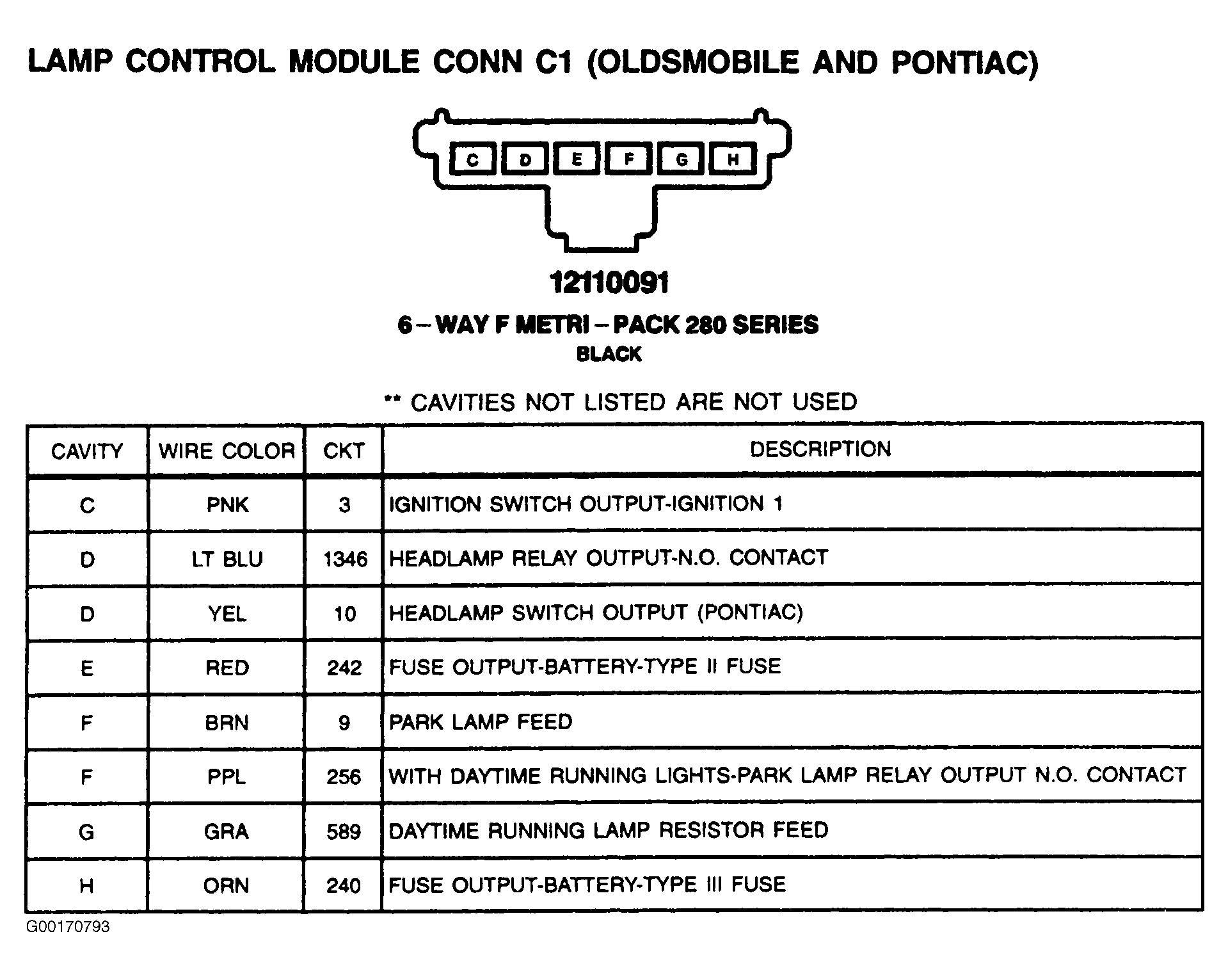

Fig 1: Lamp Control Module (LCM) C1 (Oldsmobile & Pontiac) - 6-Pin Connector (Black)
G00170793Courtesy of GENERAL MOTORS CORP.
