Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (3.8L VIN K)

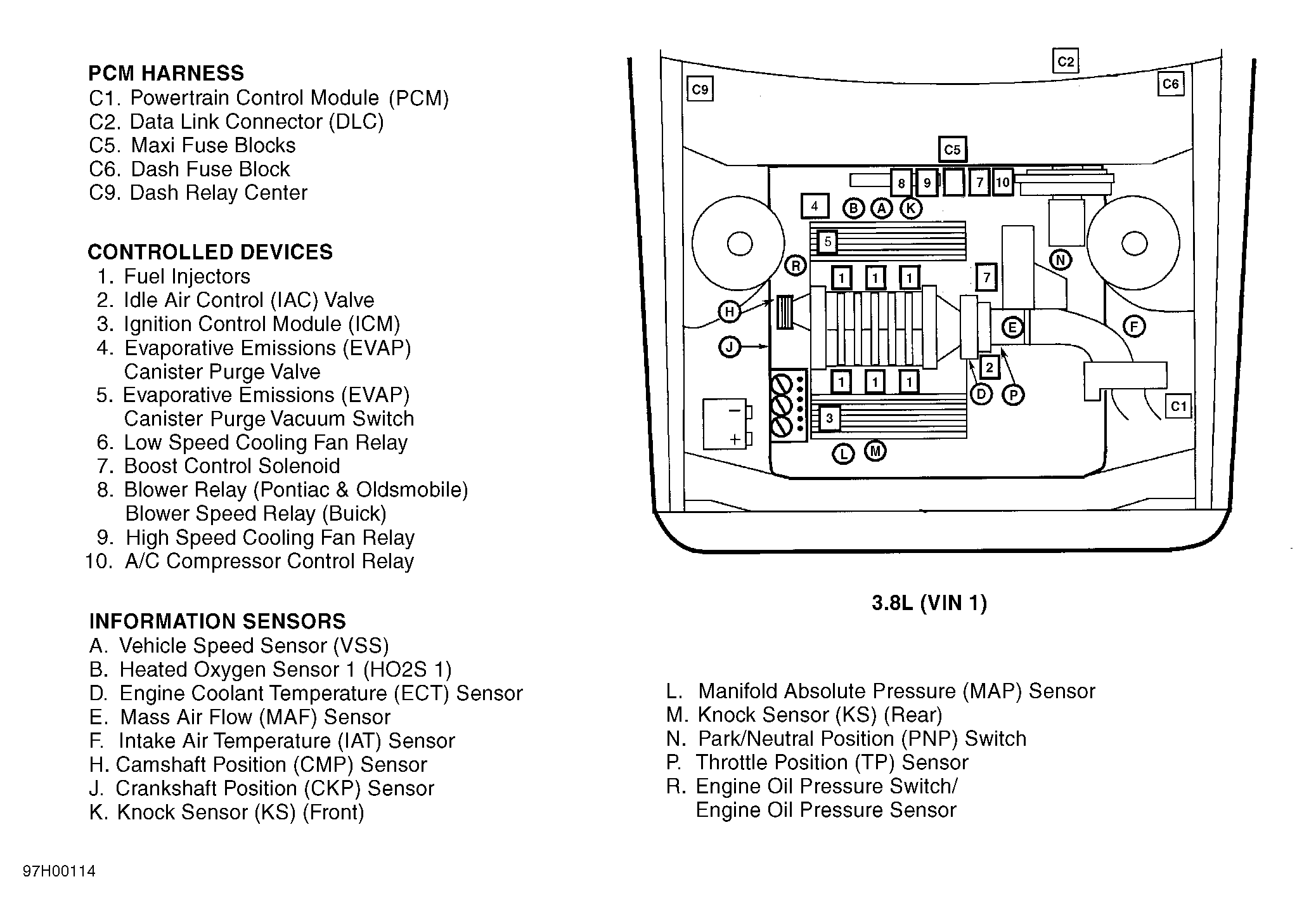

Fig 2: Engine Compartment (3.8L VIN 1)
