Adaptive Lamp Monitor Control Module Connectors
›
Adaptive Lamp Monitor Control Module C2
Adaptive Lamp Monitor Control Module C2

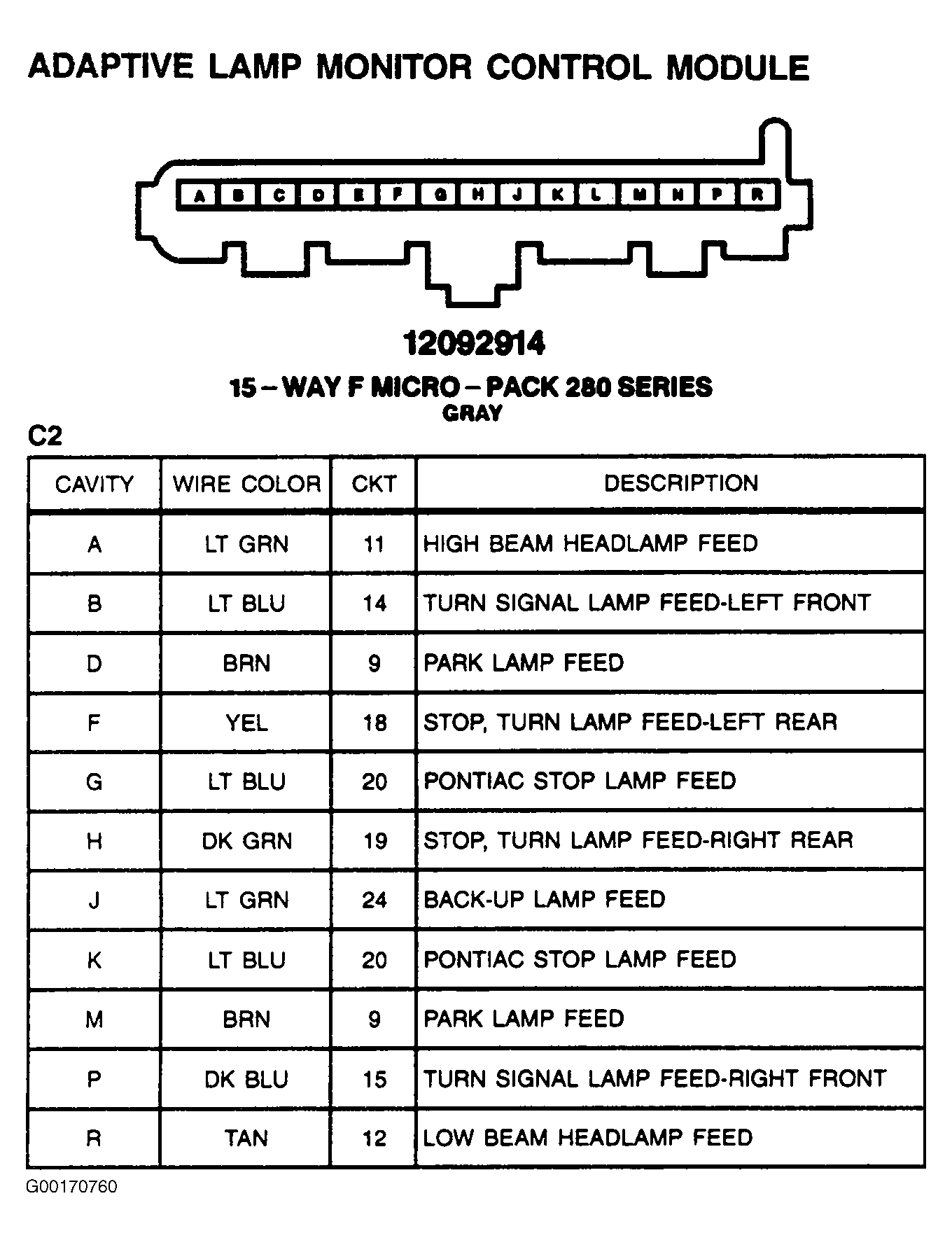

Fig 1: Adaptive Lamp Monitor Control Module C2 - 15-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
