Adaptive Lamp Monitor Control Module Connectors
›
Adaptive Lamp Monitor Control Module C3
Adaptive Lamp Monitor Control Module C3

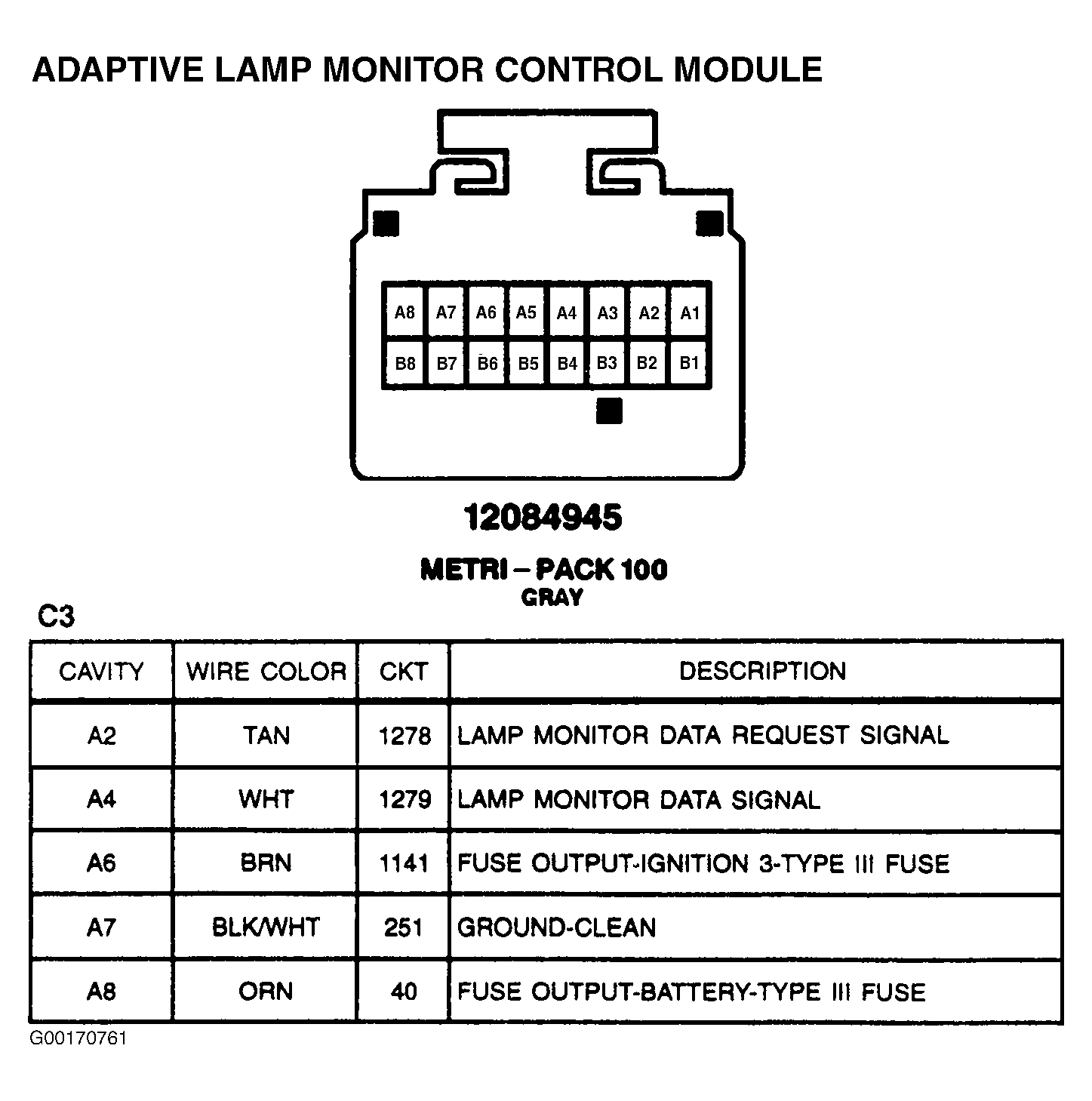

Fig 1: Adaptive Lamp Monitor Control Module C3 - 16-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
