Amplifier (With Speaker System 8)

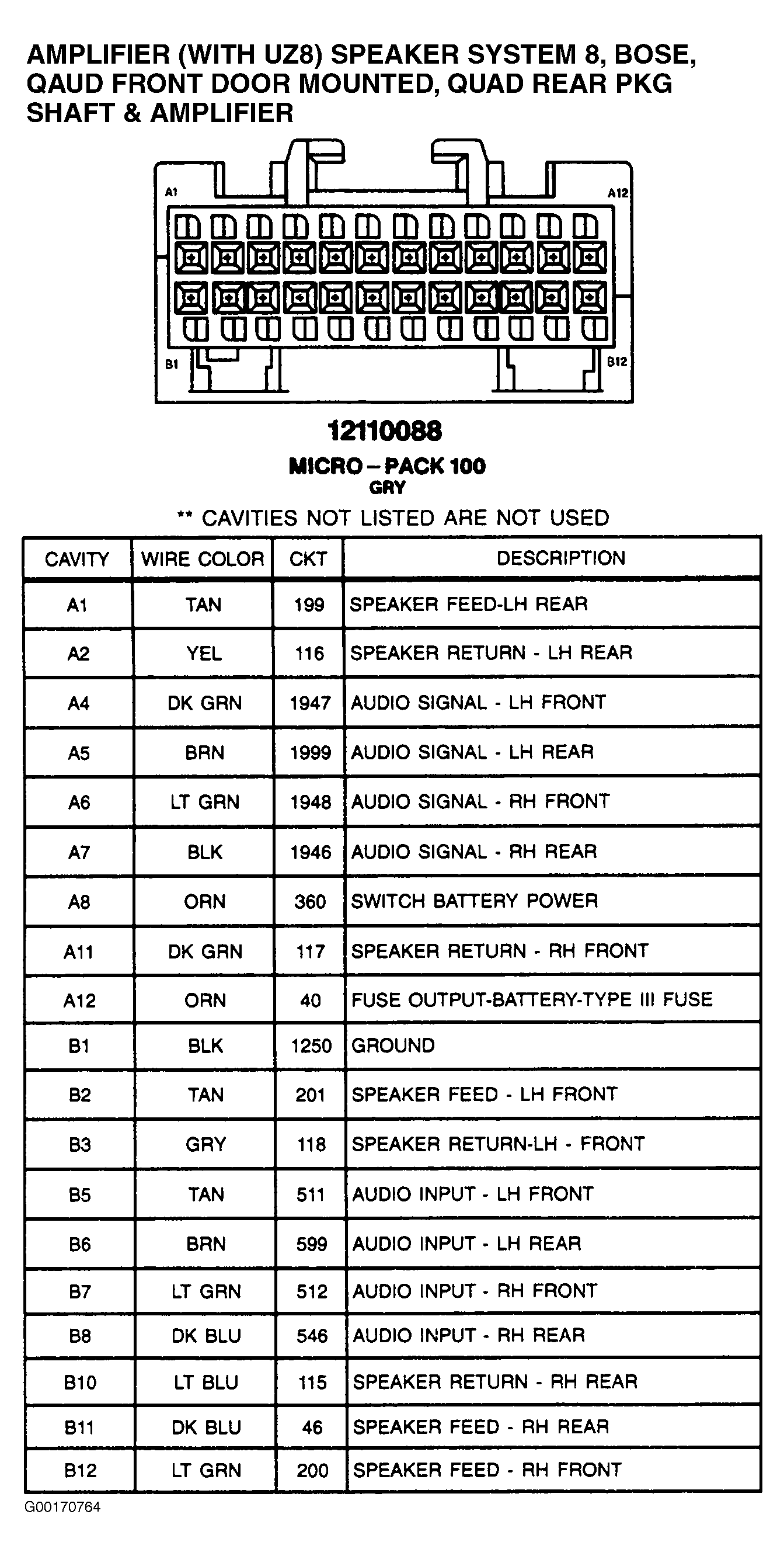

Fig 1: Amplifier (With Speaker System 8) - 24-Pin Connector (Gray)
G00170764Courtesy of GENERAL MOTORS CORP.
