Connectors C101 To C803: C213

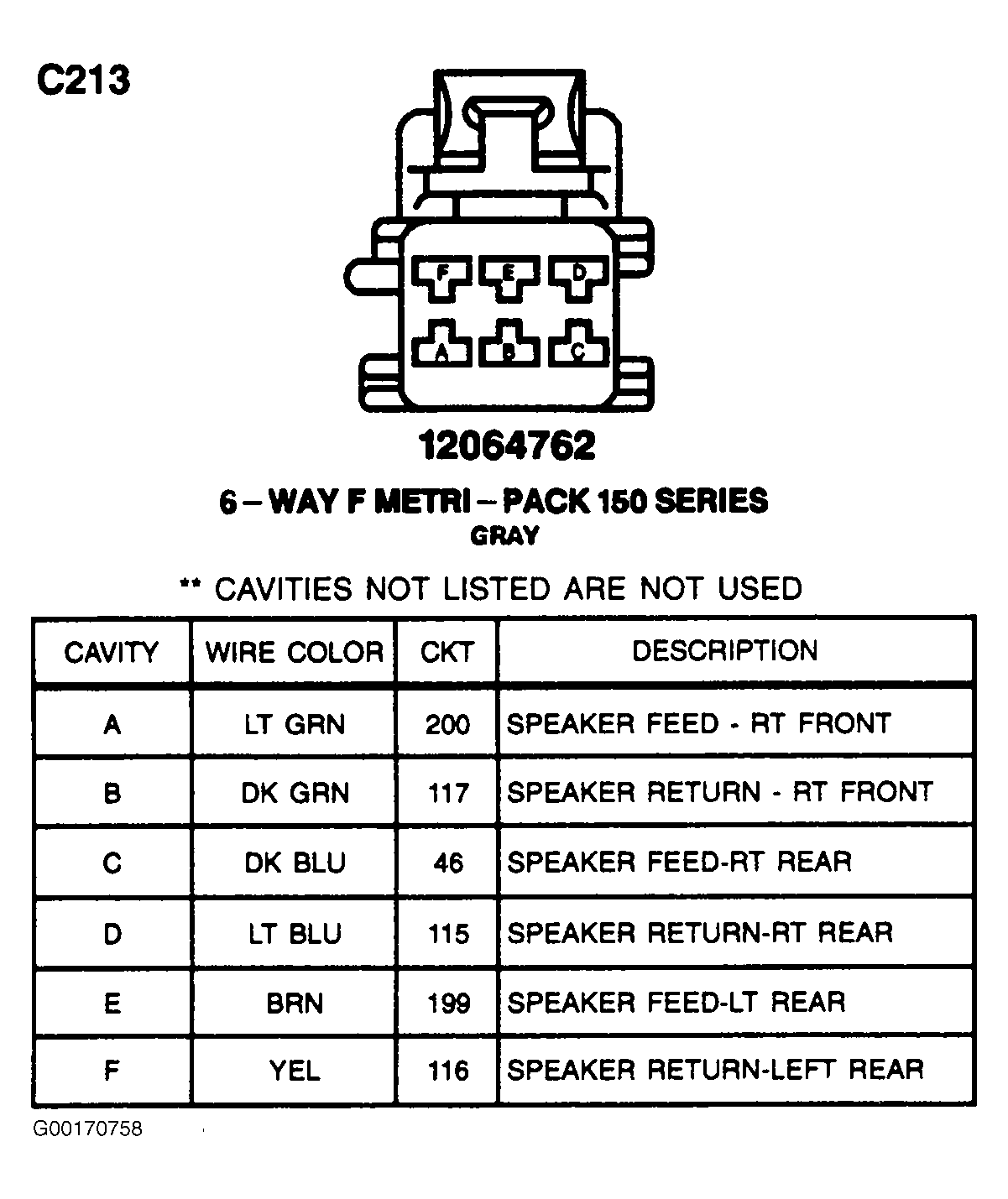

Fig 1: C213 - 6-Pin Connector (Gray)
G00170758Courtesy of GENERAL MOTORS CORP.
