HVAC Controller C1 (BUICK With Front Electronic Controls)

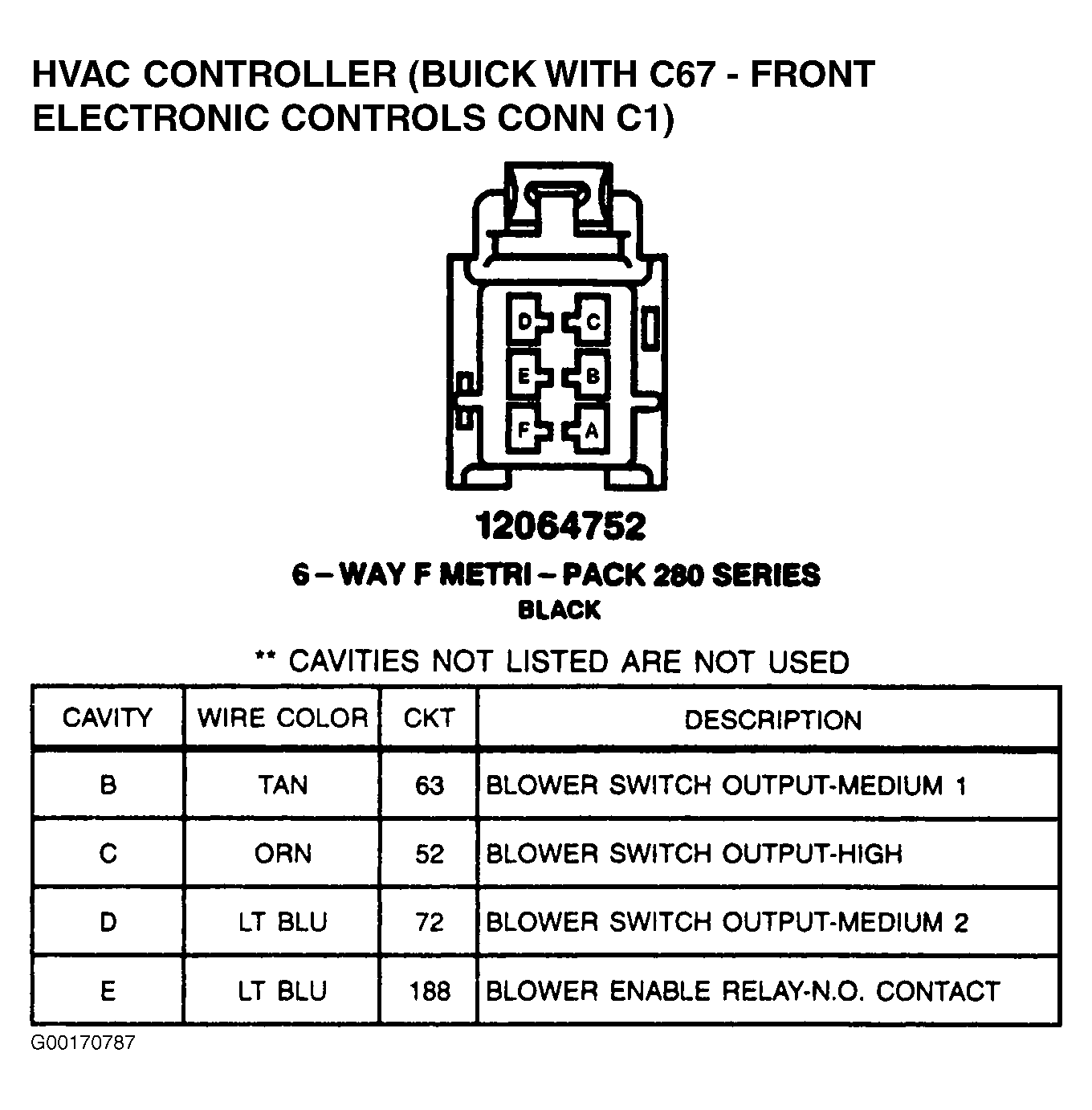

Fig 1: HVAC Controller C1 (Buick With Front Electronic Controls) - 6-Pin Connector (Black)
G00170787Courtesy of GENERAL MOTORS CORP.
