HVAC Programmer C2 (OLDSMOBILE With Automatic Temperature Control)
HVAC Programmer C2 (OLDSMOBILE With Automatic Temperature Control)

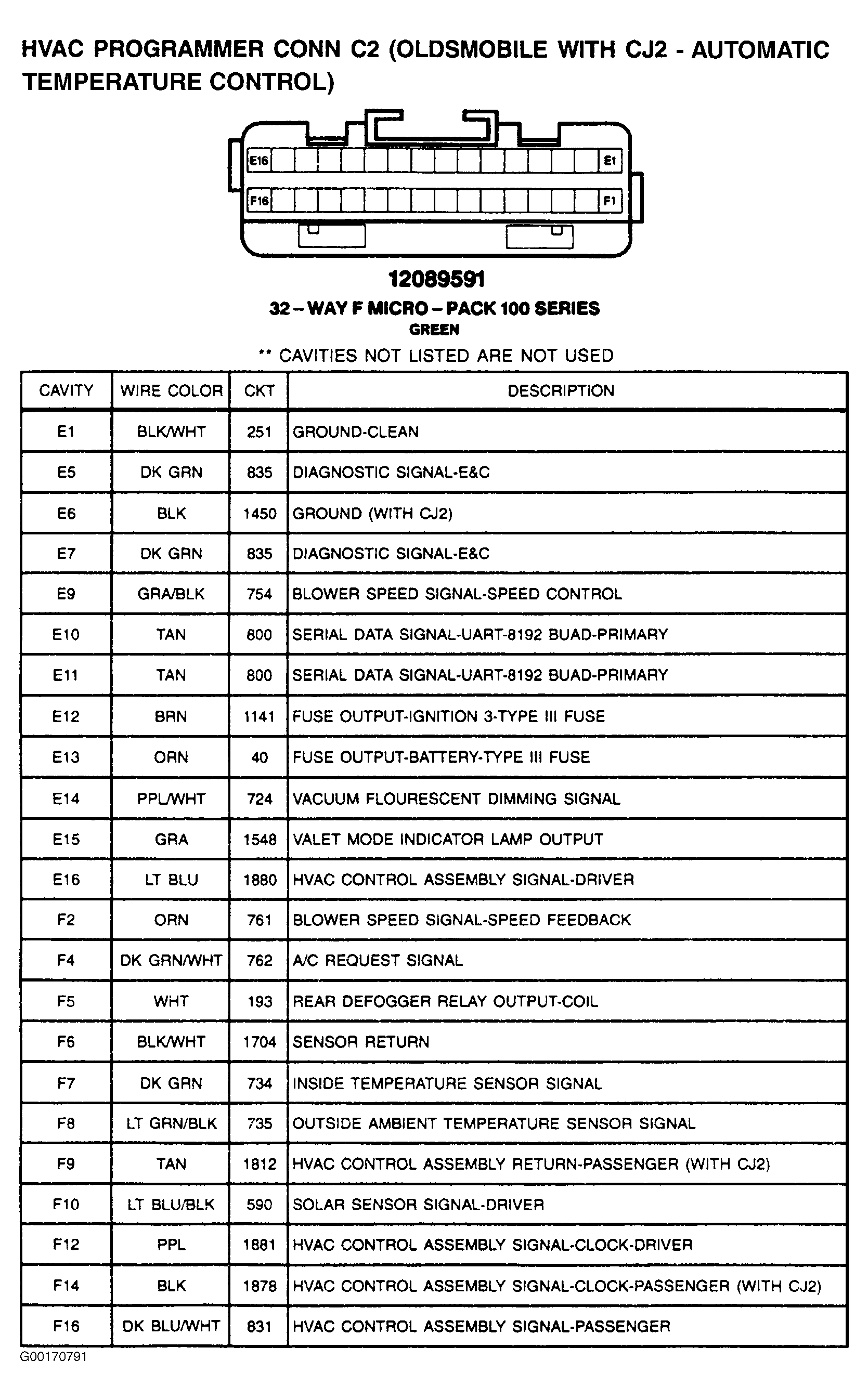

Fig 1: HVAC Programmer C2 (Oldsmobile With Automatic Temperature Control) - 32-Pin Connector (Green)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
