Headlamp Switch (OLDSMOBILE)

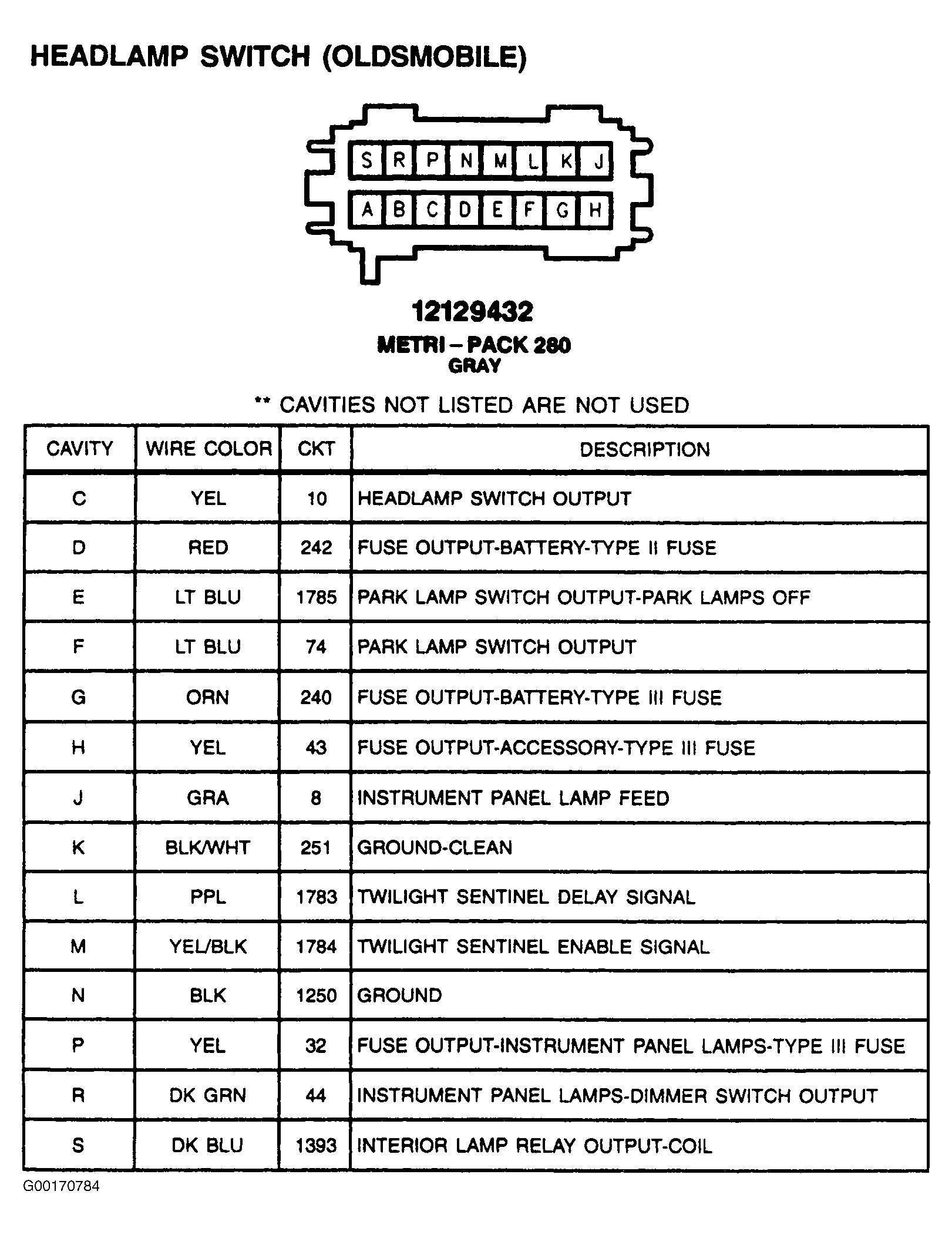

Fig 1: Headlamp Switch (Oldsmobile) - 16-Pin Connector (Gray)
G00170784Courtesy of GENERAL MOTORS CORP.
