Connector Terminal Identification
›
Headlamp Switch Connectors
›
Headlamp Switch (PONTIAC)
Headlamp Switch (PONTIAC)

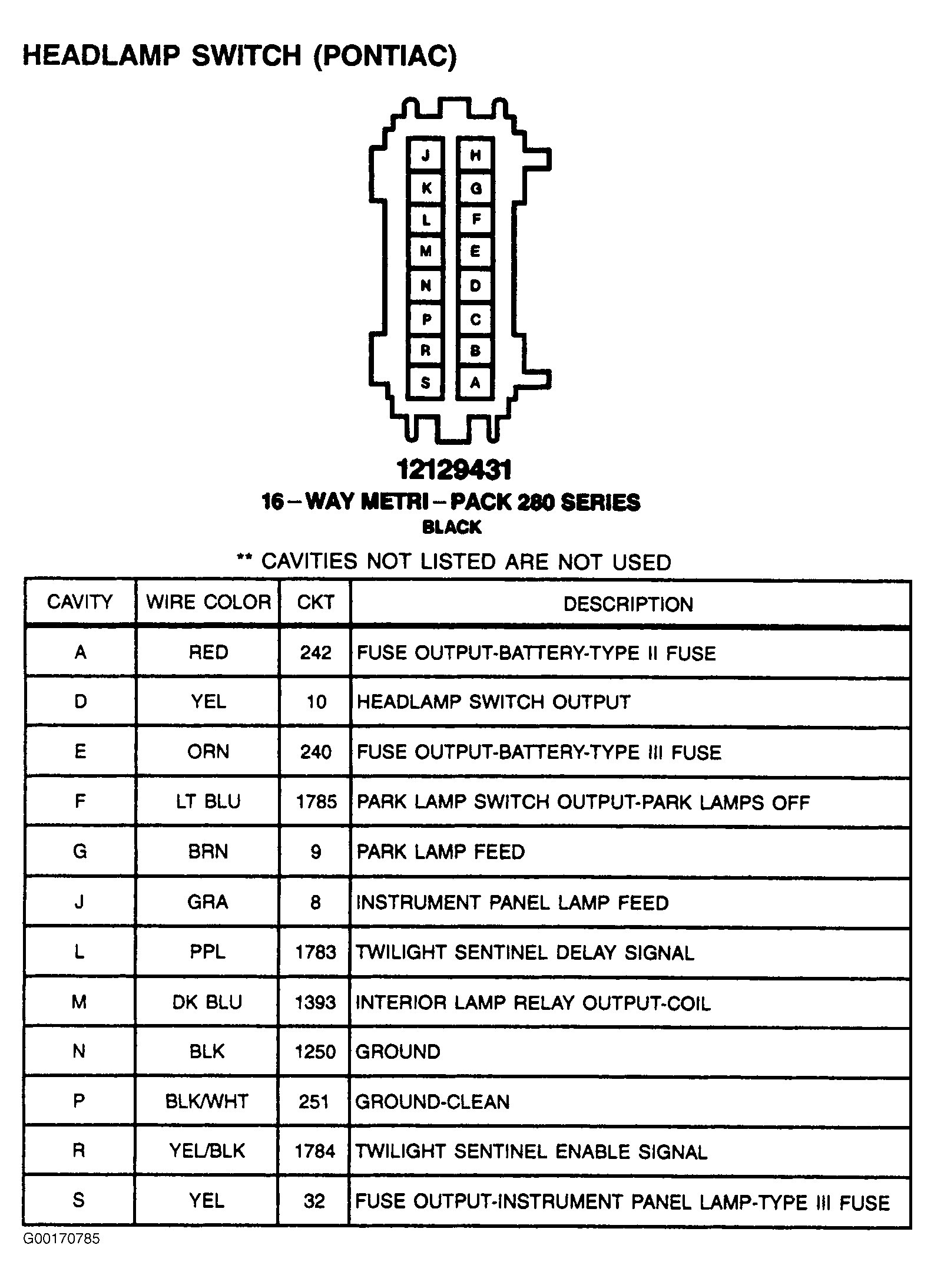

Fig 1: Headlamp Switch (Pontiac) - 16-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
