Heater & A/C Control Assembly (PONTIAC With Front Auto, Electronic Controls Only)

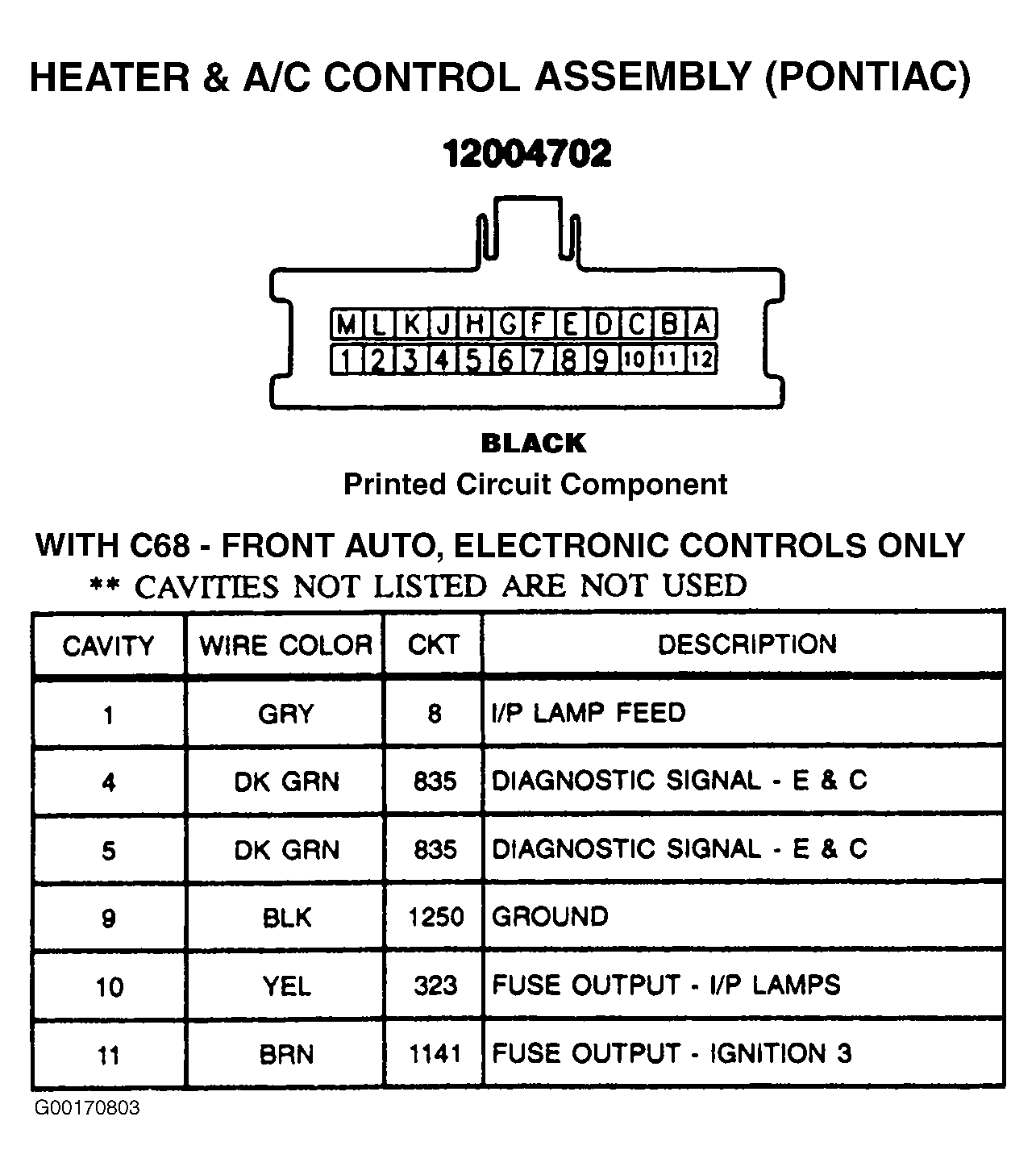

Fig 1: Heater & A/C Control Assembly (Pontiac With Front Auto, Electronic Controls Only) - 24-Pin Connector (Black)
G00170803Courtesy of GENERAL MOTORS CORP.
