Lamp Control Module (LCM) Connectors
›
Lamp Control Module (LCM) C2 (BUICK)
Lamp Control Module (LCM) C2 (BUICK)

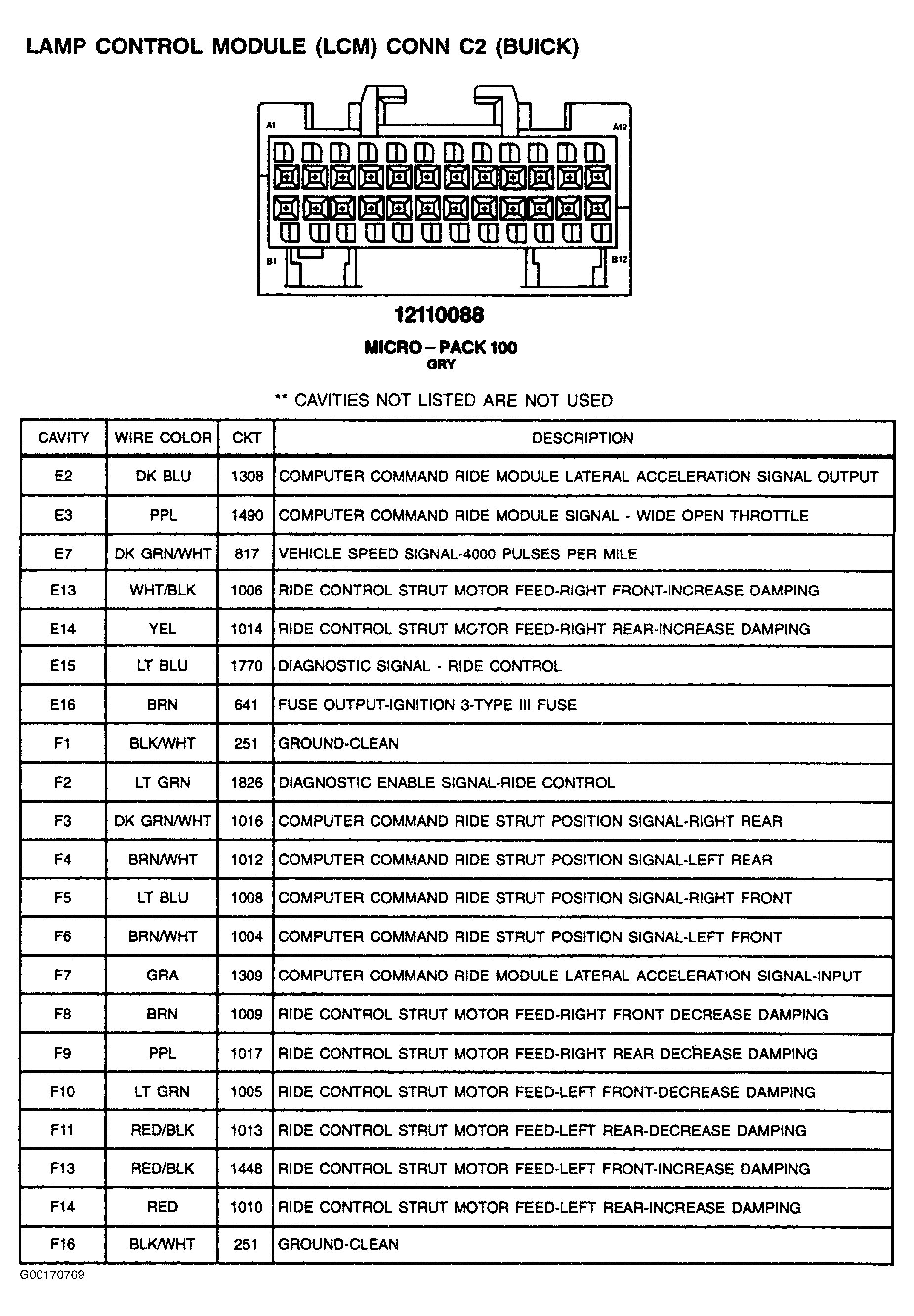

Fig 1: Lamp Control Module (LCM) C2 (Buick) - 24-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
