Connector Terminal Identification
›
Lamp Dimmer Switch (BUICK)
Lamp Dimmer Switch (BUICK)

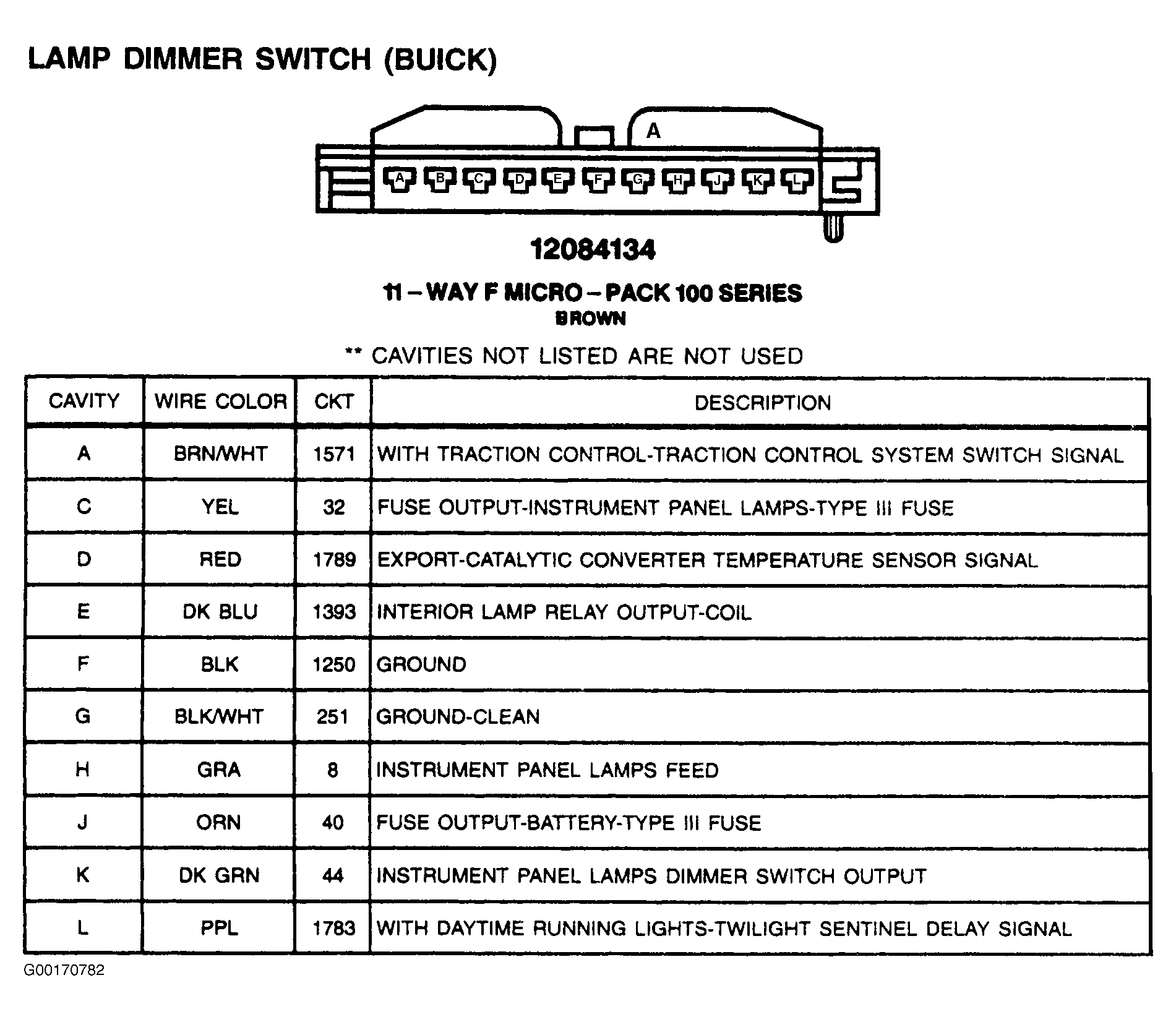

Fig 1: Lamp Dimmer Switch (Buick) - 11-Pin Connector, Brown
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
