Memory Seat/Memory Mirror Control Module C2

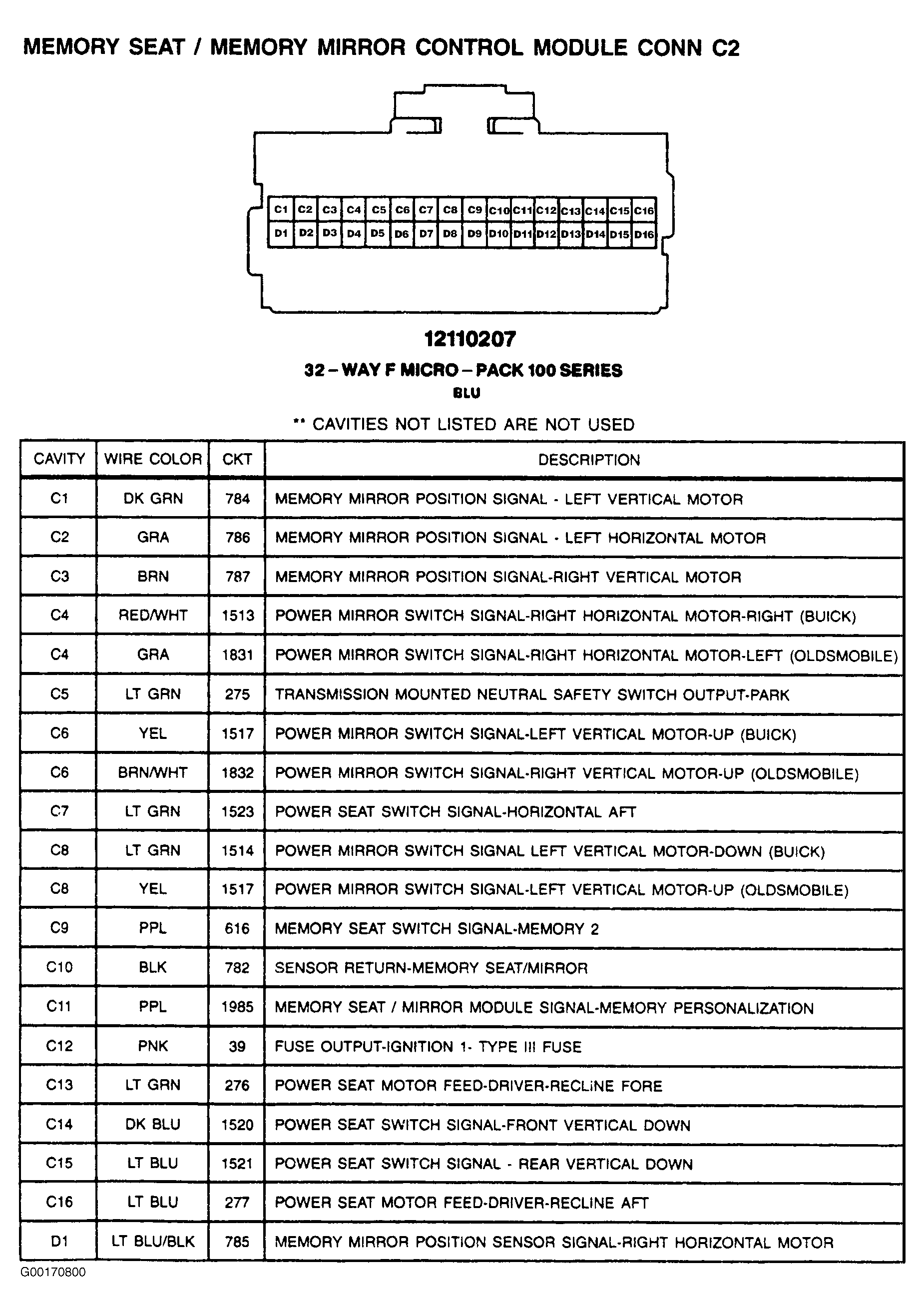

Fig 1: Memory Seat/Memory Mirror Control Module C2 - 32-Pin Connector (Blue) - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

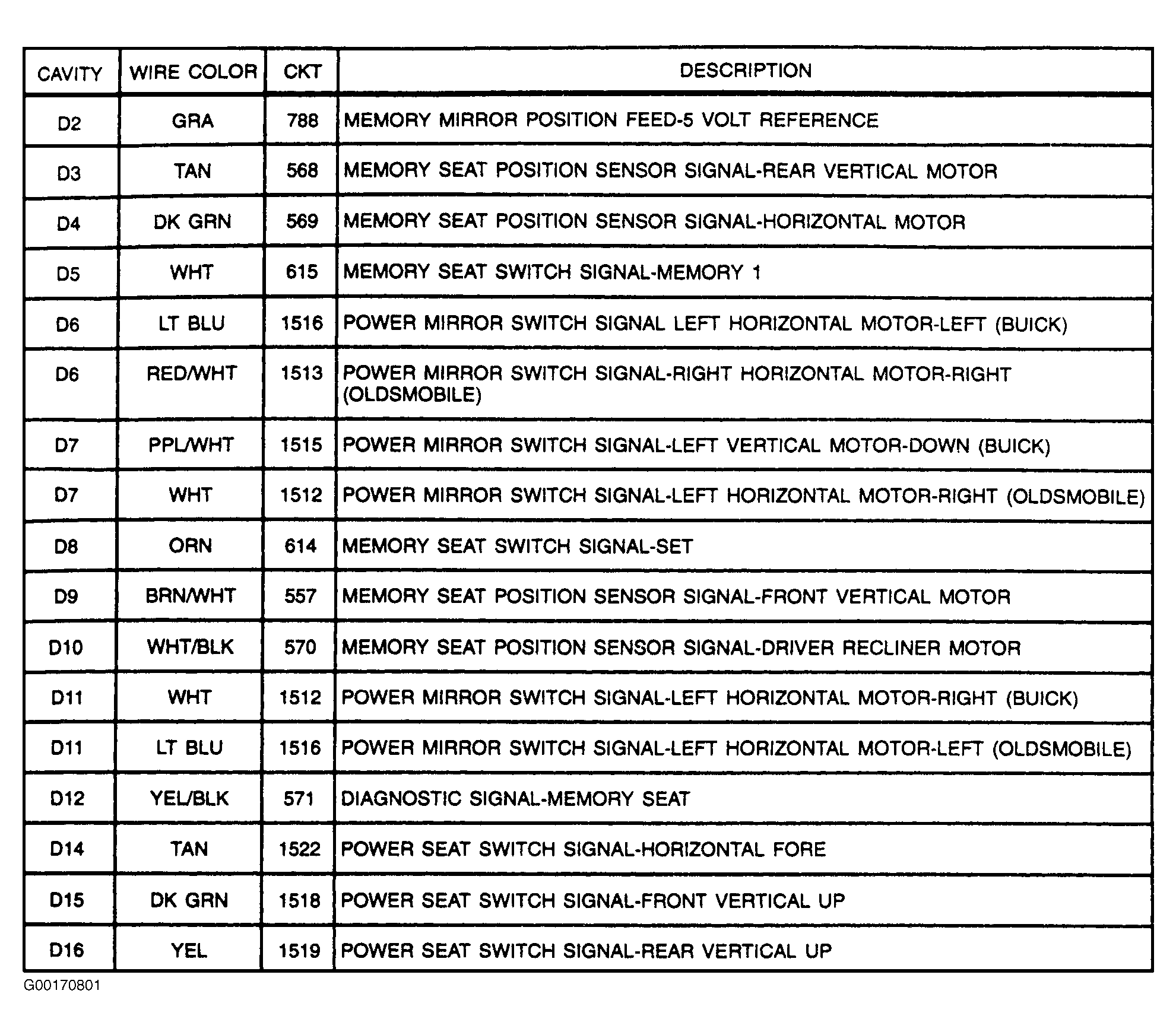

Fig 2: Memory Seat/Memory Mirror Control Module C2 - 32-Pin Connector (Blue) - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
