Park Neutral Position (PNP) Switch C1 & C2

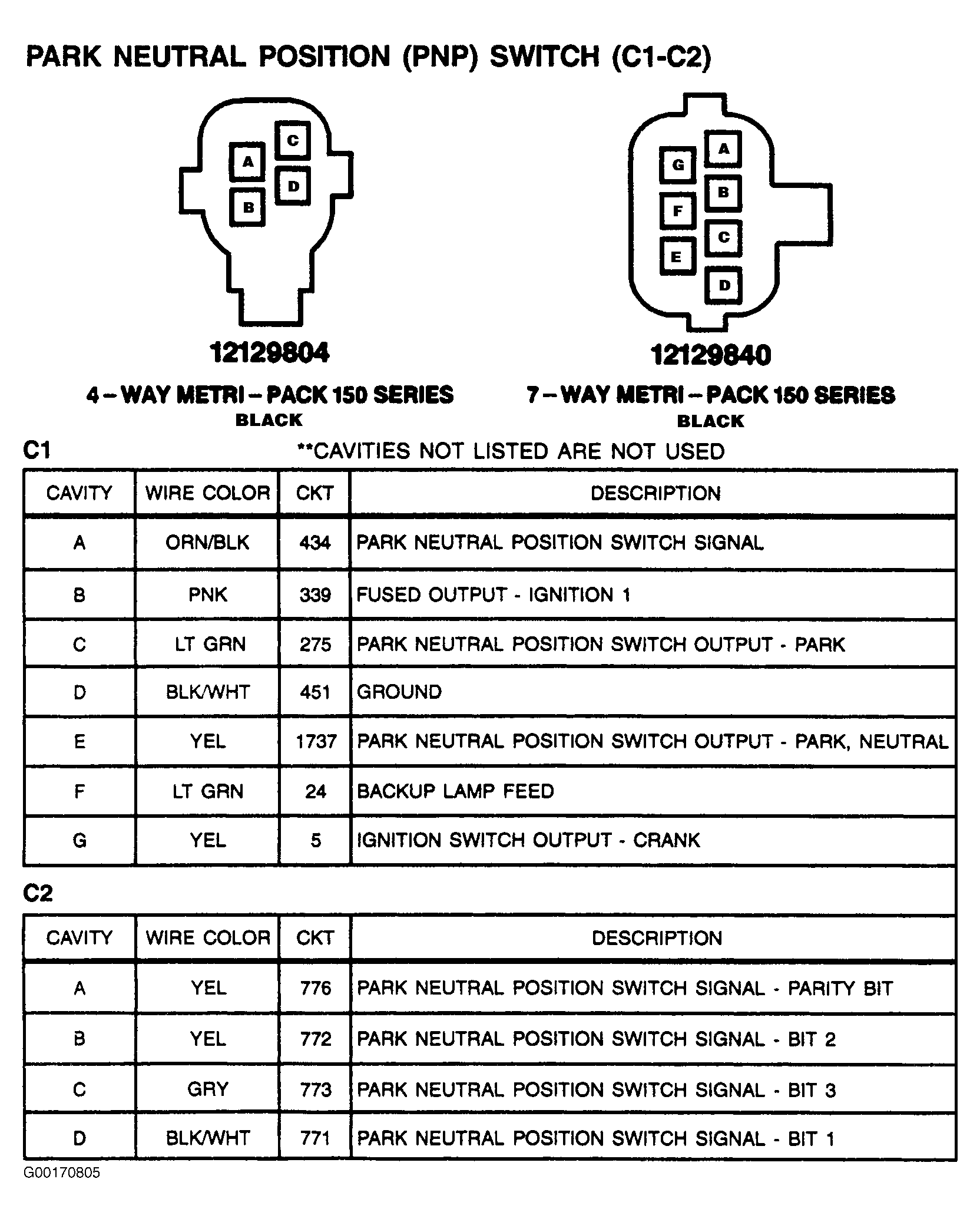

Fig 1: Park Neutral Position (PNP) Switch C1 & C2 - 4-Pin Connector (Black) & 7-Pin Connector (Black)
G00170805Courtesy of GENERAL MOTORS CORP.
