Home › Oldsmobile › 1997 › Regency › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Pass-Key(R) II Decoder Module

Pass-Key(R) II Decoder Module

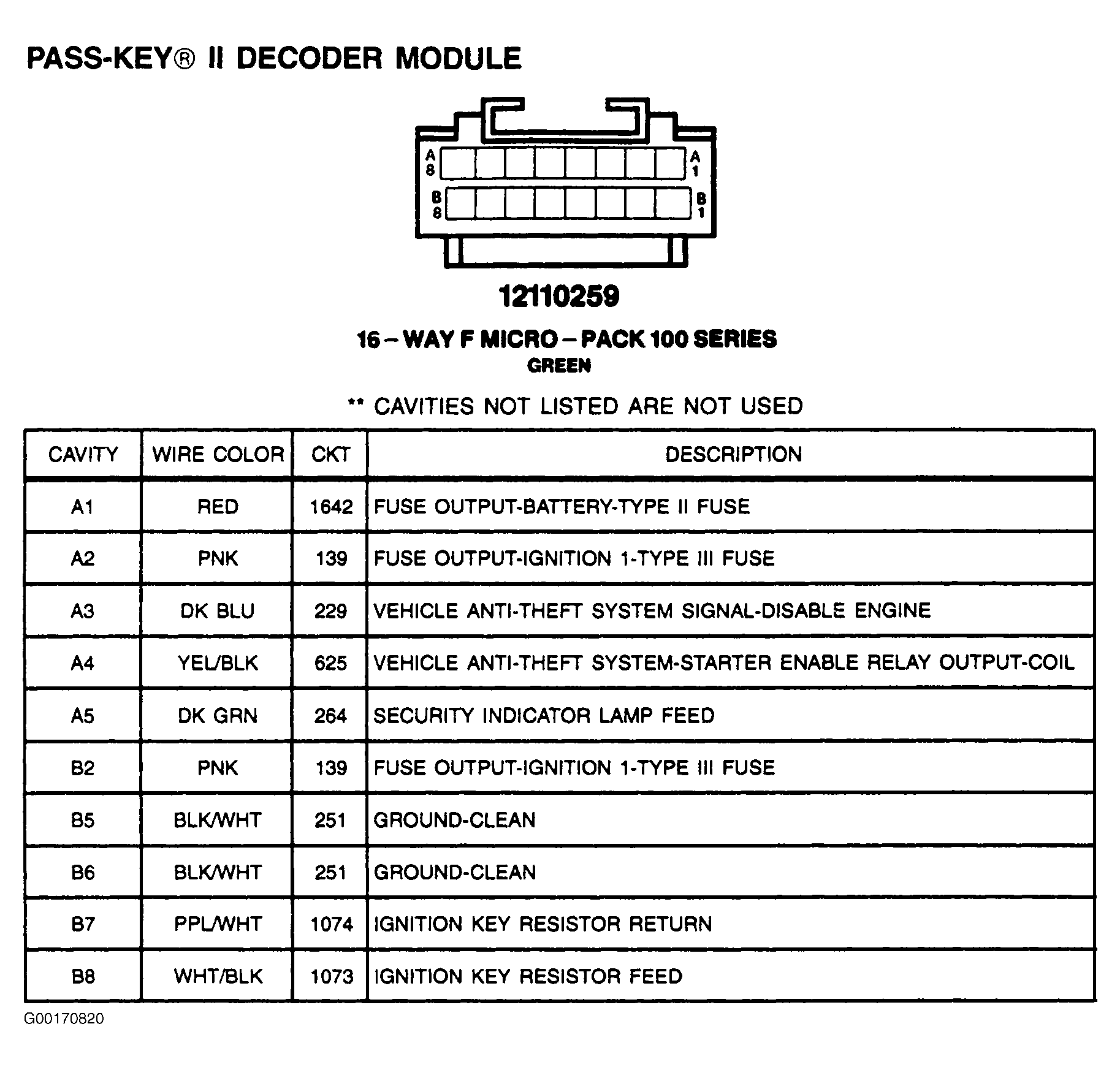

Fig 1: Pass-Key(R) II Decoder Module - 16-Pin Connector (Green)
G00170820Courtesy of GENERAL MOTORS CORP.
