Power Window Master Switch Assembly

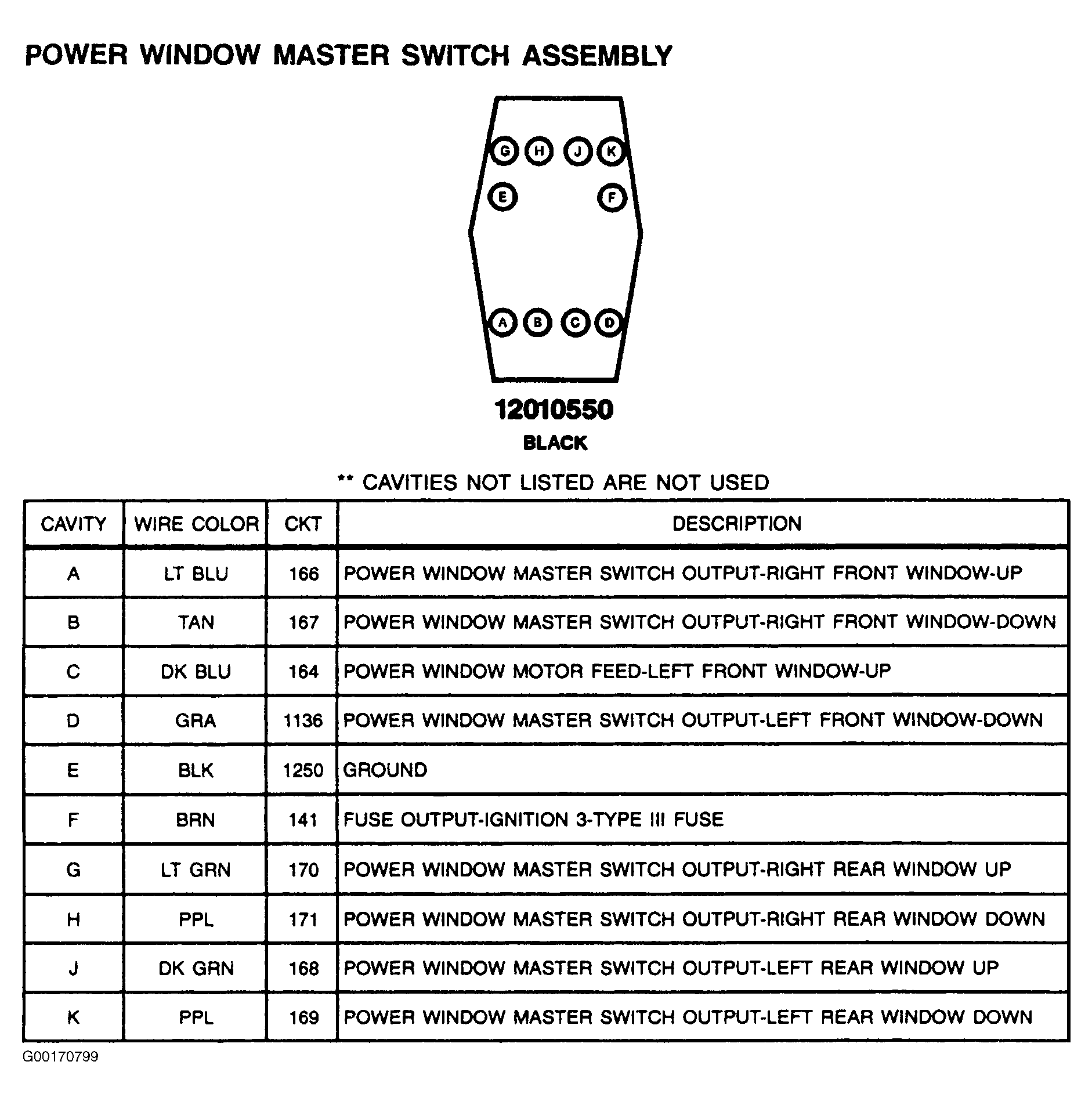

Fig 1: Power Window Master Switch Assembly - 10-Pin Connector (Black)
G00170799Courtesy of GENERAL MOTORS CORP.
