Connector Terminal Identification
›
Radio Connectors
›
Radio C1 (PONTIAC)
Radio C1 (PONTIAC)

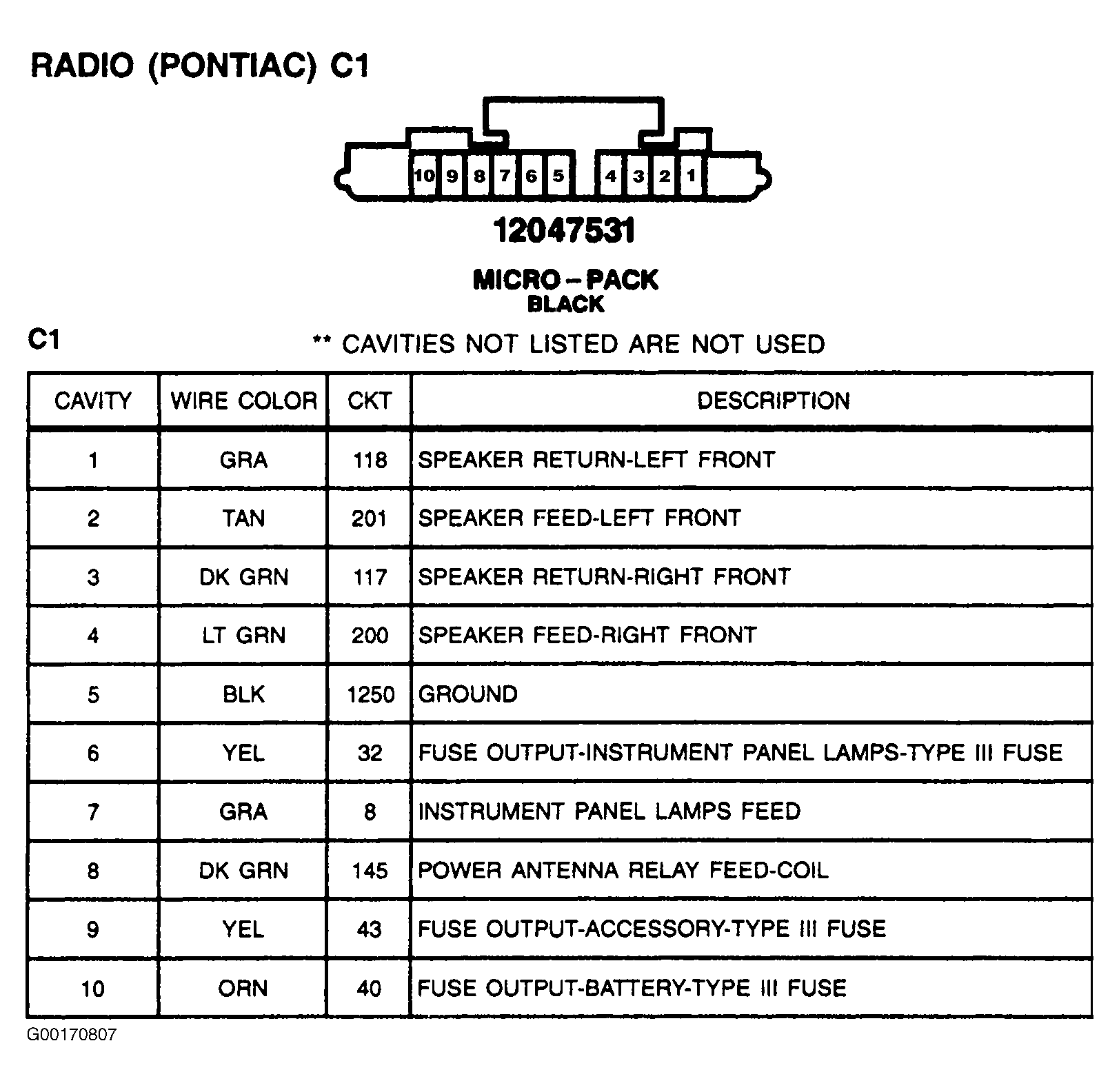

Fig 1: Radio C1 (Pontiac) - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
