Engine Control Systems Tests W/Codes
›
Connector Identification
›
Pcm Connector End Views
›

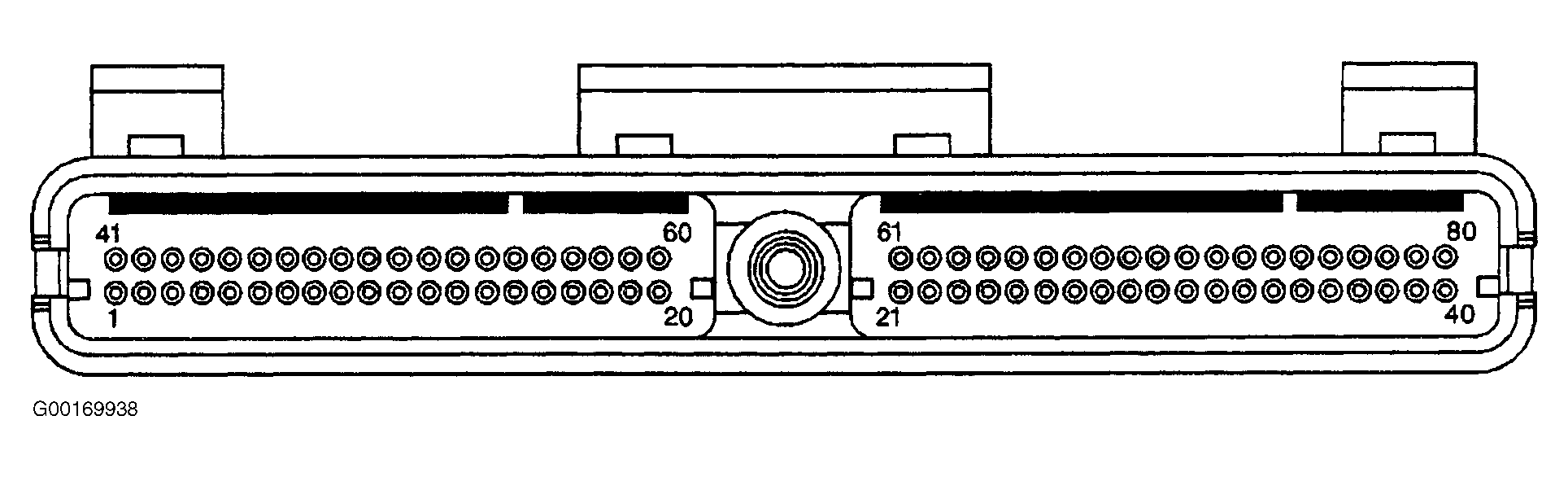

PCM Connector C2 (Clear)
PCM Connector C2 (Clear)
For terminal identification, see
Figure
.
Fig 1: PCM 80-Pin Connector C2 (Clear) - Legend (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

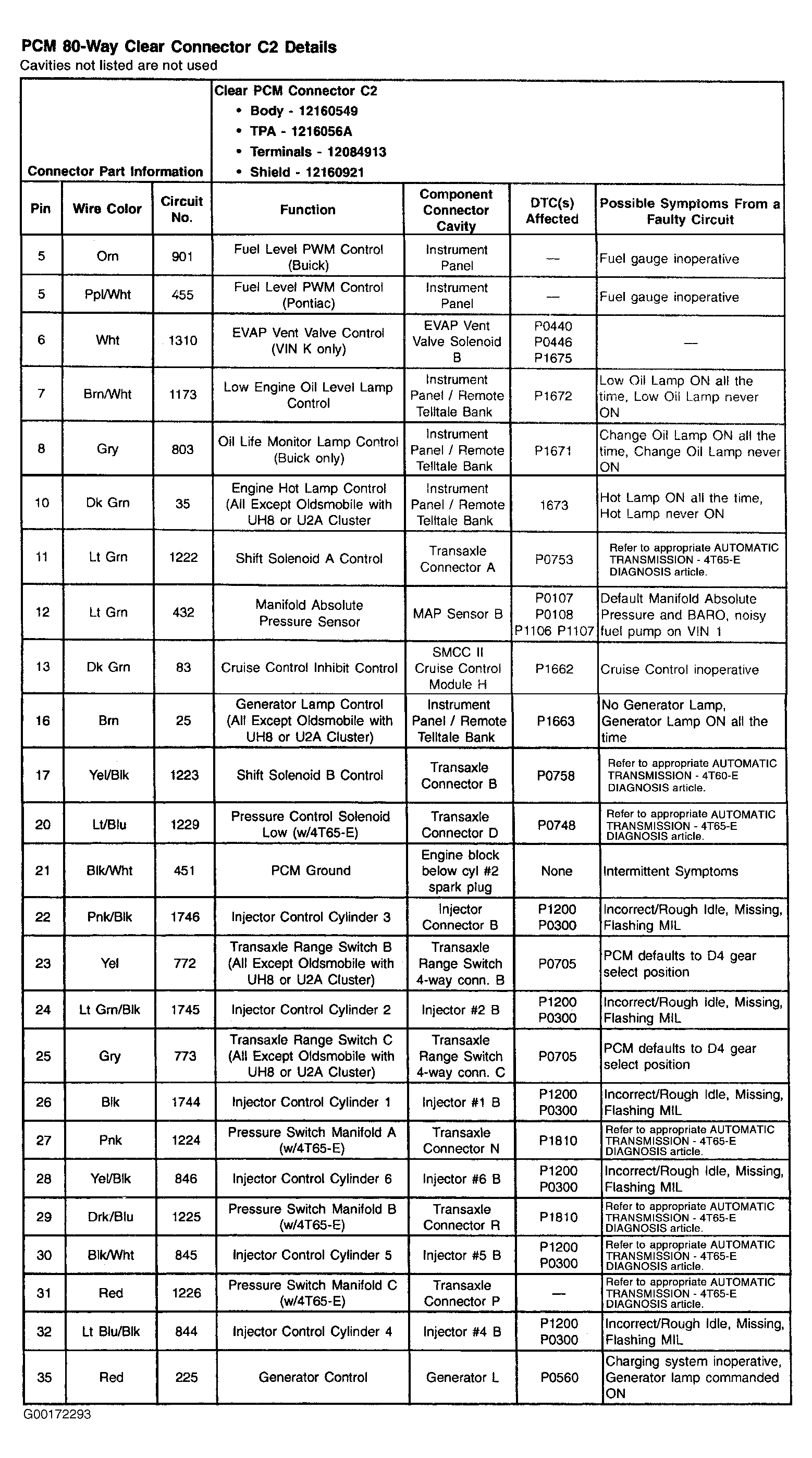

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
