Removal & Installation

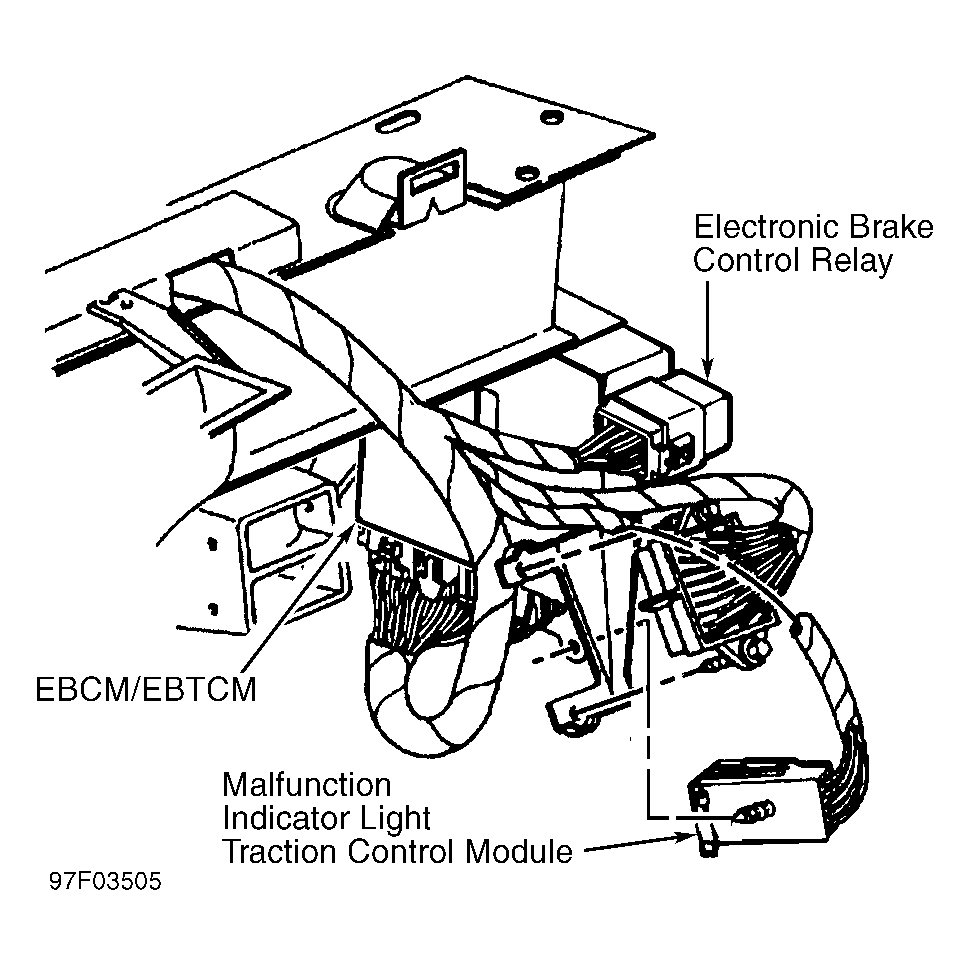

Malfunction indicator light traction control module is located behind left side of instrument panel, on EBCM/EBTCM bracket. See Fig 1 . Disconnect negative battery cable. Remove lower sound insulator panel under steering column. Release malfunction indicator light traction control module from EBCM/EBTCM bracket. Remove malfunction indicator light traction control module with Black connector from instrument panel harness, near EBCM/EBTCM. To install, reverse removal procedure.
