"H" Body

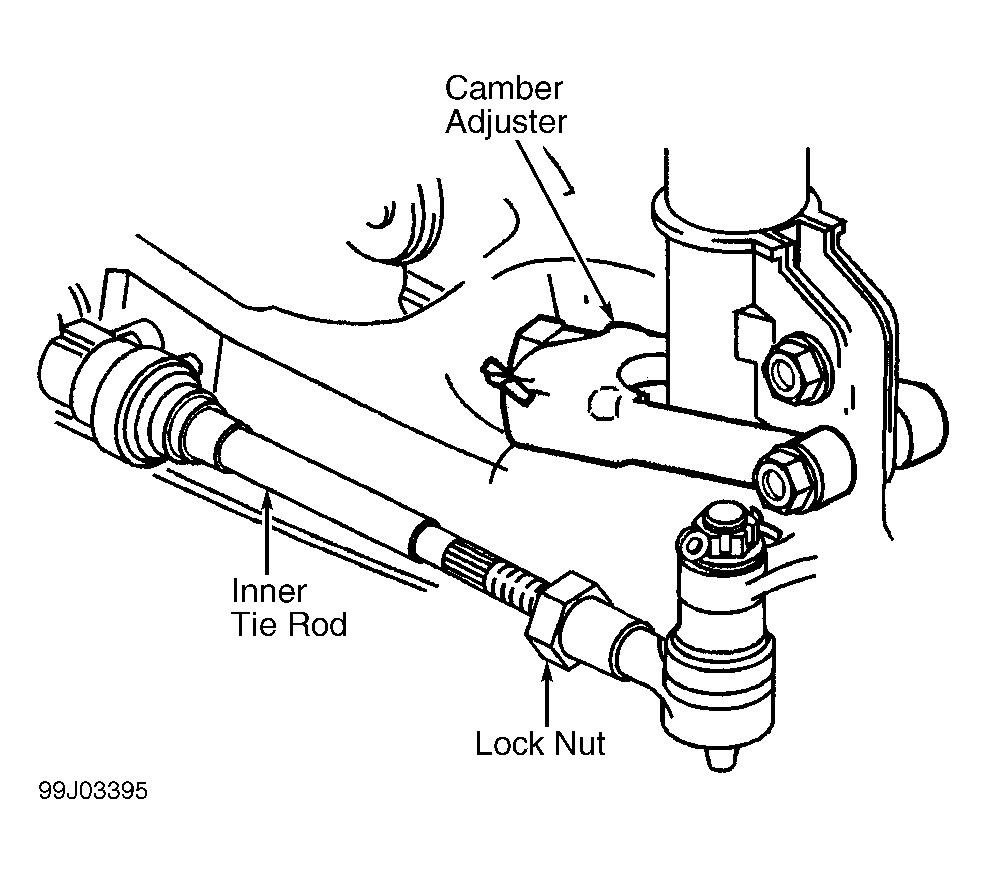

Loosen lock nut on tie rod. See Figure. Rotate inner tie rod as necessary until full toe-out position is obtained, then rotate inner tie rod until rear toe-in is as specified. See WHEEL ALIGNMENT SPECIFICATIONS  table. Tighten lock nut to specification. See TORQUE SPECIFICATIONS  table.
