Driven Sprocket Support Assembly: Disassembly

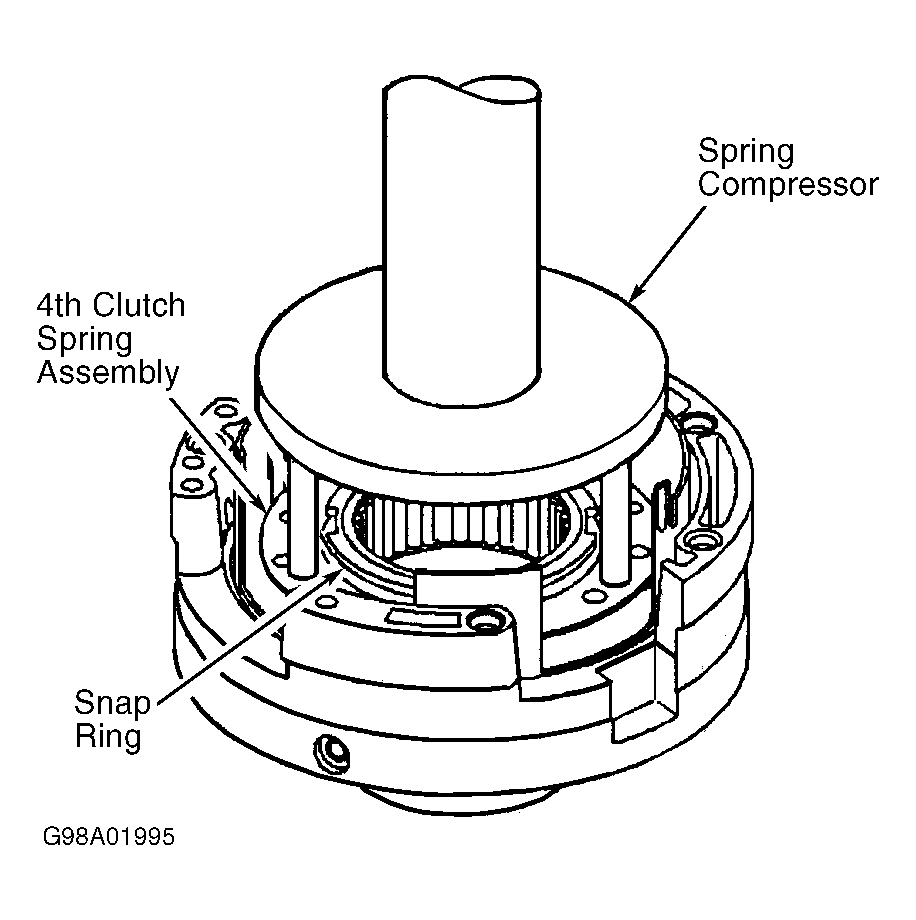

Use appropriate spring compressor to compress 4th clutch spring assembly. Remove snap ring from driven sprocket support assembly. See Figure. Remove spring compressor, spring assembly and 4th clutch piston from driven sprocket support assembly. Remove outer seal from piston. Remove inner seal from driven sprocket support assembly hub. Remove oil seal rings and 4-lobed ring seal from driven sprocket support assembly. See Figure.
