Instrument Panel Fuse Block
NOTE:

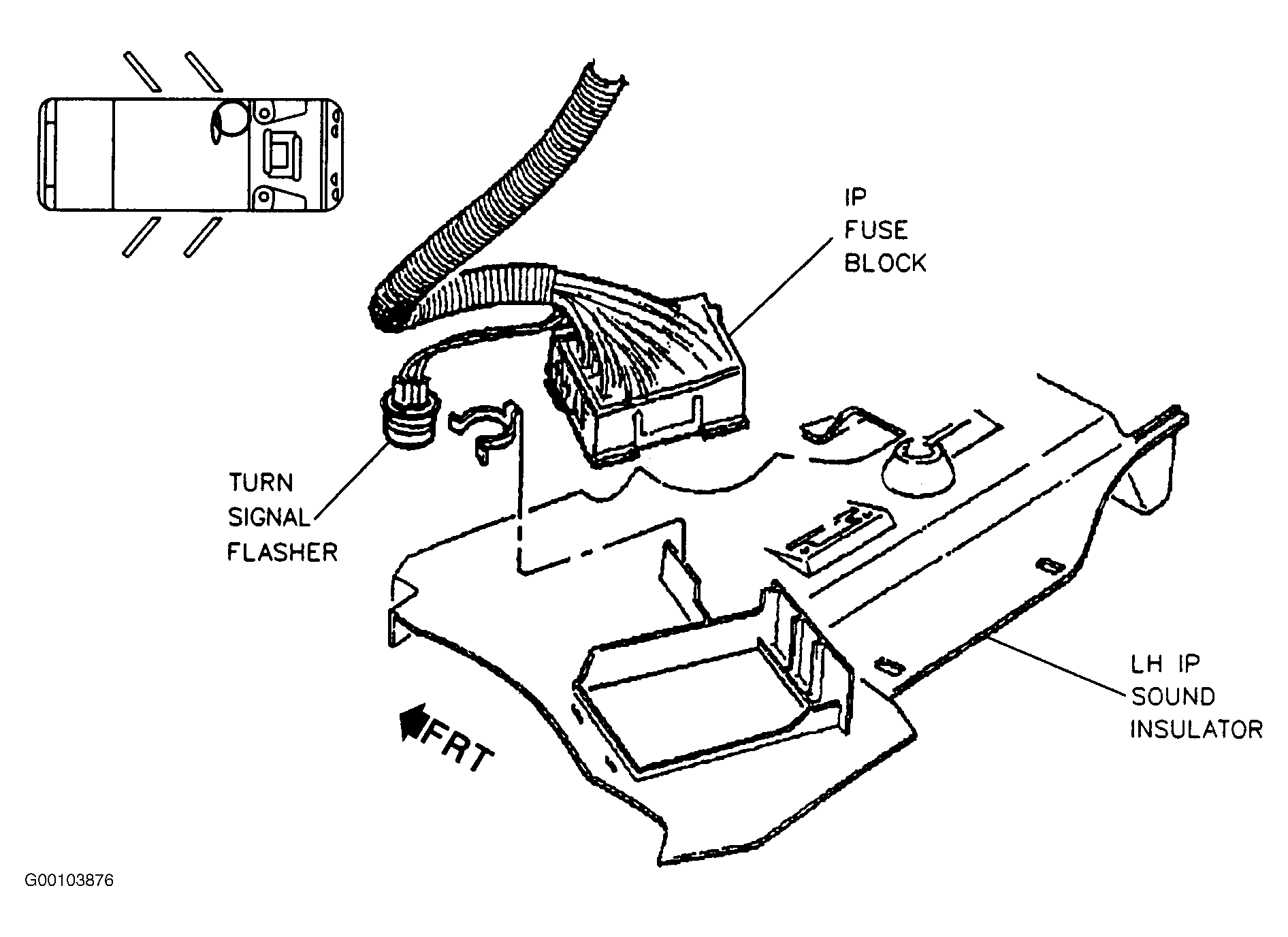

Instrument panel fuse block is located under driver's side of instrument panel. See Fig 1.

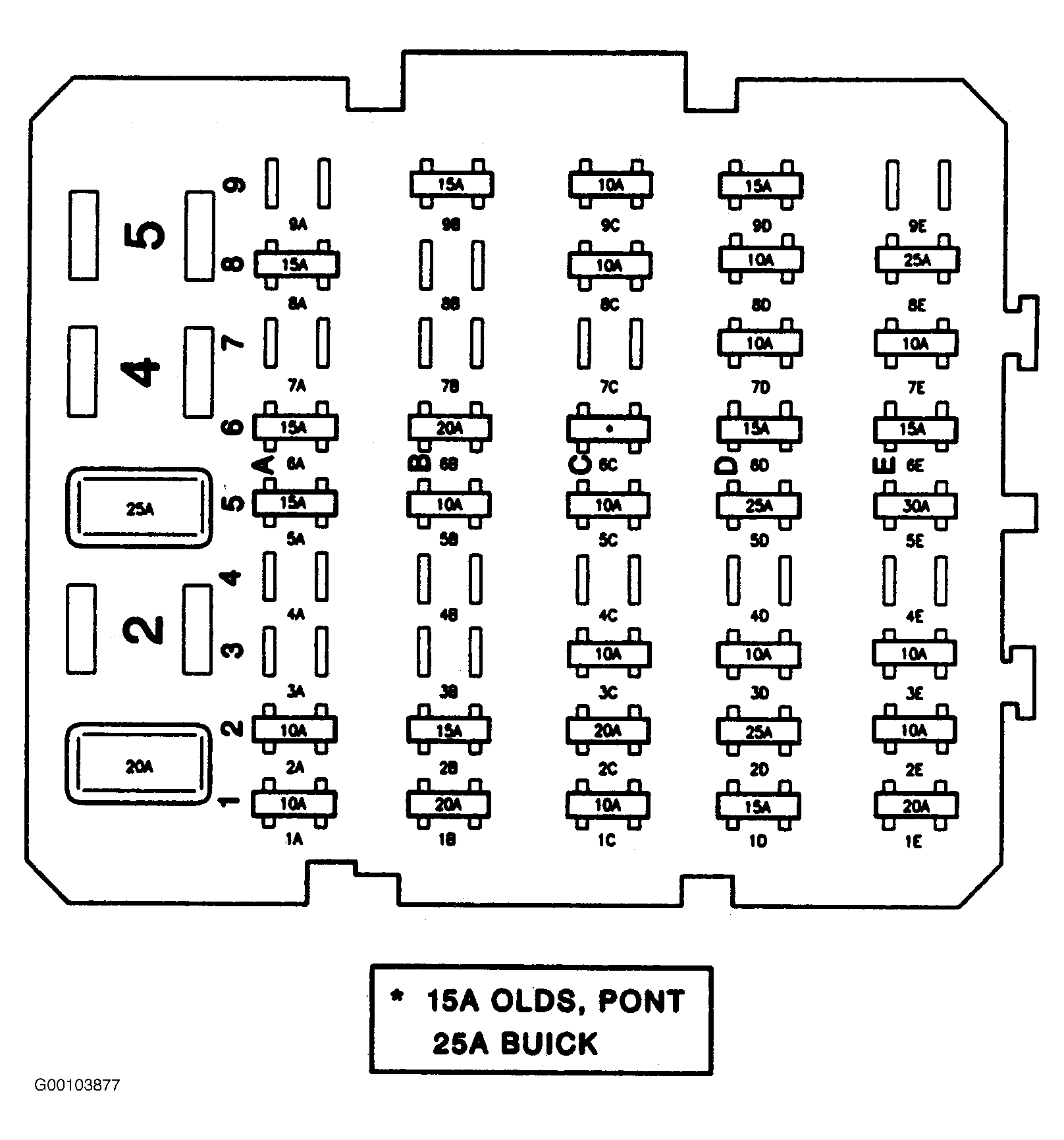

Instrument Panel Fuse Block Components
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| PWR SUNRF Circuit Breaker 1 | 15 A | Sunroof Control Module |
| PWR STS Circuit Breaker 3 | 25 A | LH Seat Swich, RH Seat Switch, (Buick, Pontiac, Oldsmobile.) LH Lumbar, RH Lumbar, Memory Seat / Mirror Module(Oldsmobile w/A43), Seat Air Control Module, Seat Control Module(Pontiac. w/w27) |
| VATS Fuse 1A | 10 A | PassKey® II Theft Deterrent Module |
| Spare Fuse 2A | 10 A | Spare Fuse |
| AUTO A/C CRUISE Fuse (Buick) 5A | 15 A | Cruise Control Module, Passenger Climate Control Assemble, Rear Defogger Relay, Heater A/C Controls, Heater and A/C Programmer (wCJ3) |
| AUTO A/C CRUISE Fuse(Oldsmobile) 5A | 15 A | Cruise Control Module, Heater A/C Control Switch, Rear Defogger Relay, Heater A/C Controls, Heater and A/C Programmer(w/CJ2) |
| AUTO A/C CRUISE Fuse (Pontiac) 5A | 15 A | Heater and A/C Controls, Shift Select Switch, Instrument Cluster, (HUD) Heads Up Display Module, Heads Up Display Control, Lamp Moniter Control Module (w/U2F, U50) |
| CTSY LP/PWR MIR Fuse 6A | 15 A | LH Seat Switch, Mirror Switch, Body Control Module (w/o DC6,D67,A43), Console Seat Switch(Pontiac w/AL7) |
| PERIMETER LT Fuse 8A | 15 A | Perimeter Lighting Relay, Turn Hazard Switch(w/T87) |
| T/SIG/BU LP/BTSI Fuse 1B | 20 A | Turn Signal Flasher, PNP Switch, Turn/ Hazard Switch (Oldsmobile w/T87) |
| Spare Fuse 2B | 15 A | Spare Fuse |
| ABS/CCR Fuse 5B | 10 A | Automatic Level Control Sensor, Electronic Relay, Electronic Suspension Control (CCR) Module, EBTCM. |
| BRK/HZRD Fuse 6B | 20 A | Hazard Flasher, Stoplamp / BTSI Switch |
| INTERIOR LPS Fuse (Buick) 8B | 10 A | Underhood Lamp, Remote Dimmer Module, Ashtray Lamp, Lamp Dimmer Switch, Radio, Heater and A/C Control (w/C68), Headlamp Switch, Instrument Cluster, HUD (w/UV6) |
| INTERIOR LPS Fuse (Oldsmobile) 8B | 10 A | Instrument Cluster, Interior Lamp Control Module, Radio |
| INTERIOR LPS Fuse (Pontiac) 8B | 10 A | Front Door Courtesy Lamps, Remote Dimmer Module, Ashtray Lamp, Lamp Dimmer Switch, Radio, Heater and A/C Control (w/C68), Headlamp Switch, Instrument Cluster (w/U50/U2F), HUD (w/UV6) |
| CIGAR LTR Fuse 9B | 15 A | Cigar Lighter,(Buick ,Oldsmobile, Pontiac), Rear Console Cigar Lighter, (w/D55 Pontiac) |
| AIR BAG Fuse 1C | 10 A | Inflatiable Restraint Sensing and Diagnostic Module. |
| Spare Fuse 2C | 20 A | Spare Fuse |
| CLG FAN/ TCC Fuse (Oldsmobile, Pontiac) 6C | 15 A | Lamp Control Module, Headlamp Switch, Park Lamp Relay |
| Cooling Fans, Tranaxle Fuse (Buick) 6C | 25 A | Lamp Control Module, Headlamp Switch, Park Lamp Relay |
| PARKLAMPS Fuse (Buick) 8C | 10 A | LH / RH Front Park Turn Lamps, LH / RH Front Side Marker Lamps, LH / RH Rear Side Marker Lamps, LH / RH Tail / Stop Turn Lamps, License Lamps |
| MISC RDO/CLSTR Fuse (Buick) 9C | 10 A | Remote Indicator Bank, DLC, Heater A/C Programmer(w/CJ2), Lamp Dimmmer Switch, Radio, Audio Amplifier (w/U28), Instrument Cluster |
| MISC RDO/CLSTR Fuse (Oldsmobile) 9C | 10 A | DLC, Heater and A/C Programmer (w/C68), Radio, Audio Amplifier (w/U28), Instrument Cluster, Heater and A /C Control, |
| MISC RDO/CLSTR Fuse (Pontiac) 9C | 10 A | Adaptive Lamp Moniter Control Module, DLC, Heater And A/C Control Programmer (w/C68), Audio Amplifier (w/U28), Instrument Cluster, Radio |
| CHIME Fuse (Buick) 1D | 15 A | RFA Module, Memory Seat / Mirror Module, Automatic Day / Night Mirror, MALL, Brake Lamp Driver Module, Remote Indicator Bank , LCM |
| HTD MIR Fuse (Oldsmobile) 3D | 10 A | LH Outside Rear View Mirror |
| HTD MIR Fuse (Buick) 3D | 10 A | LH / RH Power Mirror |
| HTD MIR Fuse (Pontiac) 3D | 10 A | LH / RH Outside Power Mirror, Electronic Compass Module |
| BASE A/C Fuse (Oldsmobile) (Pontiac) 5D | 25 A | Tempature Valve Actuator, Heater and A/C Control Assembly (w/ C61) |
| FOG LPS Fuse (Pontiac)(Oldsmobile) 6D | 15 A | Fog Lamp Relay |
| RADIO Fuse 8D | Radio, Power Windows/Sunroof Relay, (Buick w/U23, Pontiac w/UM7, Oldsmoblie w/C61) | |
| RADIO Fuse 8D | Radio, Power Windows/Sunroof Relay, Steering Wheel Control Switch (Buick w/UB3, Pontiac w/o UM7, Oldsmobile w/CJ2) | |
| IP AUX OUTLET Fuse (Oldsmobile) 1E | 20 A | Auxiliary Power Outlet |
| AIR BAG/VATS Fuse 2E | 10 A | Instrument Cluster(Oldsmobile), Starter Enable Relay |
| IGN OFF/UNLOCK Fuse (Oldsmobile) 3E | 10 A | Instrument Cluster |
| RR DEFOG Fuse 5E | 30 A | Heater and A/C Control(Pontiac w/cj2), Rear Defogger Relay (Oldsmobile/Buick wCJ2, Pontiac w/C68) |
| MISC ENG NON OBDII Fuse 7E | 10 A | Coolant Level Switch(Pontiac), Boost Control Solenoid (Oldsmobile), A/C Compressor Relay |
| WPR/WSHR Fuse 8E | 25 A | Remote Function Actuator (RFA) Module, Windshield Wiper Switch |
