Connector Identification

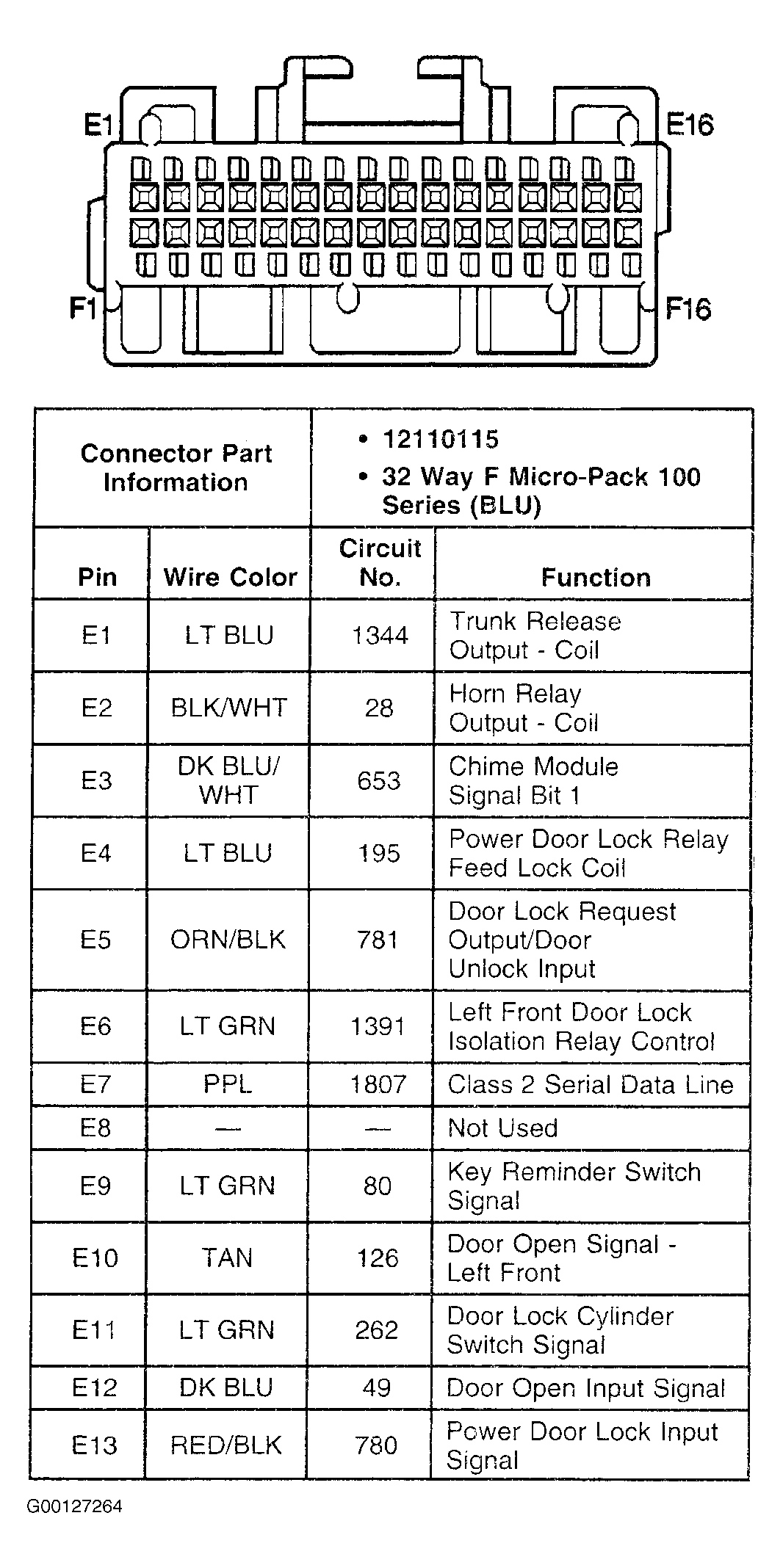

Fig 1: Identifying Remote Function Actuator (RFA) Module Connector Terminals
G00127264Courtesy of GENERAL MOTORS CORP.
