Component Locations

Component	Location
Body Control Module (Mall)	Under Right Side Of Instrument Panel, Near Rear Of Instrument Panel Compartment. See Fig 1 .

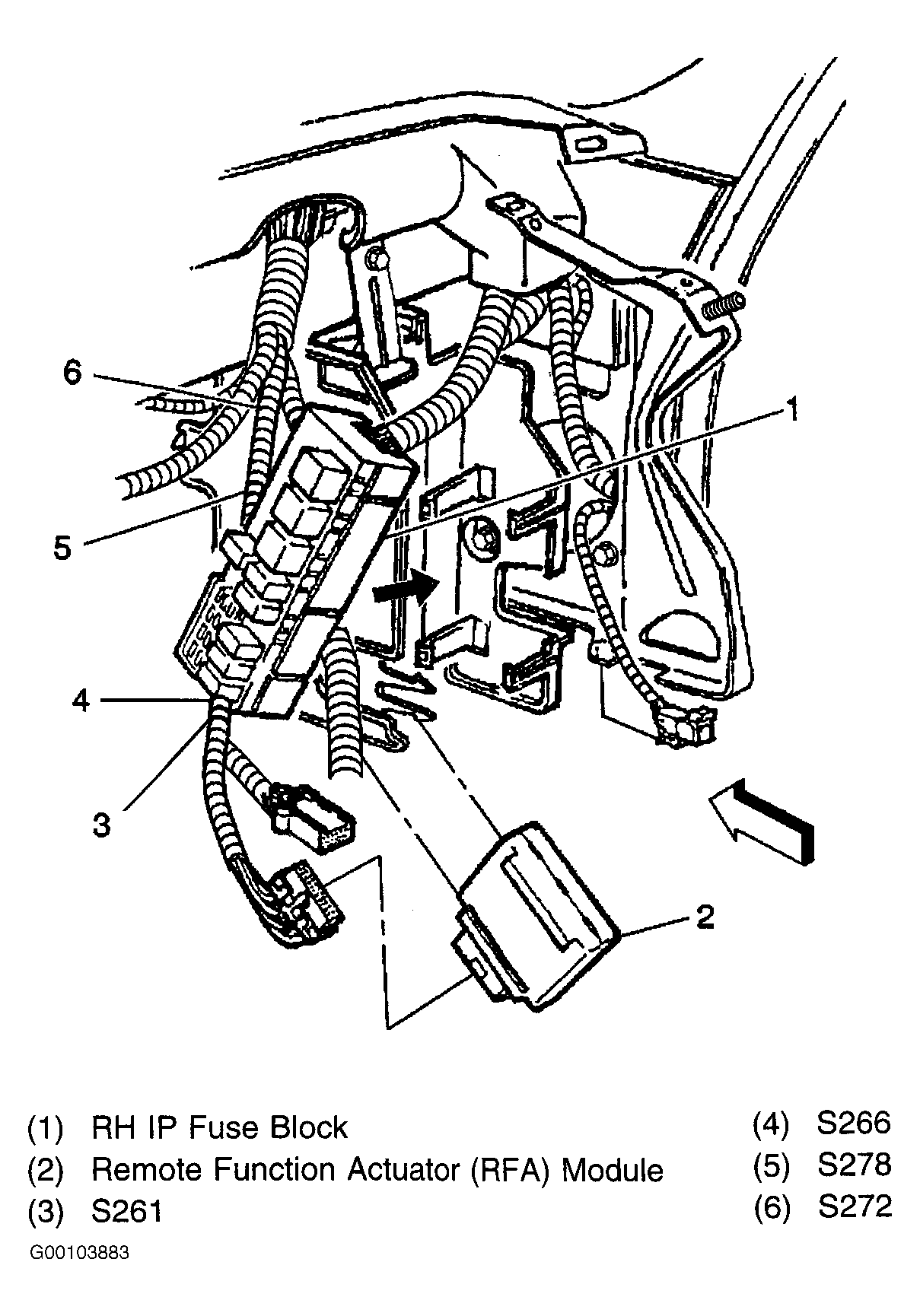

Instrument Panel Fuse Blocks	Under Left Or Right Side Of Instrument Panel. See Fig 2 or Fig 3 .
Left Front Door Handle Switch	Rear Of Left Hand Front Door, On Door Latch Assembly.

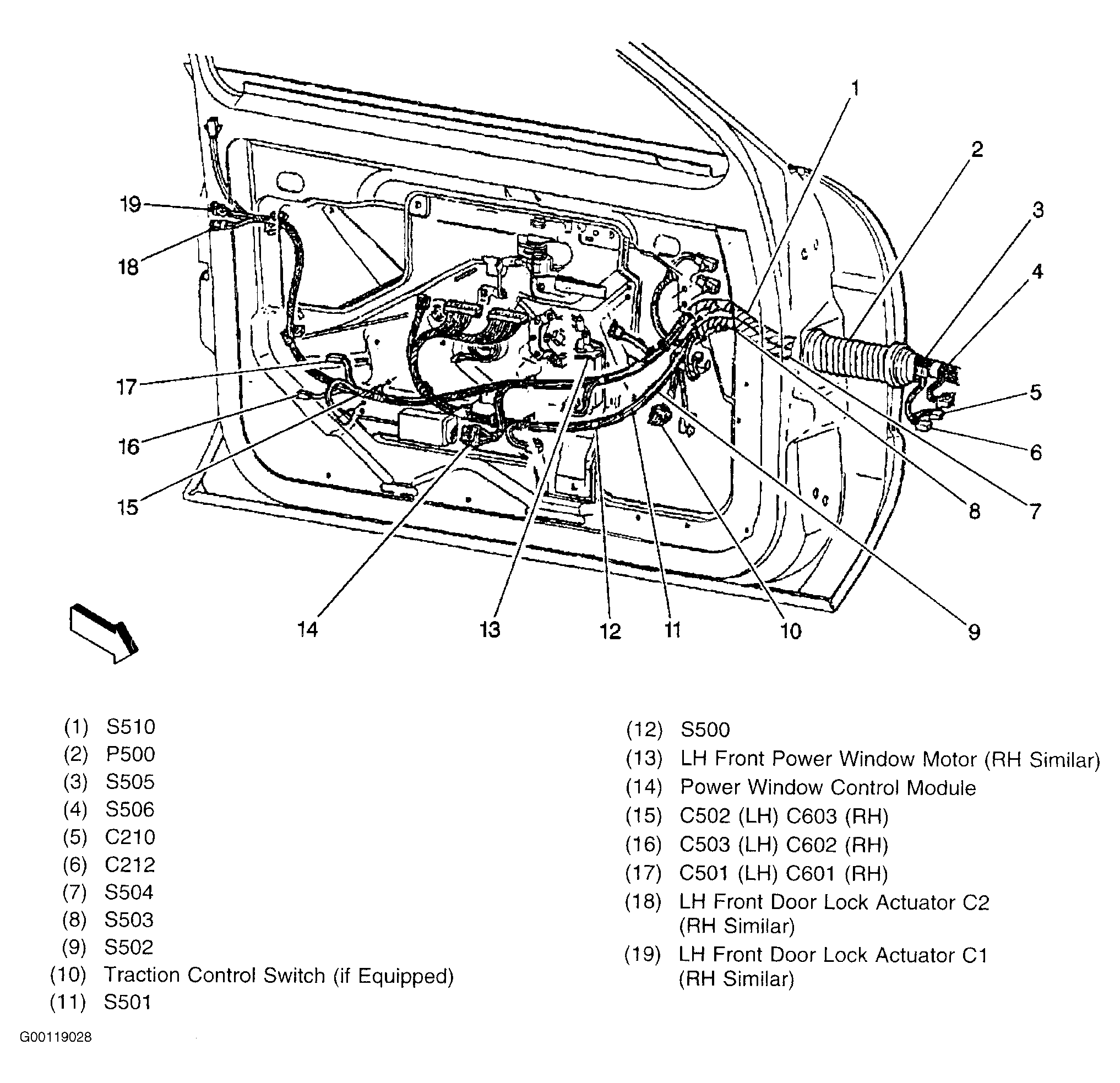

Left Front Door Lock Actuator	Rear Of Left Hand Front Door, On Door Latch Assembly. See Fig 4 .

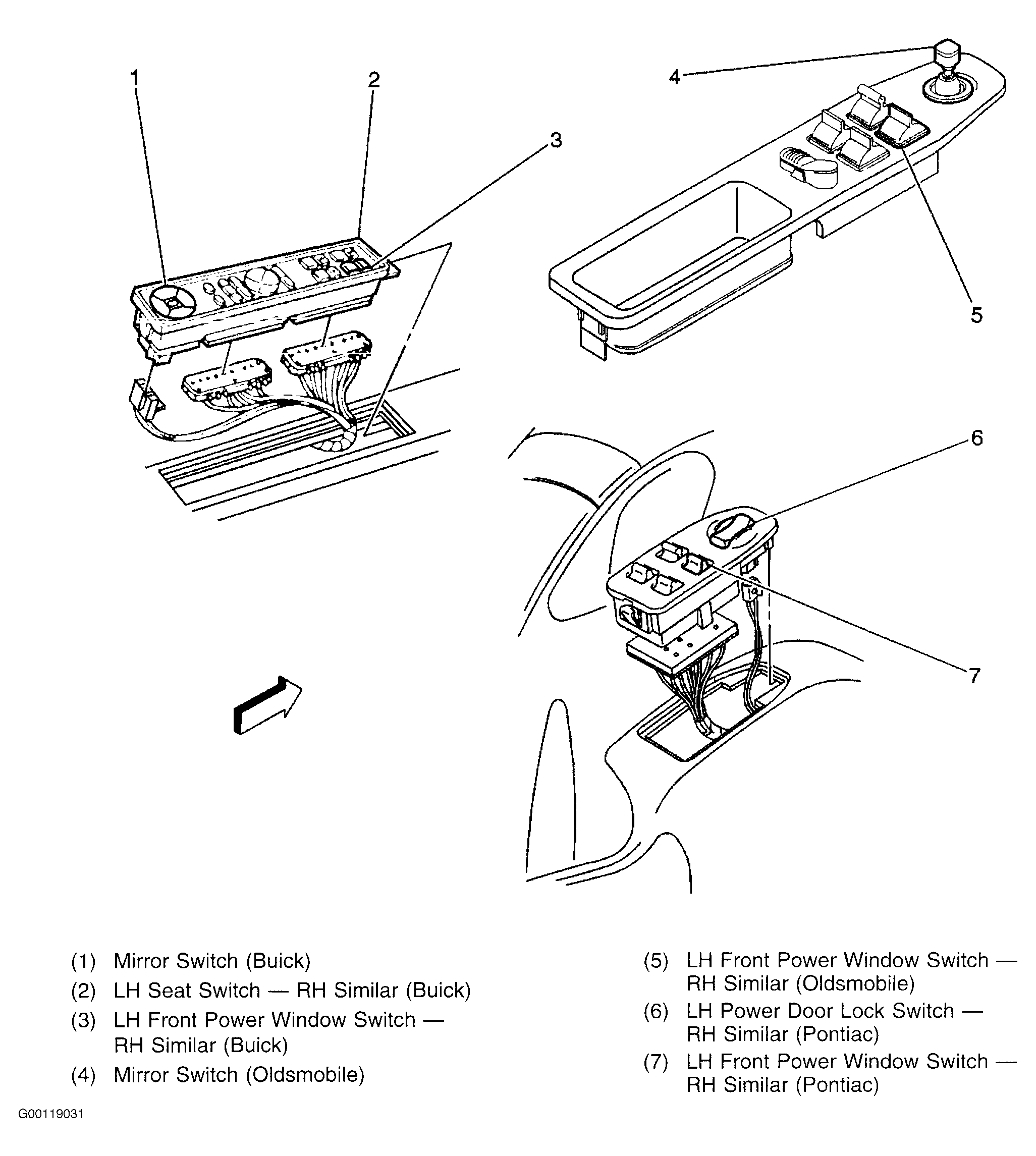

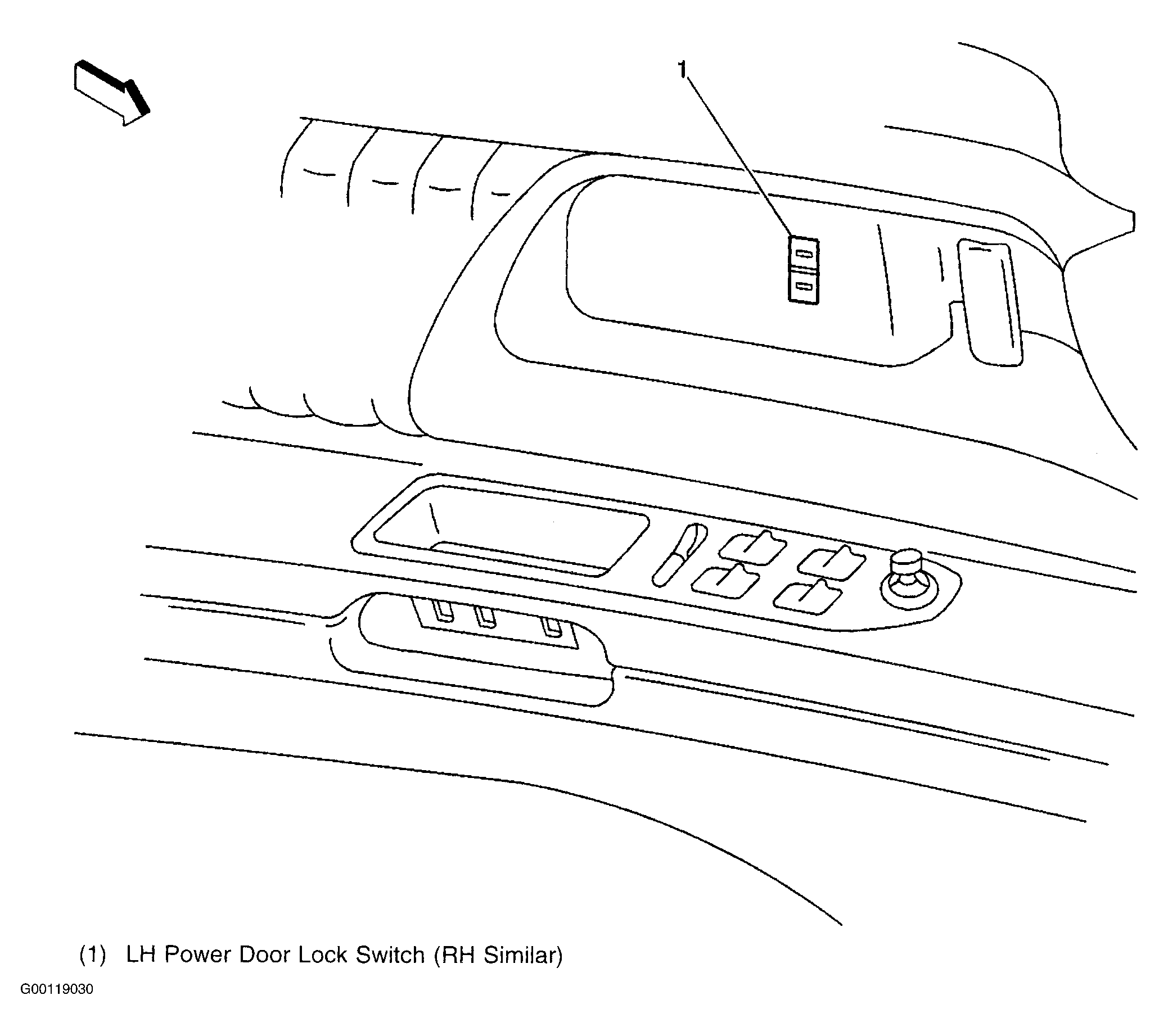

Left Front Power Door Lock Switch	Center Of Left Hand Front Door, Near Inside Door Handle. See Fig 6 And Fig 7 .

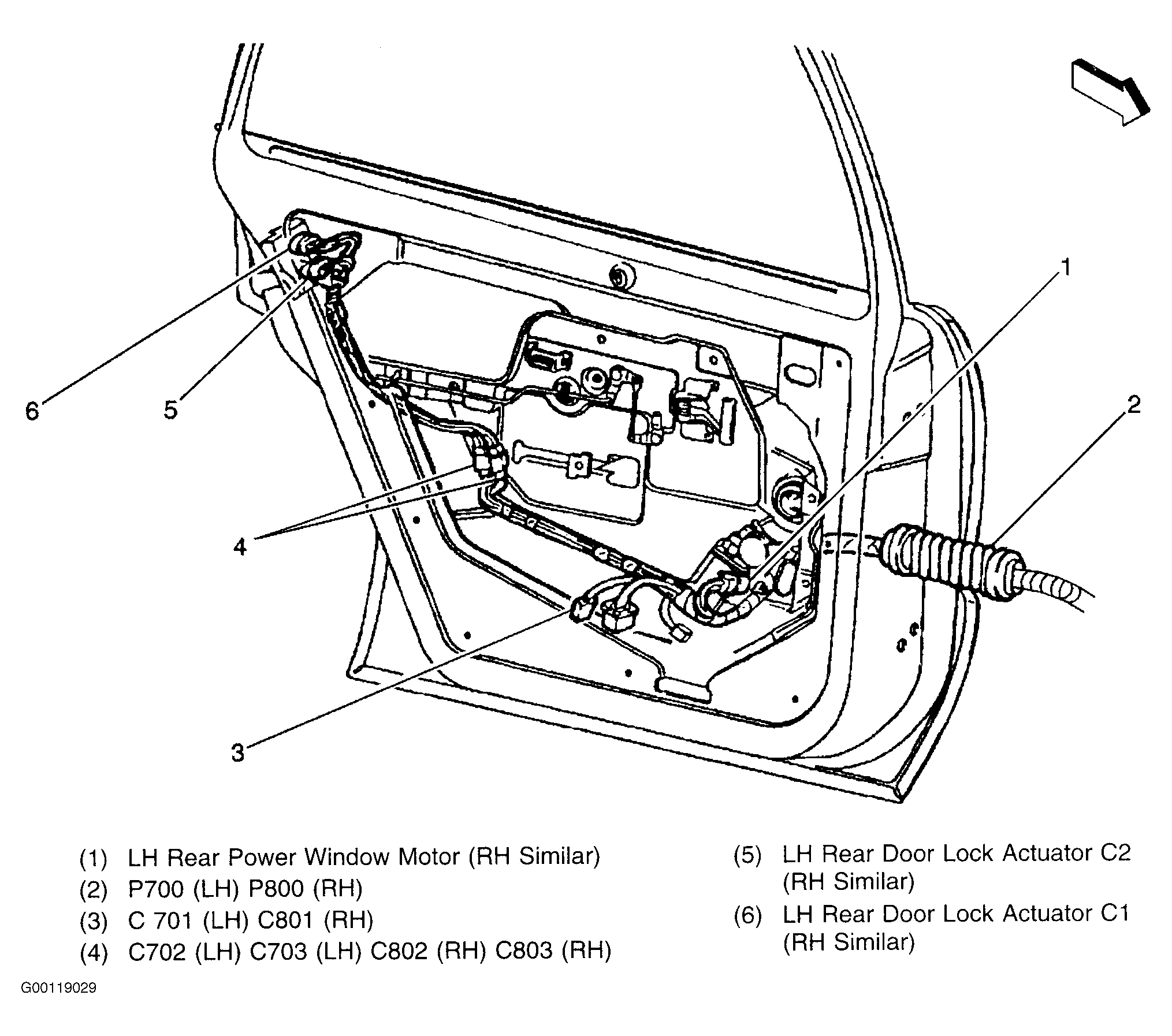

Left Rear Door Lock Actuator	Rear Of Left Hand Front Door, On Door Lock Cylinder. See Fig 5 .
Right Front Door Handle Switch	Rear Of Right Hand Front Door, On Door Latch Assembly.
Right Front Door Lock Actuator	Rear Of Right Hand Front Door, On Door Latch Assembly.
Right Front Power Door Lock Switch	Center Of Right Hand Front Door, Near Inside Door Handle.
Right Rear Door Lock Actuator	Rear Of Right Hand Front Door, On Door Lock Cylinder.
C502	Body Harness, To The Left Front Door Harness, At Lower Front Of Left Front Door. See Fig 4 .
C603	Body Harness, To The Right Front Door Harness, At Lower Front Of Right Front Door.
C703	Body Harness To The Left Rear Door Harness, On The Lower Front Of The Left Rear Door.
C803	Body Harness To The Right Rear Door Harness, On The Lower Front Of The Right Rear Door.
G201	Right Front Of The Passenger Compartment, Behind The Right Kick Panel Trim Plate.
G202	Left Front Of The Passenger Compartment, Behind The Left Kick Panel Trim Plate. See Fig 8 .
P100	In Left Rear Of The Engine Compartment, Near Left Front Strut Tower.
P408	Left Center Of Rear Compartment, Near The Left Wheelhouse.
P500	Front Of The Left Front Door Jamb, Near The Door Hinges. See Fig 4 .
P600	Front Of The Right Front Door Jamb, Near The Door Hinges.
P700	Front Of The Left Front Door Jamb, Near The Door Hinges.See Fig 5 .
S208	In Body Harness, Approximately 6 cm (2.3 In) From Center Instrument Panel Harness Channel Breakout.
S218	In The Body Harness, Approximately 49.5 Cm (19.4 In) Front Top Edge Of The Left Foot Well Harness Channel. See Fig 8 .
S225	In The Body Harness, Approximately 49.5 Cm (19.4 In) Front Top Edge Of The Left Foot Well Harness Channel. See Fig 8 .
S237	In The Body Harness Approximately 22 Cm (8.6 In) From The Center Instrument Panel Harness Channel Breakout.
S248	In The Body Harness, Approximately 14 Cm (5.5 In) From The Interior Lamp Control Module Breakout.
S252	In The Body Harness, Approximately 20.5 Cm (9 In) From Interior Lamp Control Module Breakout.
S296	In The Body Harness, Approximately 13 Cm (5.1 In) From The Center Instrument Panel Harness Channel Breakout. See Fig 9 .
S302	In The Body Harness, Approximately 69 Cm (27.1 In) Into The Crosscar Breakout.
S303	In The Body Harness, Approximately 75 Cm (29.5 In) Into The Cross Car Breakout.
S307	In The Body Harness, Approximately 33 Cm (13 In) From The G201 Breakout.
S308	In The Body Harness, Approximately 33 Cm (13 In) From The G201 Breakout.
S510	In The Body Harness, Approximately 21 Cm (8.2 In) From P500.
S603	In The Body Harness, Approximately 5.5 (2.2 In) From P600.
