Connector Identification

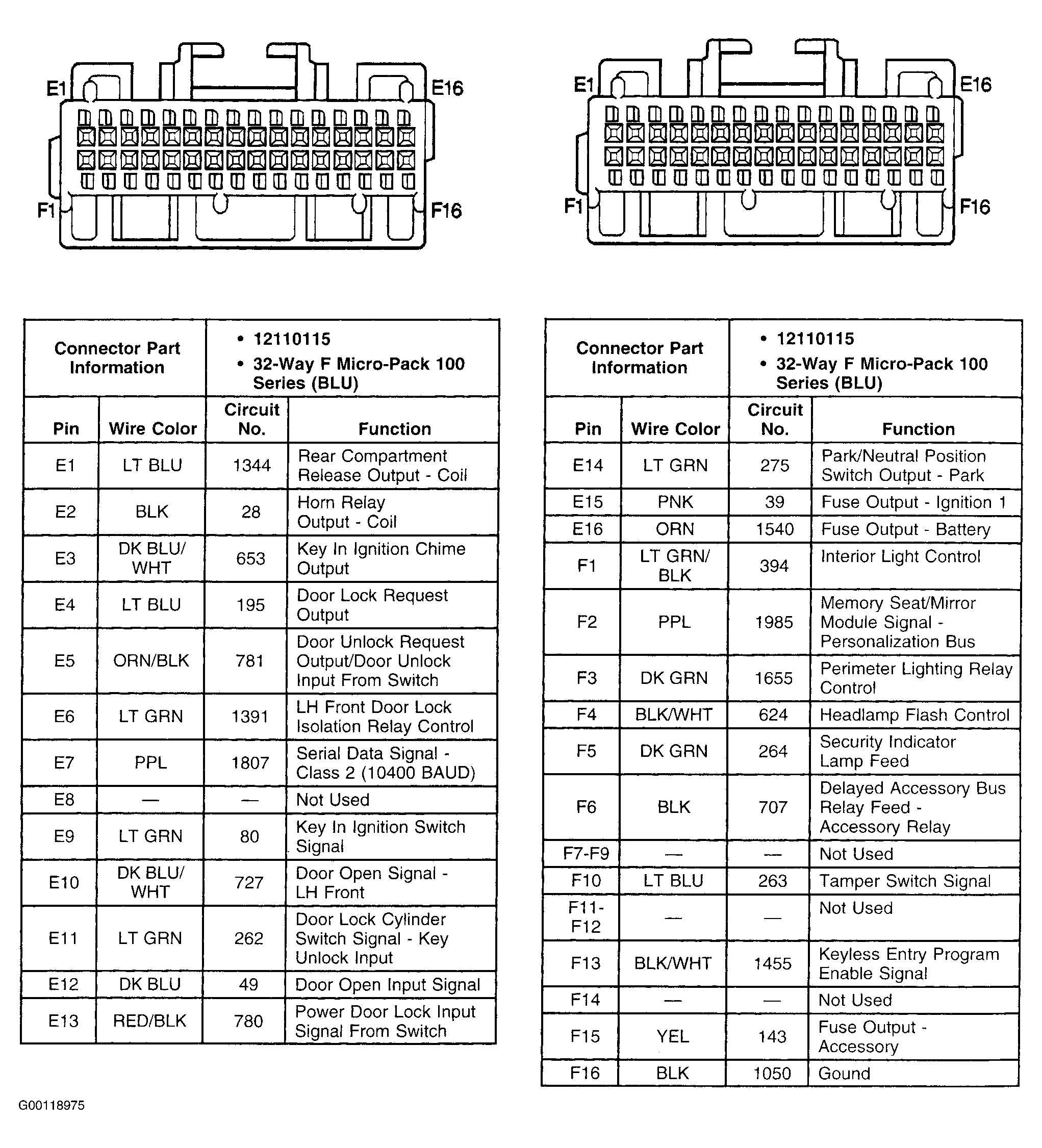

Fig 1: Identifying Remote Function Actuator Connector Terminals
G00118975Courtesy of GENERAL MOTORS CORP.
