Remote Function Actuator (RFA) Module: Removal

1. Remove the right sound insulator. See CLOSEOUT/INSULATOR PANEL  .
2. Disconnect the lower electrical connector. Press down on the center tab of the multi-use bracket. See Fig 1 . Slide the module downward until the mounting rails are disengaged.
3. Disconnect the upper electrical connector.

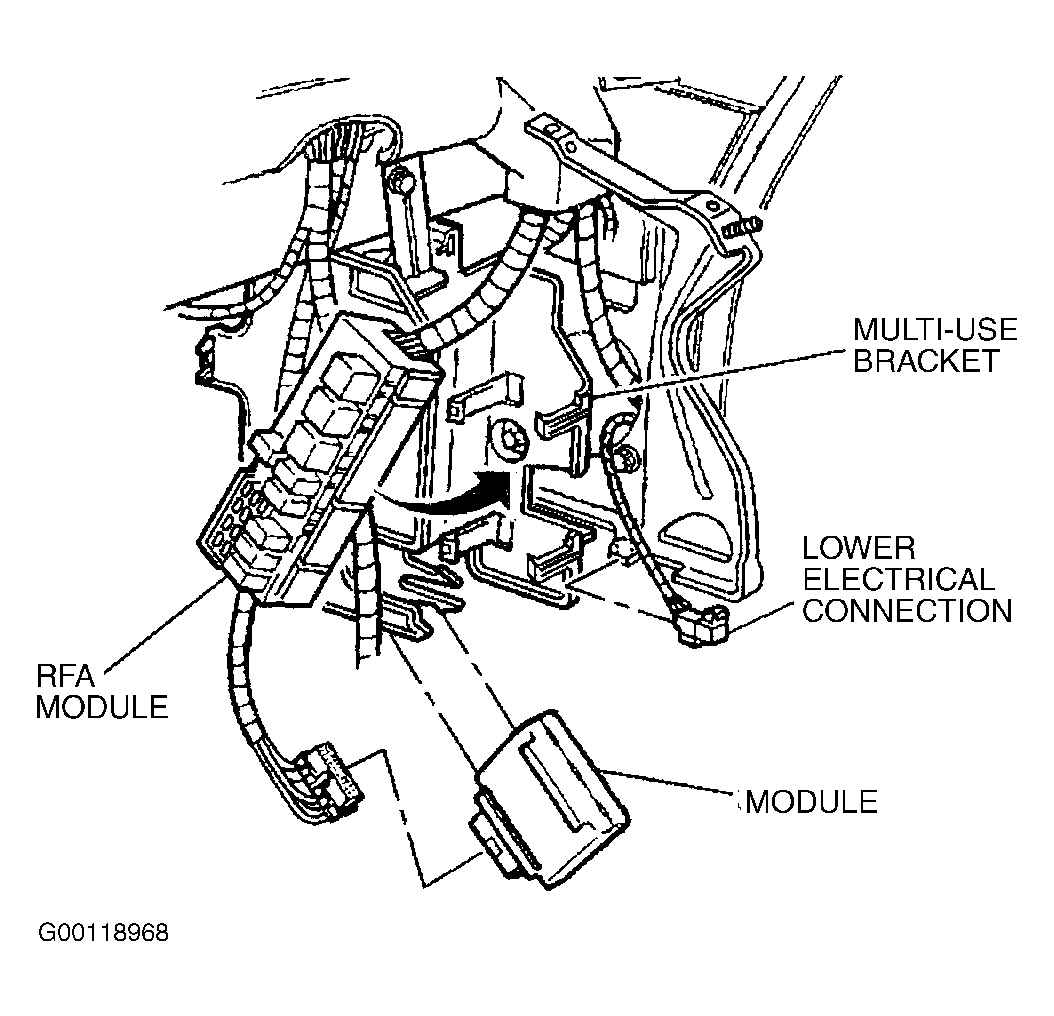

Fig 1: Removing Remote Function Actuator Module

Courtesy of GENERAL MOTORS CORP.
