Transmitter Battery: Installation

1. Install the battery with the positive (+) side down. Use one 3-volt CR2032 battery (or the equivalent).
2. Close the transmitter case.
3. Ensure that the seal is in position. Align the 2 halves of the case and snap the 2 halves together. See Fig 1 .
4. Resynchronize the transmitter. See TRANSMITTER RESYNCHRONIZATION  under PROGRAMMING.
5. Replace the batteries when the range of the transmitter decreases to less than 7 meters (23 feet).

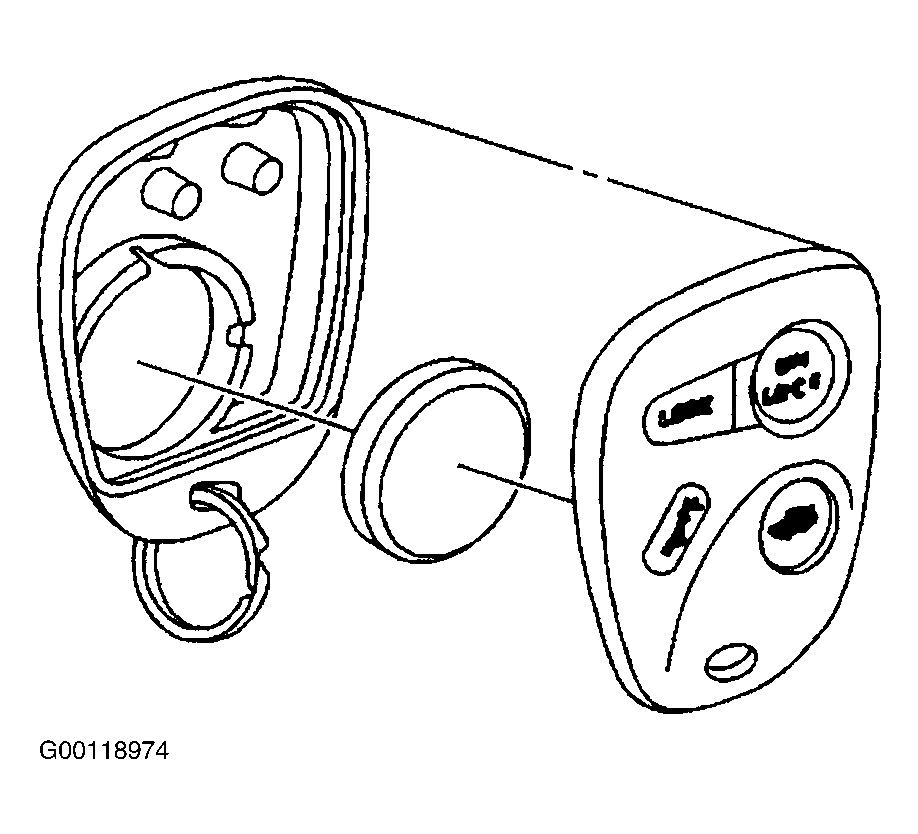

Fig 1: Aligning Transmitter Halves

Courtesy of GENERAL MOTORS CORP.
