Connector Identification

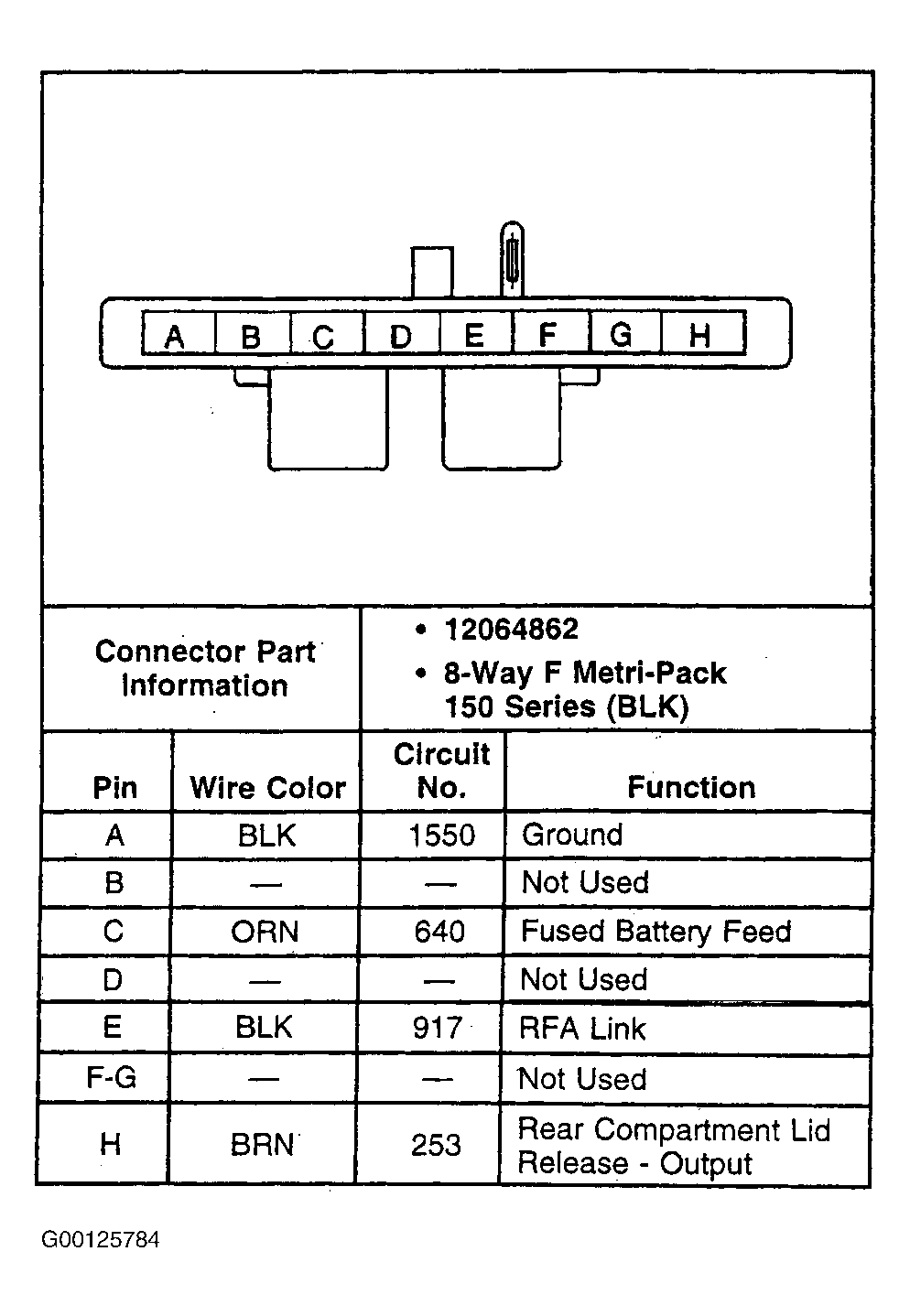

Fig 1: Identifying Remote Control Door Lock Receiver Connector
G00125784Courtesy of GENERAL MOTORS CORP.
