Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Blower Motor Control Module | In right side of heater-A/C module. See Figure . |

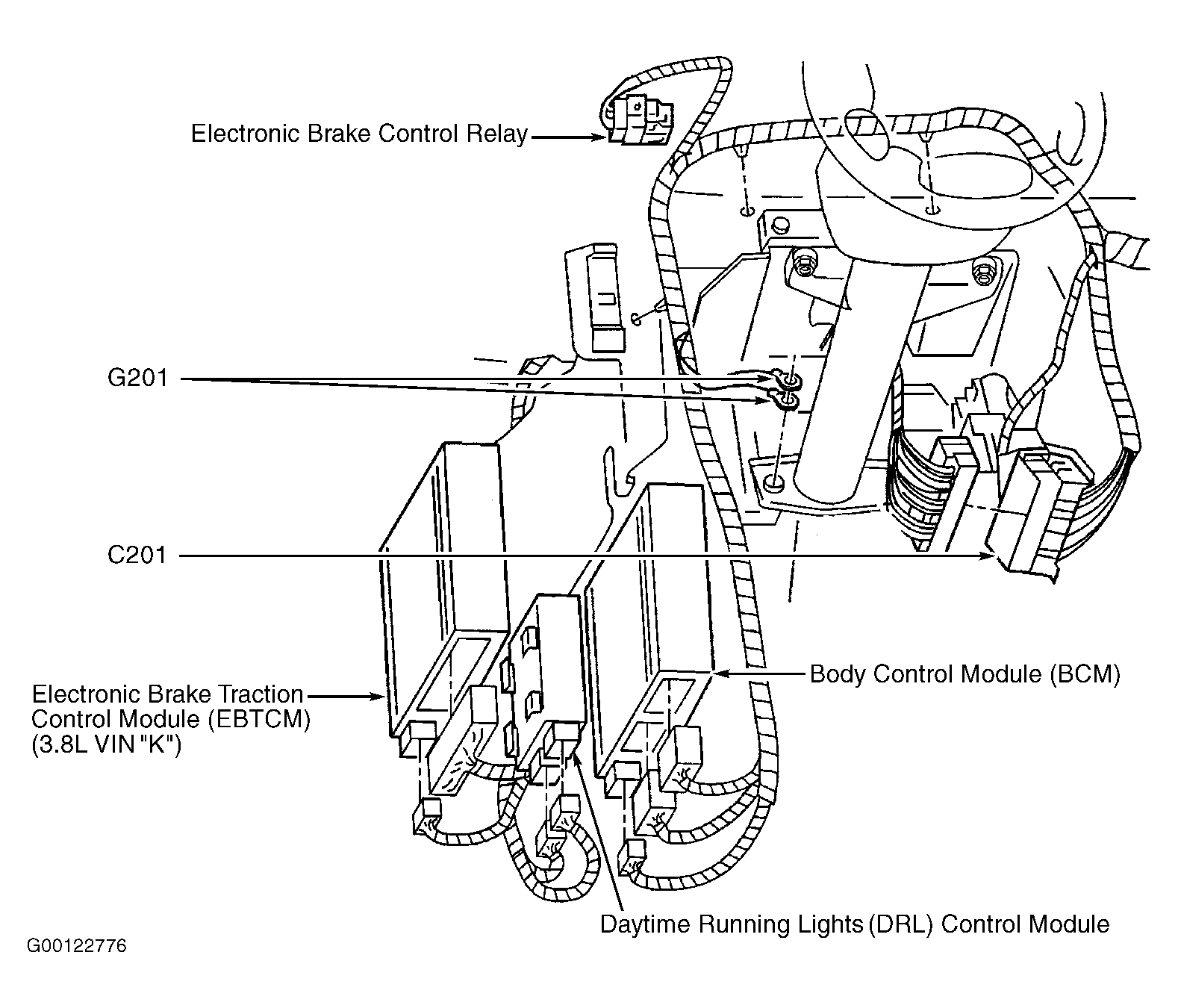

| Body Control Module (BCM) | Behind left side of dash, left of steering column. See Figure . |

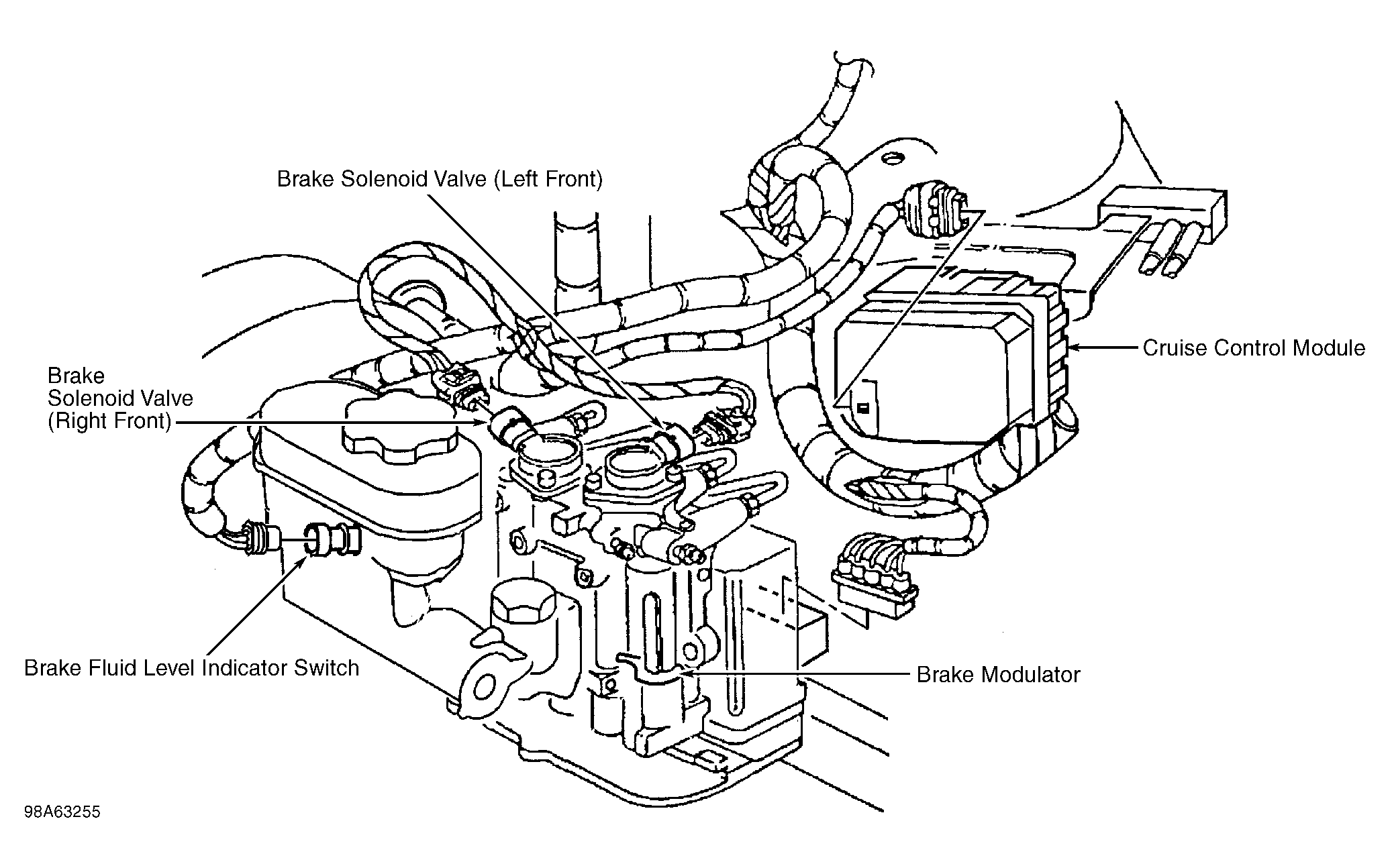

| Brake Modulator | At left side of engine compartment, on brake master cylinder. See Figure . |
| Cruise Control Module | Front of left strut tower. See Figure . |
| Daytime Running Lamps (DRL) Control Module | Behind left side of dash. See Figure . |
| Electronic Brake Traction Control Module (EBTCM) (3.5L VIN H) | On left strut tower, part of brake pressure modulator valve. |
| Electronic Brake Traction Control Module (EBTCM) (3.8L VIN K) | Below left side of dash, left of steering column. See Figure . |
| Engine Coolant Level Indicator Module | Mounted on right side of radiator. |
| Front Bank Ignition Control (IC) Module (3.5L VIN H) | On top of left engine valve cover. See Figure . |

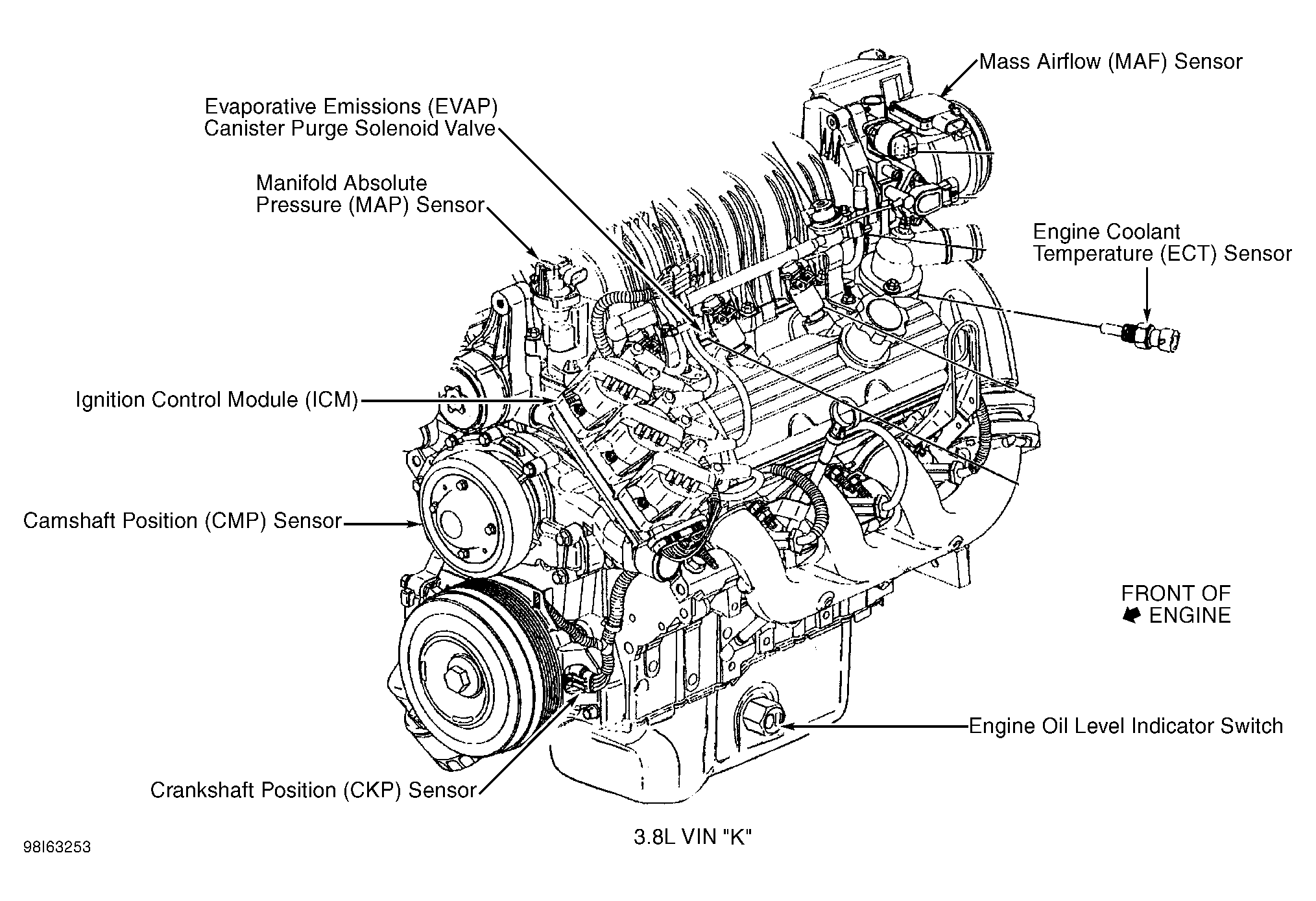

| Ignition Control Module (ICM) (3.8L VIN K) | Top front of engine. See Figure . |
| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Below carpet, under right front seat. |
| Powertrain Control Module (PCM) (3.5L VIN H) | Left front side of engine compartment, in air cleaner assembly. See Figure . |
| Powertrain Control Module (PCM) (3.8L VIN K) | Left front side of engine compartment, in air cleaner assembly. |
| Radio Antenna Module | On rear window header panel, above headliner. |
| Rear Bank Ignition Control (IC) Module (3.5L VIN H) | On top of right engine valve cover. See Figure . |
| Remote Control Door Lock Receiver (RCDLR) | Left side of dash, on right side of instrument cluster. |
| Sun Roof Module | Right corner of sun roof. |
