Water Deflector: Installation

Install the water deflector. See Fig 1 .
Align the hook pockets with the trim hook holes in the inner panel.
Use a roller around periphery of the water deflector to ensure proper seating of the adhesive.
Install the trim panel. See DOOR TRIM PANEL .

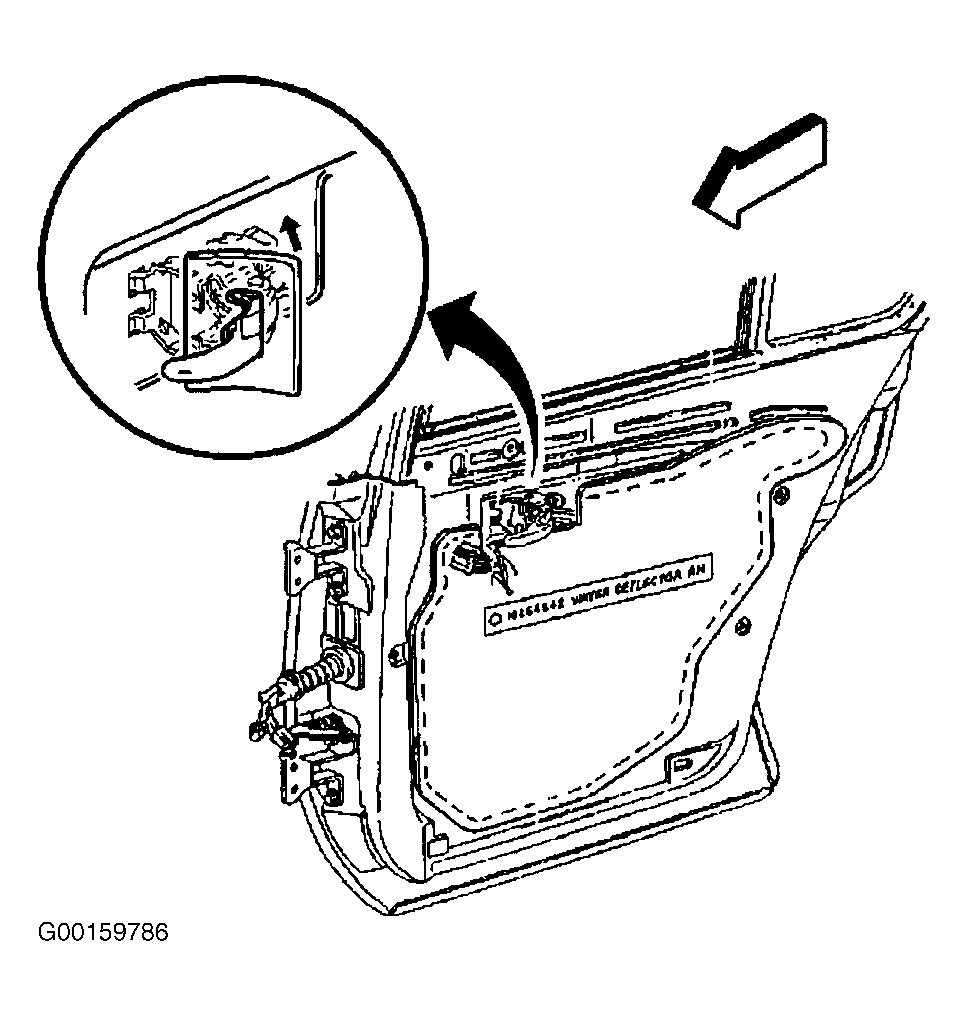

Fig 1: Removing Rear Door Panel Water Deflector

Courtesy of GENERAL MOTORS CORP.
