Analog Instrument Panels: Description
WARNING:
Deactivate air bag system before performing any service operation. See appropriate AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

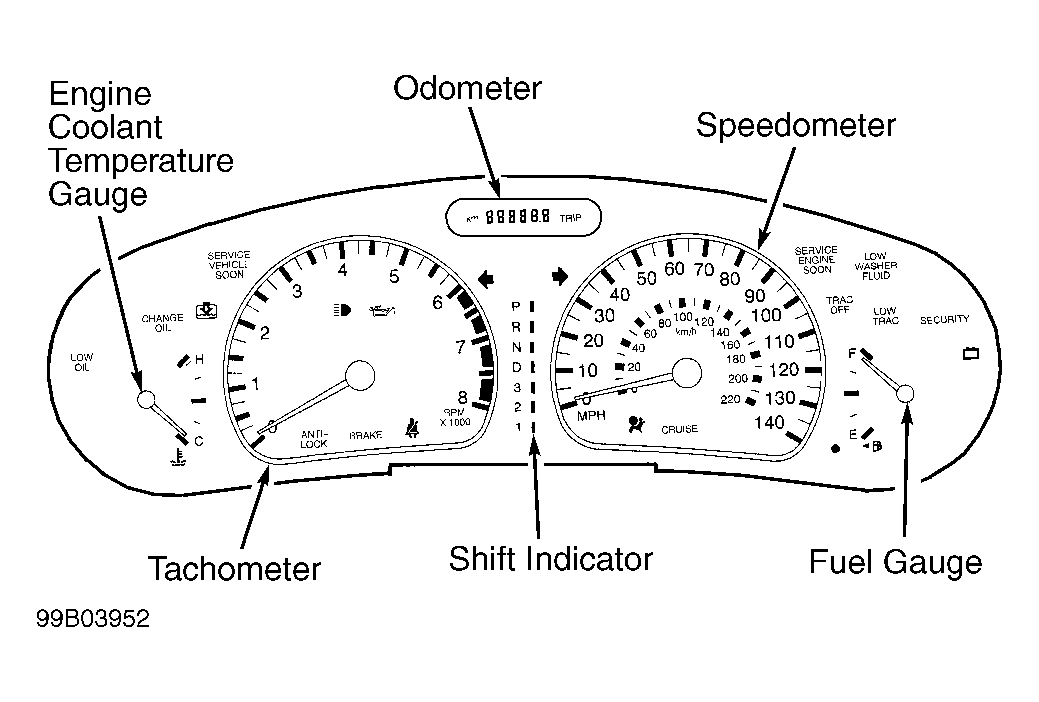

The instrument panel cluster uses an analog speedometer/odometer, fuel gauge, coolant temperature gauge and tachometer. Warning indicators include: air bag, ANTI-LOCK, BRAKE, CHANGE OIL, charge, coolant temperature, seat belt, high beam, low coolant, low fuel, LOW OIL, TRAC OFF, LOW TRAC, LOW WASHER FLUID, oil pressure, SECURITY, SERVICE ENGINE SOON, SERVICE VEHICLE SOON, CRUISE, turn signal and exterior lighting indicators. See Fig 1 .
