Installation Procedure

  1. Install the seal on the drain cock stem.
  2. Install the drain cock. Make sure that the body is fully seated in the side tank.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System .

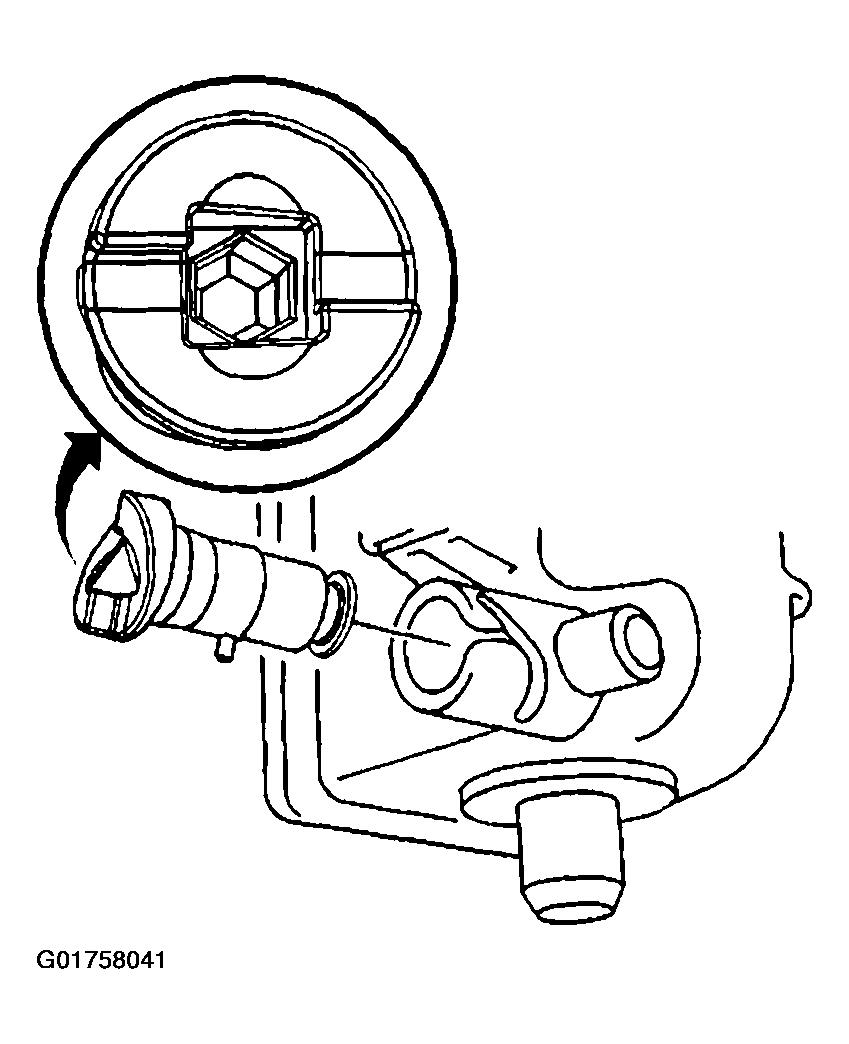

    Fig 1: Install Drain Cock
    G01758041Courtesy of GENERAL MOTORS CORP.
