Removal Procedure
- Drain the cooling system. Refer to Draining and Filling Cooling System .
- Remove the battery. Refer to BATTERY REPLACEMENT
in Engine Electrical.
- Remove the engine mount strut bracket from the upper radiator support.
Courtesy of GENERAL MOTORS CORP.
- Remove the cooling fan shroud assembly. Refer to Cooling Fan Replacement - Electric .
- Remove the LH diagonal brace. Refer to BRACE REPLACEMENT - SHEET METAL DIAGONAL
in Body Front End.

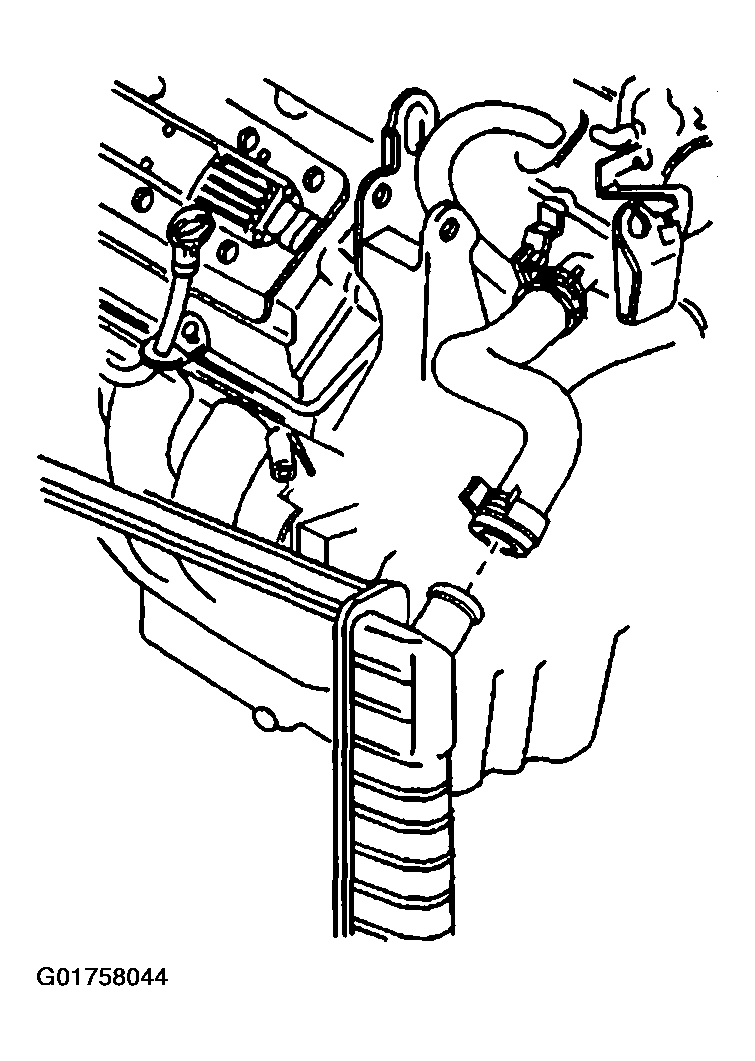

- Use J 38185
in order to remove the inlet hose clamp from the radiator.
- Remove the inlet hose from the radiator.
- Raise and suitably support the vehicle.
- Remove the lower air baffle. Refer to Radiator Air Baffle and Deflector Replacement - Lower .

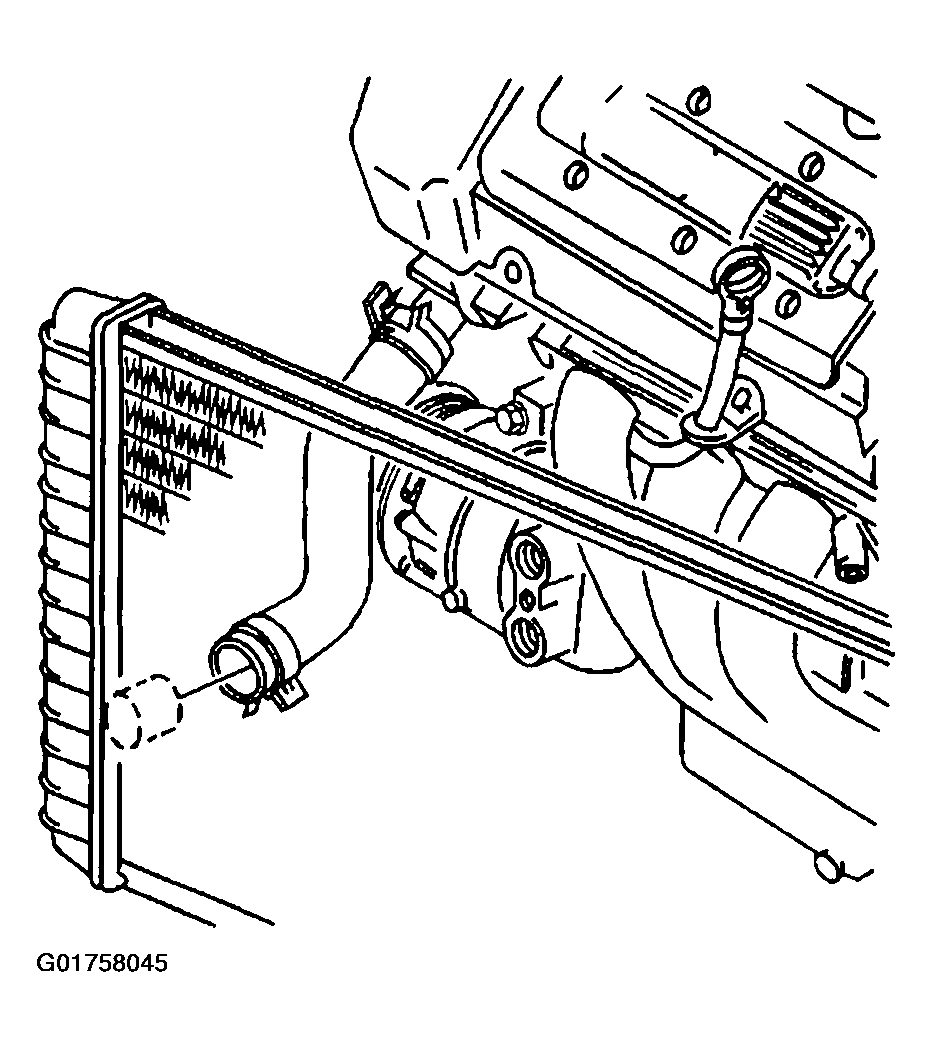

- Use J 38185
in order to remove the inlet hose clamp from the radiator.
- Remove the outlet hose from the radiator.
- Lower the vehicle.
Courtesy of GENERAL MOTORS CORP.

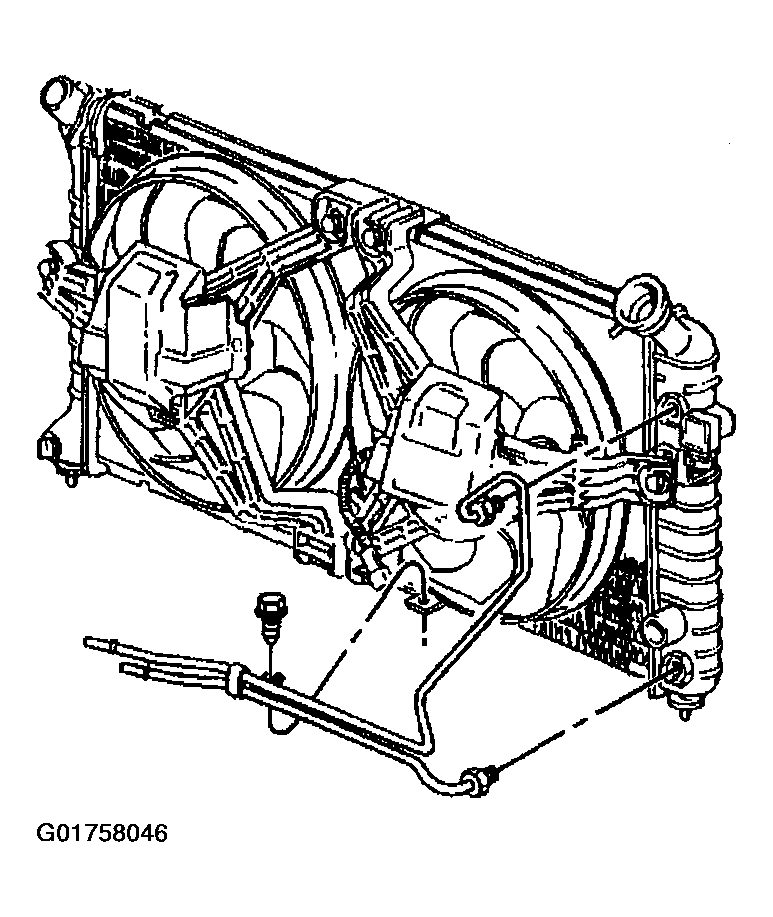

- Disconnect the transaxle oil cooler pipes from the radiator.
- Pull the plastic cap back from the quick connect fitting and down along the transaxle oil cooler pipe about two inches.
Courtesy of GENERAL MOTORS CORP.

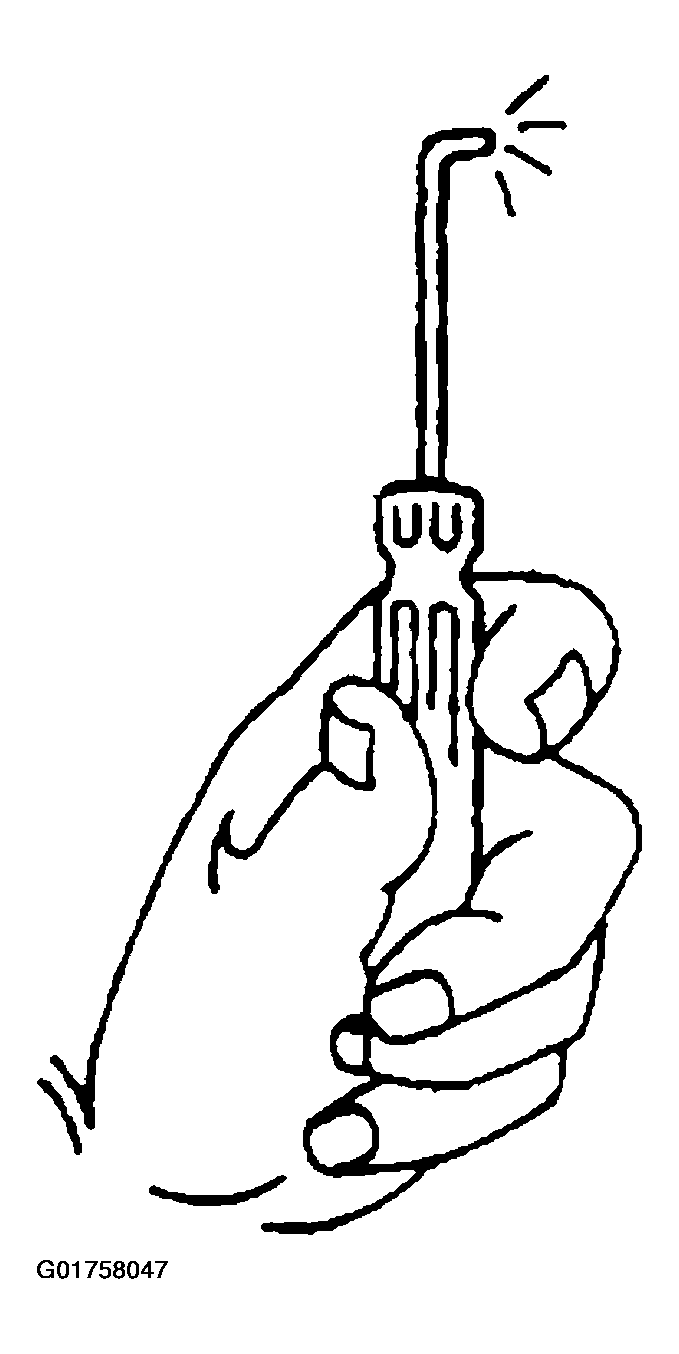

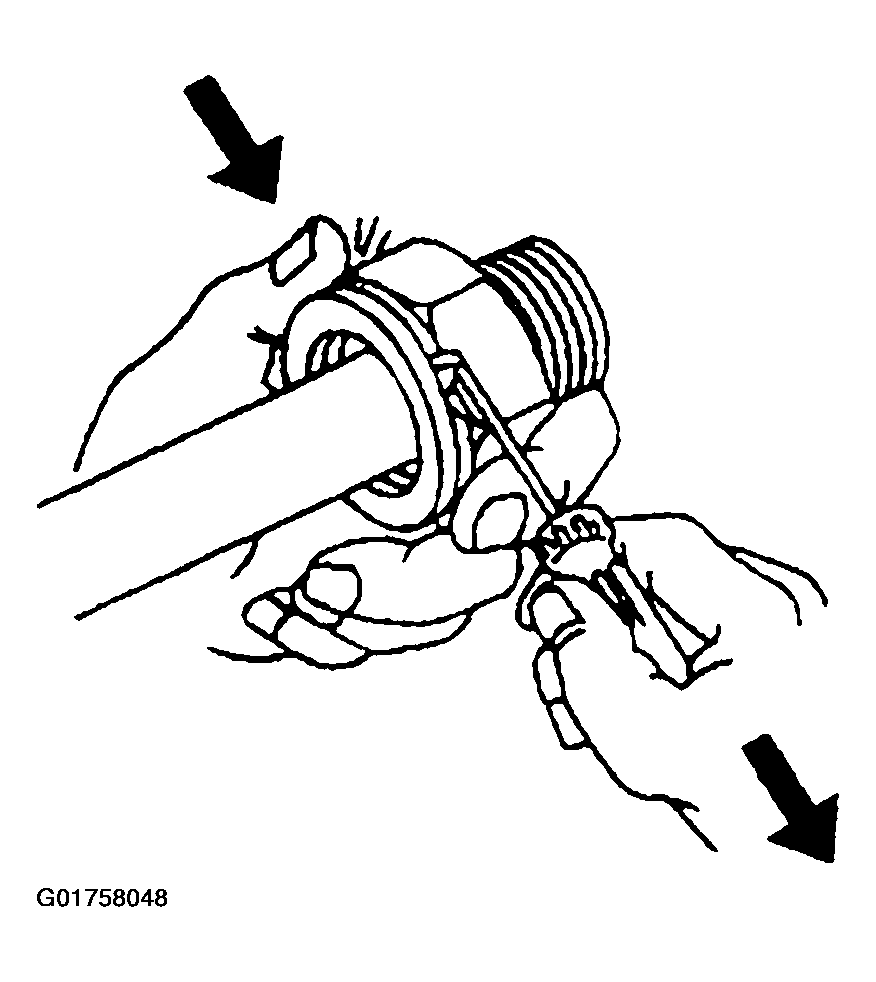

- Using a bent-tip screwdriver, pull on one of the open ends of the retaining ring in order to rotate the retaining ring around the quick connect fitting until the retaining ring is out of position and can be completely removed.
Courtesy of GENERAL MOTORS CORP.
- Remove the retaining ring from the quick connect fitting.
- Discard the retaining ring.
Courtesy of GENERAL MOTORS CORP.
- Pull the transaxle oil cooler pipe straight out from the quick connect fitting.
Courtesy of GENERAL MOTORS CORP.

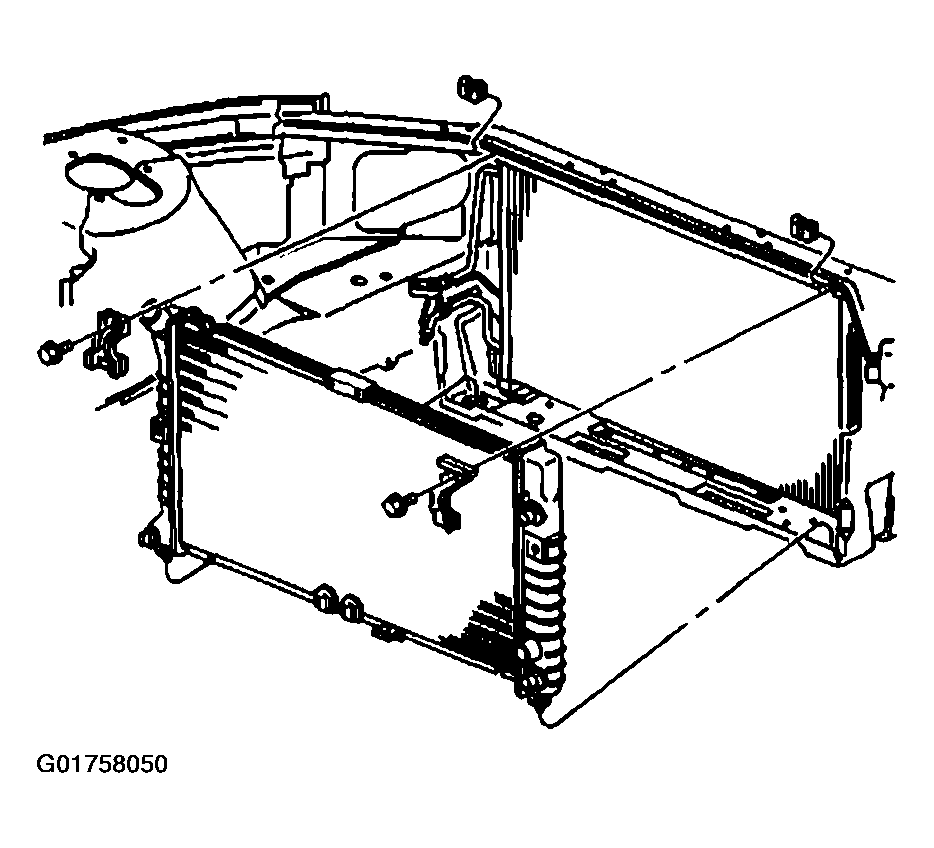

- Remove the radiator mounting bolts and bracket.
- Remove the radiator.
Courtesy of GENERAL MOTORS CORP.

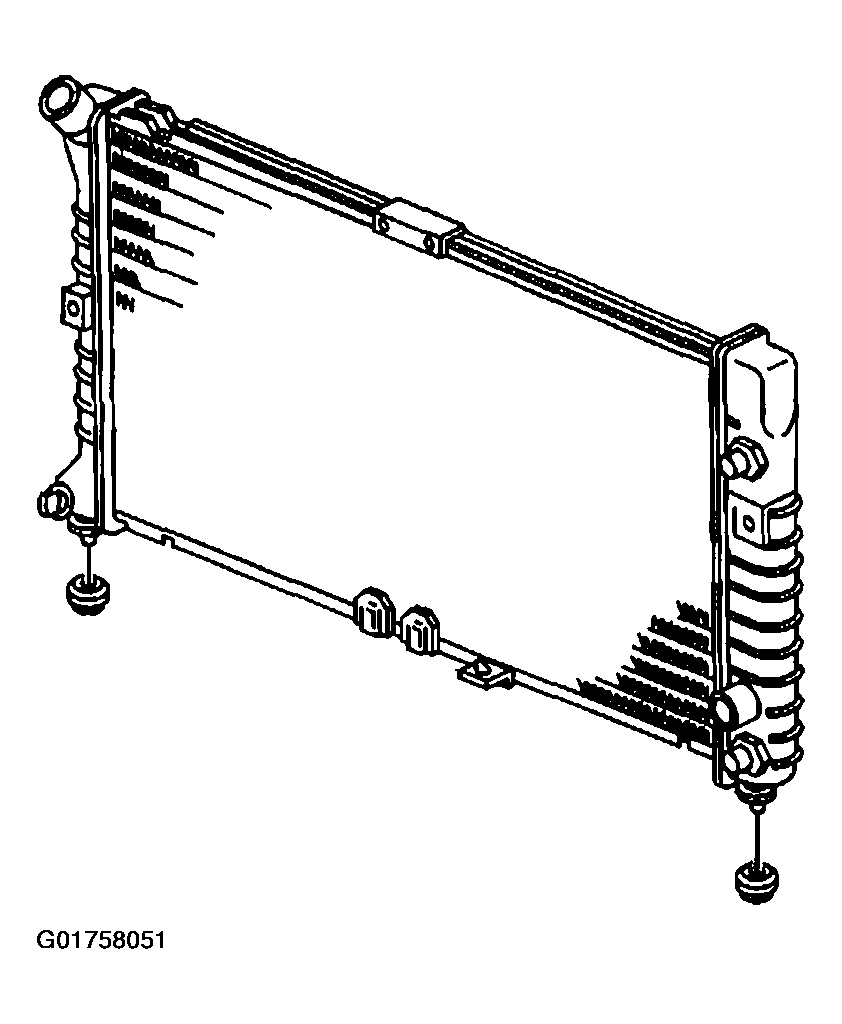

- Remove the radiator mounts.
Courtesy of GENERAL MOTORS CORP.
