Connector Identification

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying HVAC Control Panel Black 8-Pin Harness Connector C1 Terminals

G98E03048

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying HVAC Control Panel Green 16-Pin Harness Connector C2 Terminals

G00011769

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Blower Motor Resistor Harness Connector Terminals

G98I03050

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Pressure Sensor Harness Connector Terminals

G00194550

Courtesy of GENERAL MOTORS CORP.

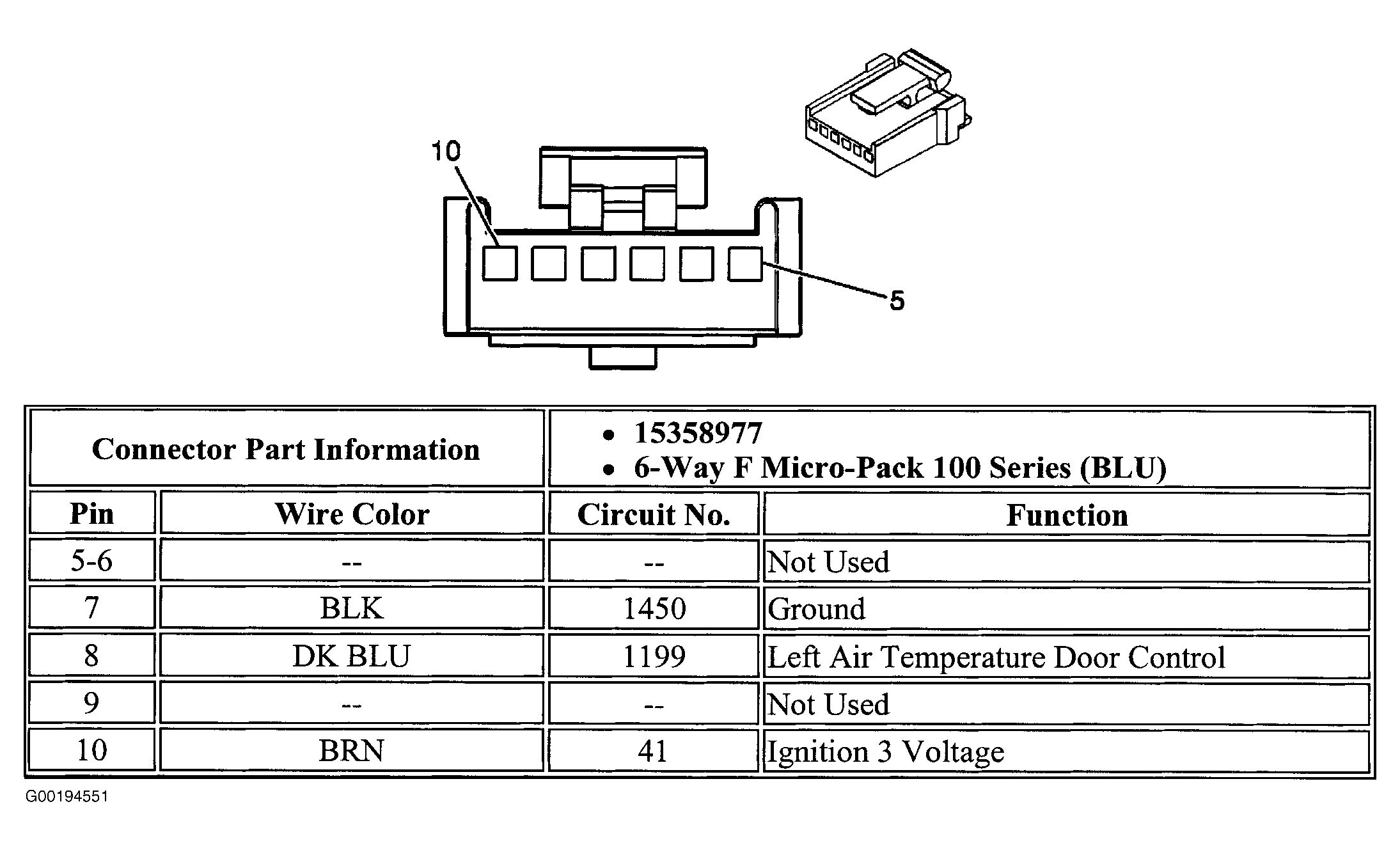

Fig 5: Identifying Temperature Actuator Harness Connector Terminals

G00194551

Courtesy of GENERAL MOTORS CORP.

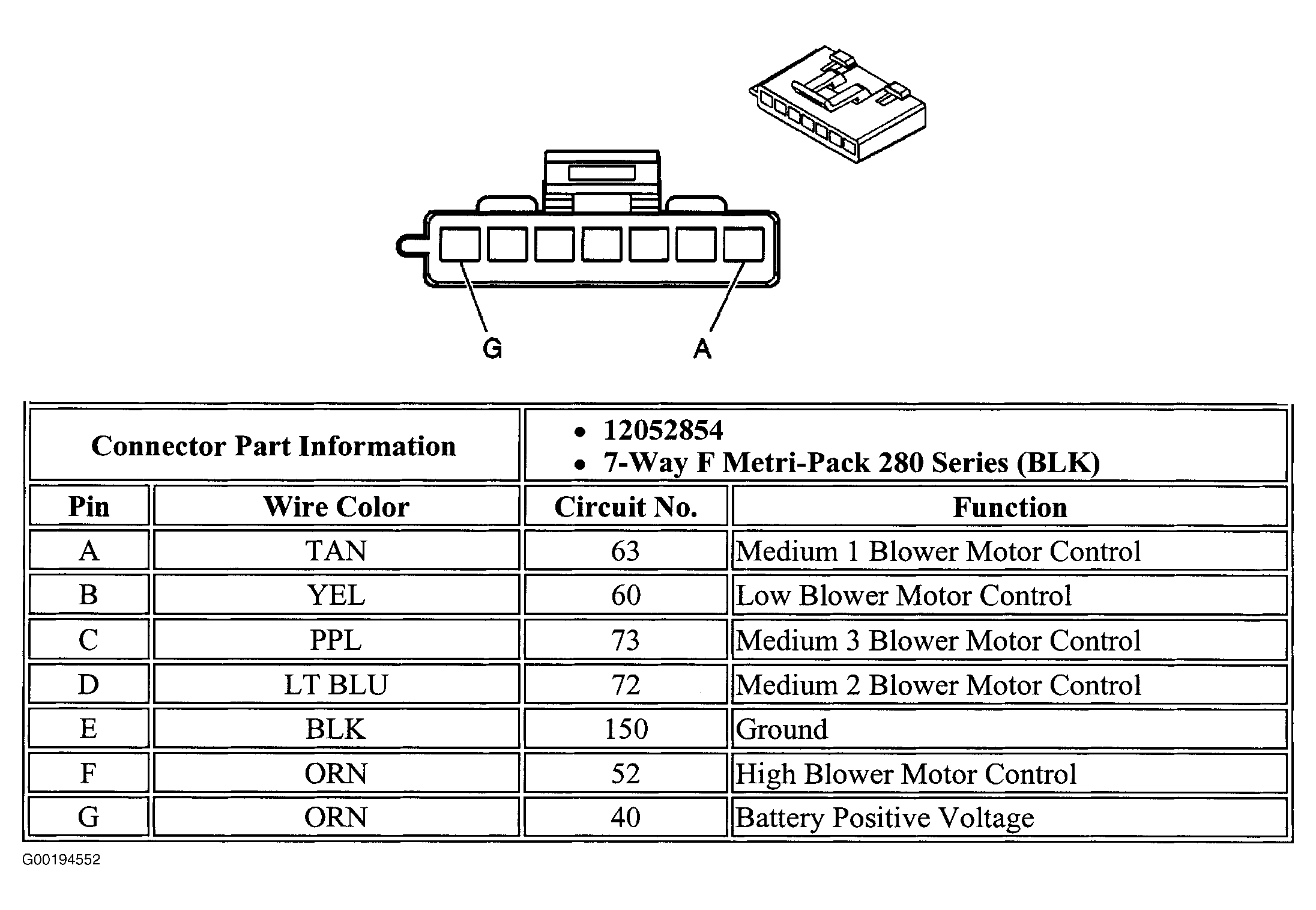

Fig 6: Identifying Blower Motor Resistor Harness Connector Terminals

G00194552

Courtesy of GENERAL MOTORS CORP.

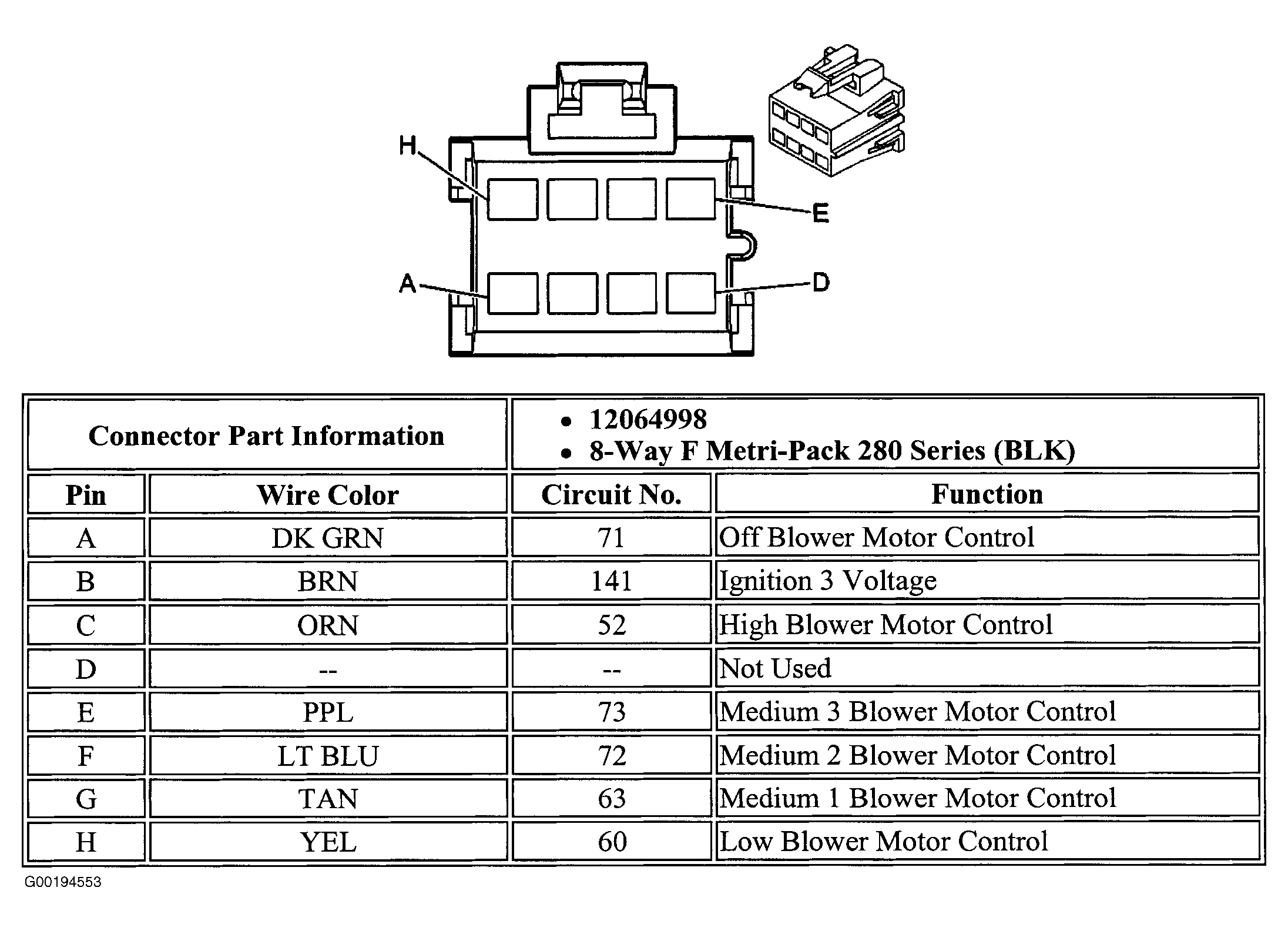

Fig 7: Identifying HVAC Control Assembly Harness Connector (C1) Terminals

G00194553

Courtesy of GENERAL MOTORS CORP.

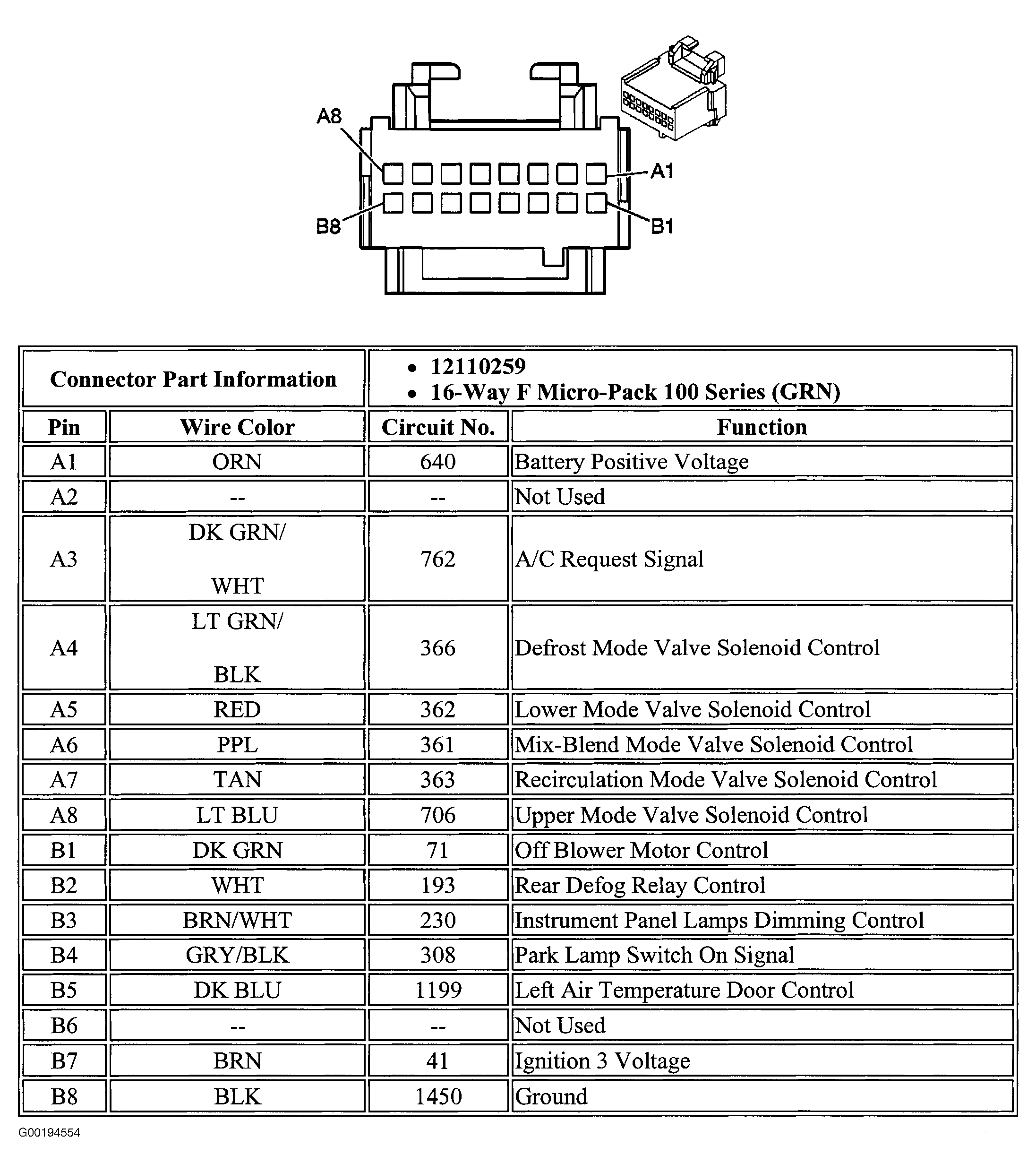

Fig 8: Identifying HVAC Control Assembly Harness Connector (C1) Terminals

G00194554

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying HVAC Control Harness Connector Terminals

G00194555

Courtesy of GENERAL MOTORS CORP.
