Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Install the fog lamp bulb/socket to the fog lamp by rotating clockwise.

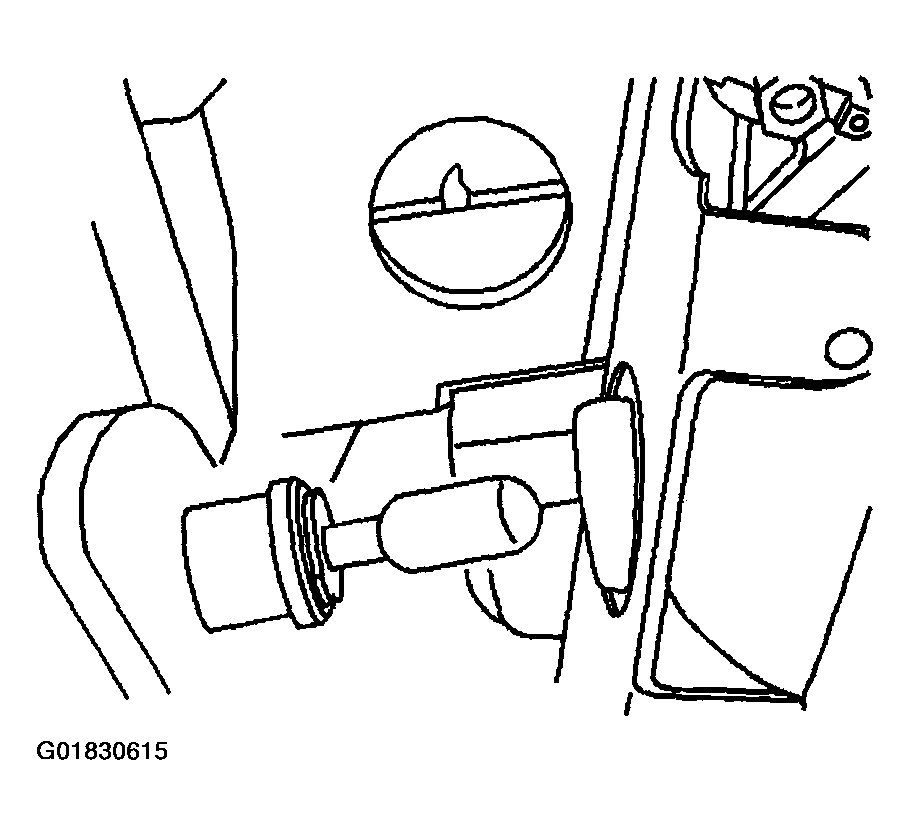

Fig 1: Installing Fog Lamp Bulb To Fog Lamp
Courtesy of GENERAL MOTORS CORP.
Install the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE
Install the fog lamp bulb/socket to the fog lamp rotating the bulb/socket clockwise.

Fig 2: Installing Front Bumper Fascia Deflector
Courtesy of GENERAL MOTORS CORP.
