Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fog lamp to the front bumper impact bar.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the front fog lamp nuts to the front bumper impact bar.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Install the front fascia lower support. Refer to FASCIA SUPPORT REPLACEMENT - FRONT BUMPER LOWER

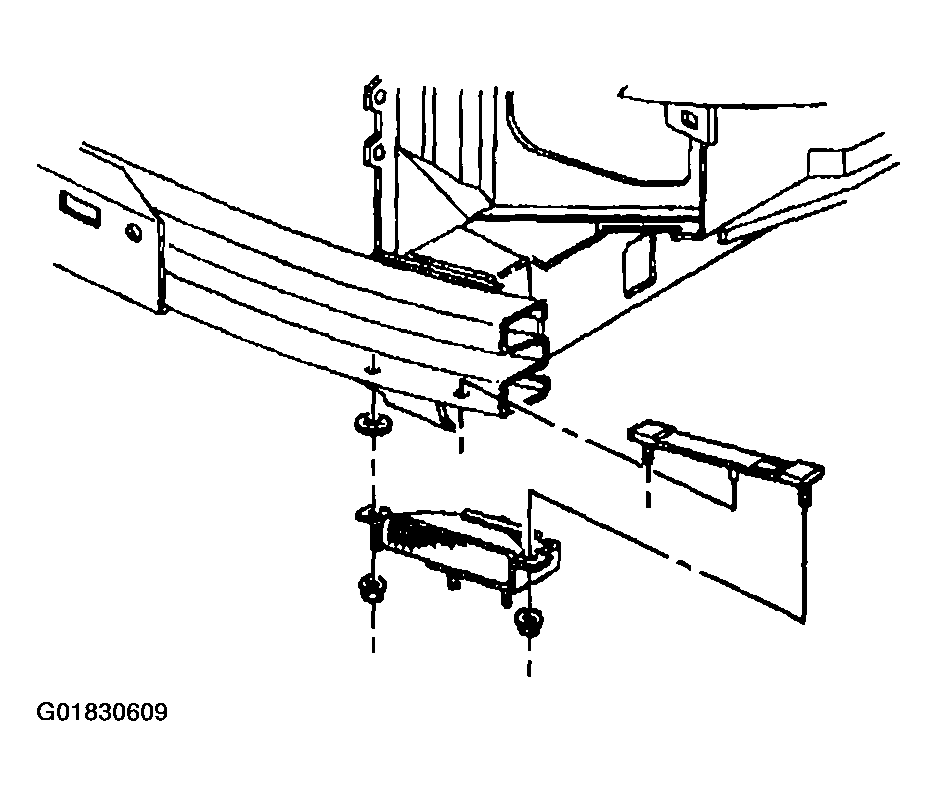

    Fig 1: Installing Front Fog Lamp Nuts To Front Bumper Impact Bar
    G01830609Courtesy of GENERAL MOTORS CORP.
  4. Install the fog lamp bulb/socket to the fog lamp by rotating clockwise.

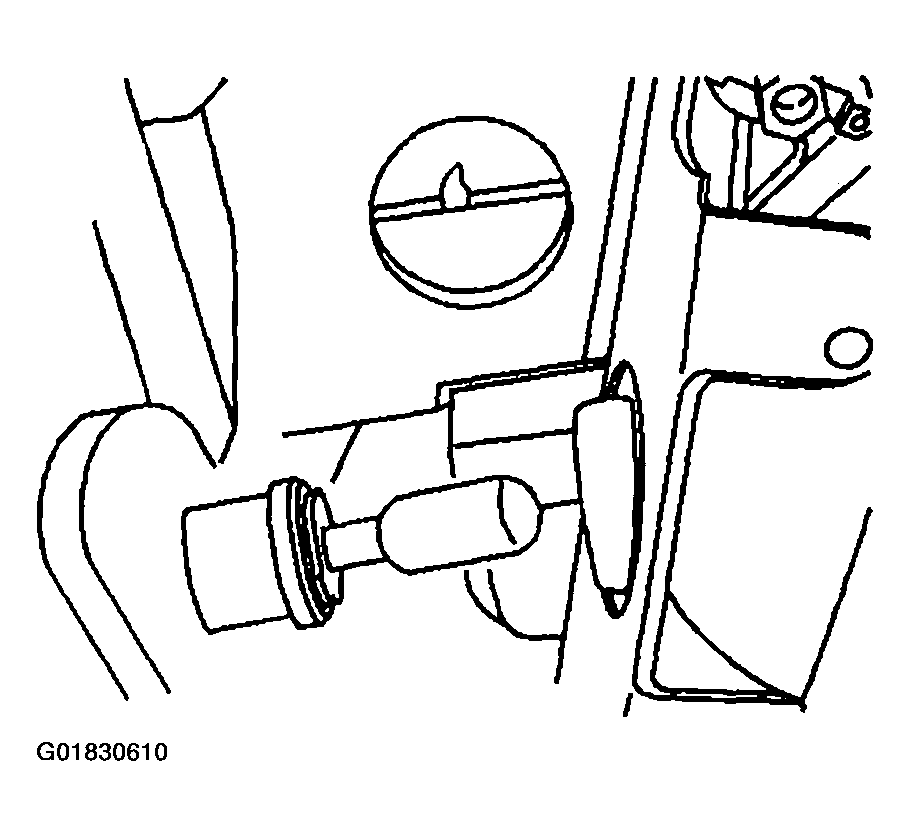

    Fig 2: Installing Fog Lamp Bulb To Fog Lamp
    G01830610Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the front fog lamp.
  6. Install the front bumper fascia deflector. Refer to FRONT BUMPER FASCIA DEFLECTOR REPLACEMENT - SIDE
  7. Check and adjust the front fog lamp aim as necessary. Refer to Fog Lamp Aiming Procedure .

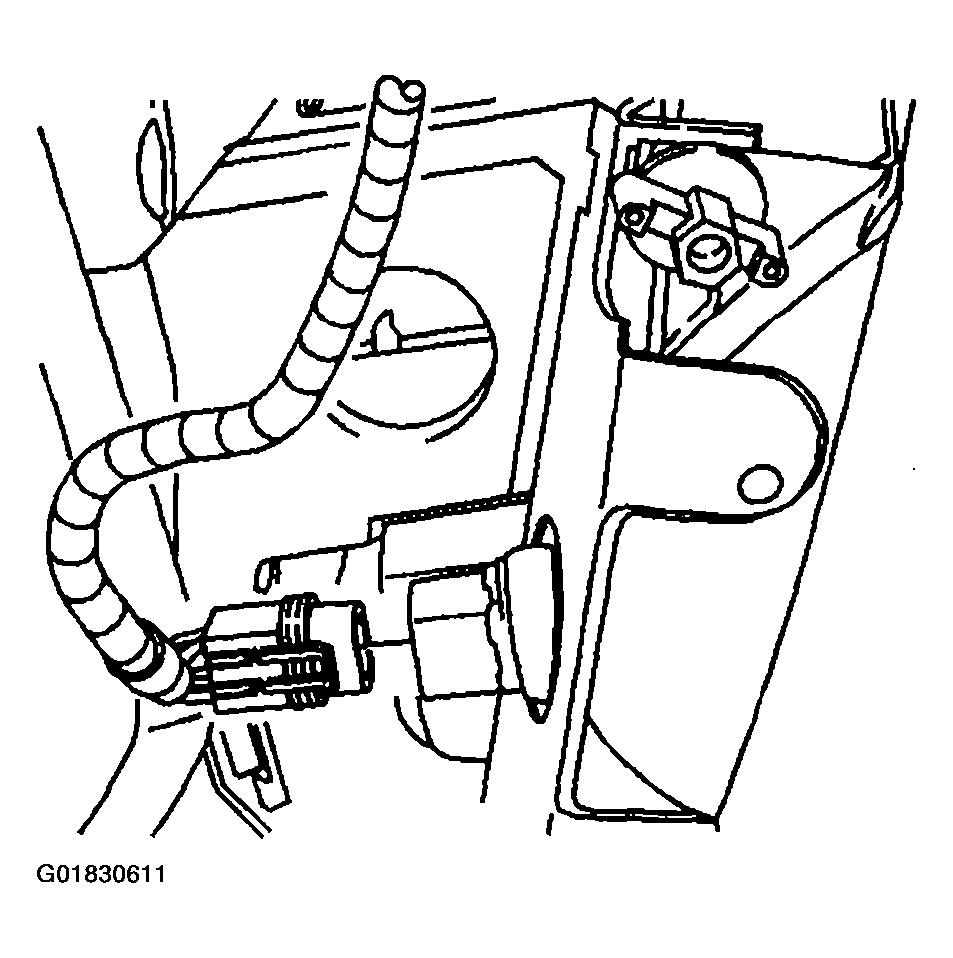

    Fig 3: Installing Electrical Connector To Front Fog Lamp
    G01830611Courtesy of GENERAL MOTORS CORP.
