Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (IP) compartment door.
  2. Depress the retaining tabs on the top and bottom of the IP compartment lamp switch.
  3. Carefully push the switch out of the opening and reposition the switch.
  4. Disconnect the electrical connector from the IP compartment lamp switch.
  5. Grasp the bulb, then pull to remove the bulb from the lamp switch.

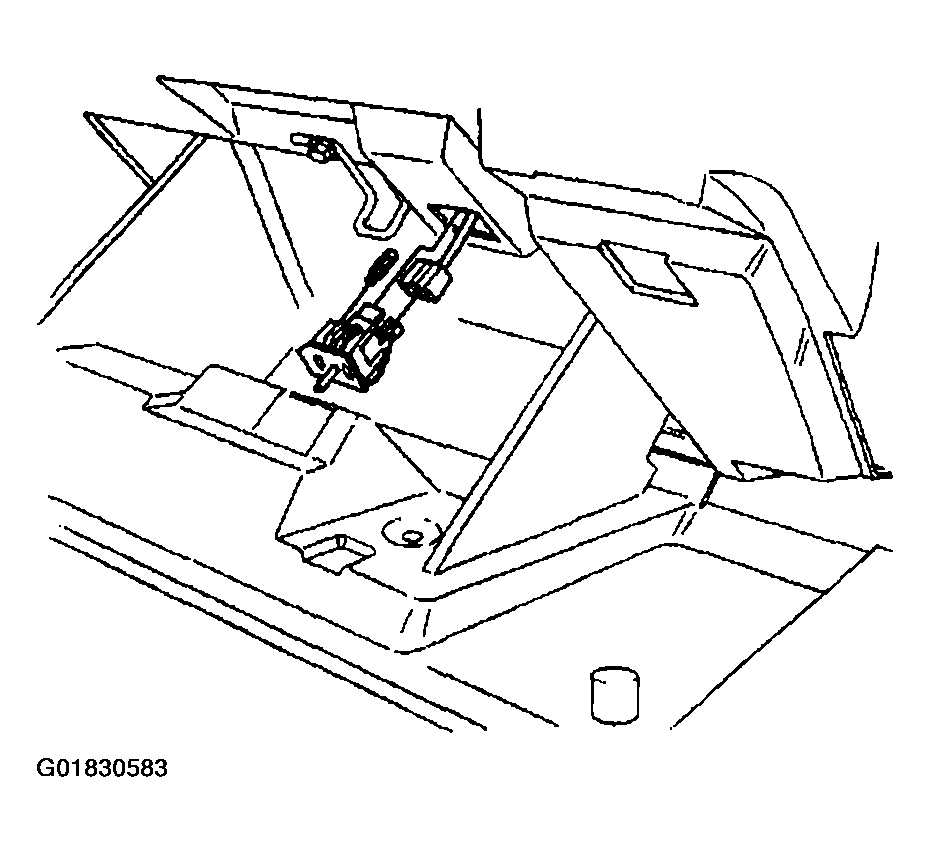

    Fig 1: Removing Electrical Connector From IP Compartment Lamp Switch
    G01830583Courtesy of GENERAL MOTORS CORP.
