Removal Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
- Open the rear compartment.
- Remove the rear compartment lid trim screws from the rear compartment lid.
- Remove the rear compartment lid trim from the rear compartment lid.

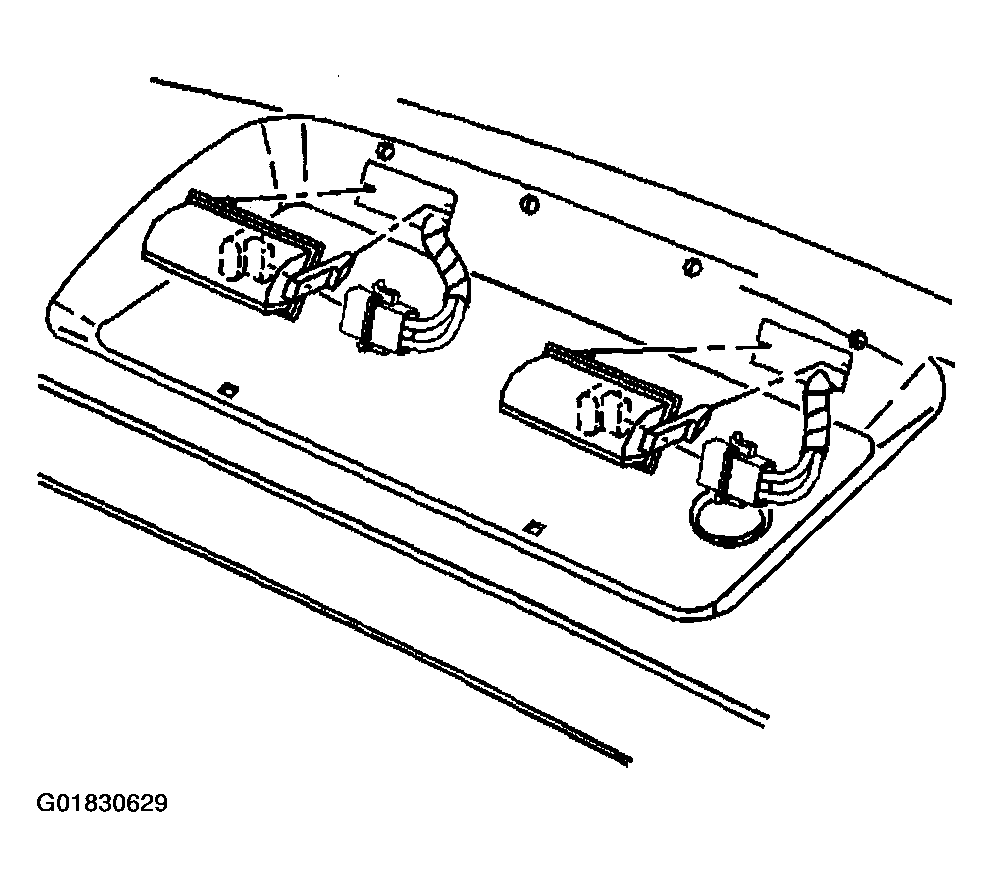

- Reach through the access opening on the underside of the rear compartment lid and depress the license lamp retainers to release.
- Push the license lamp out from the rear compartment lid.
- Disconnect the electrical connector from the license lamp.
- Release the license lamp lens retaining tabs, then remove the lens from the license lamp base, if replacing the bulb.
- Remove the license lamp bulb from the socket, if replacing the bulb.
