Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Align the sunshade retainer bezel to the headliner and apply pressure until fully seated.

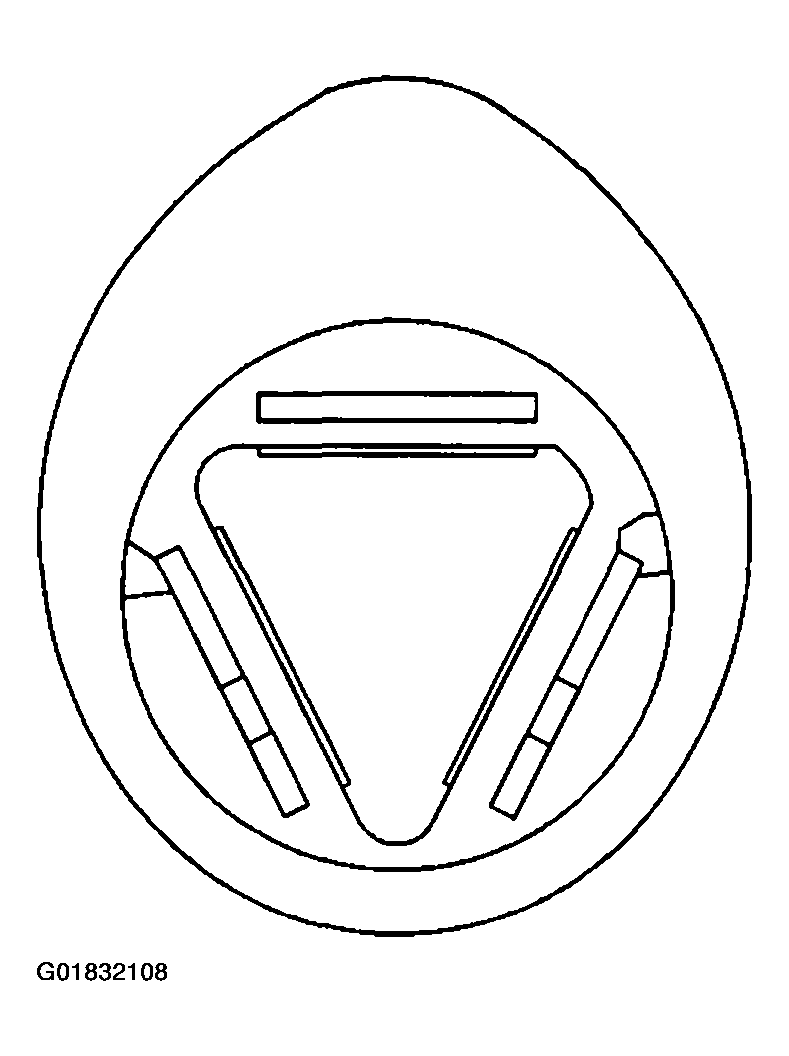

Fig 1: Aligning Sunshade Retainer Bezel To Headliner
Courtesy of GENERAL MOTORS CORP.
Position the sunshade in the vehicle.
Connect the electrical connector (3), if equipped.

Fig 2: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Align the sunshade arm so that the triangular base with the arrow (4) is parallel to the sunshade (3).

Fig 3: Aligning Sunshade Arm So That Triangular Base With Arrow Is Parallel To Sunshade
Courtesy of GENERAL MOTORS CORP.
Position the sunshade so it is parallel to the door.
Press up until the flange is seated in the retainer bezel. Maintain this pressure.
Quickly rotate the sunshade toward the windshield until it is past the sunshade anchor. A slight click will be heard once the retainer shaft seats into the bezel.
Return the sunshade to its stored position.

Fig 4: Positioning Sunshade So It Is Parallel To Door
Courtesy of GENERAL MOTORS CORP.
