Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

Insert a flat-tipped tool at the windshield edge of the console (1) and rotate the handle forward to release the clips.

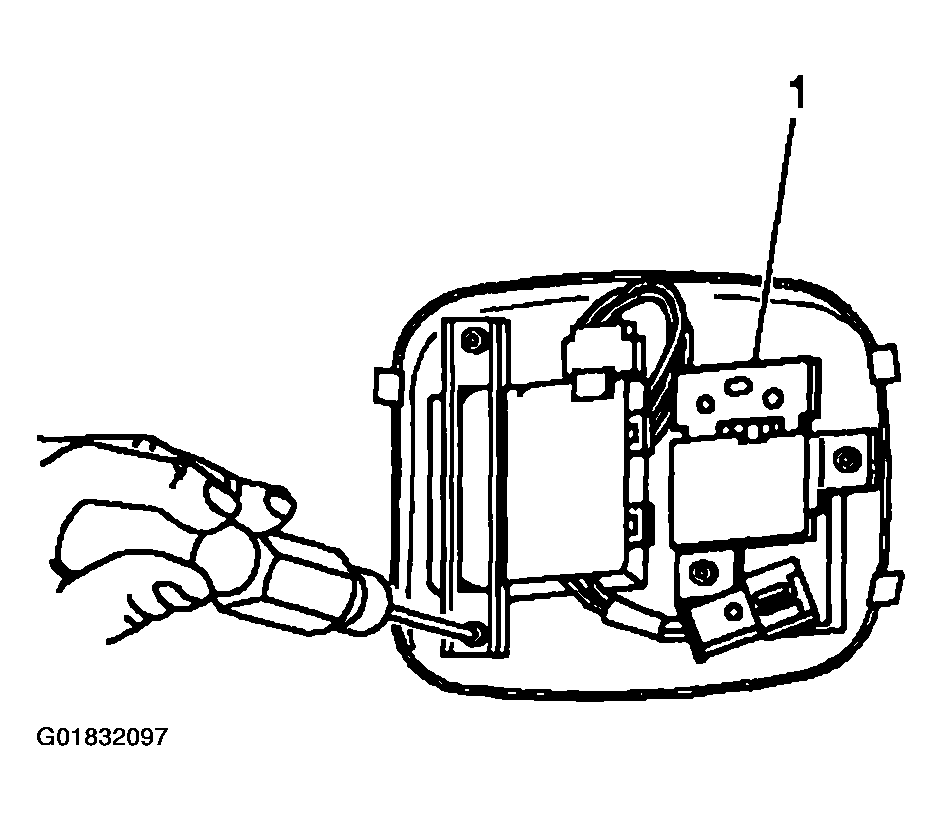

Fig 1: Inserting Tool At Edge Of Console To Release Clips
Courtesy of GENERAL MOTORS CORP.
Pull the console down and disconnect the electrical connectors to the sunroof switch (1) and to the garage door transmitter.
Remove the overhead console from the vehicle.

Fig 2: Removing Electrical Connectors To Sunroof Switch & Overhead Console
Courtesy of GENERAL MOTORS CORP.
