Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| Battery Cable-To-Battery Bolt | 13 (17) | |||
| Starter Mounting Bolts | ||||
| 3.5L | 37 (50) | |||
| 4.0L | 22 (30) | |||
| INCH Lbs. (N.m) | ||||
| Fuel Rail Bracket Nut | 89 (10) | |||
| Fuel Rail Stud Bolts | 89 (10) | |||

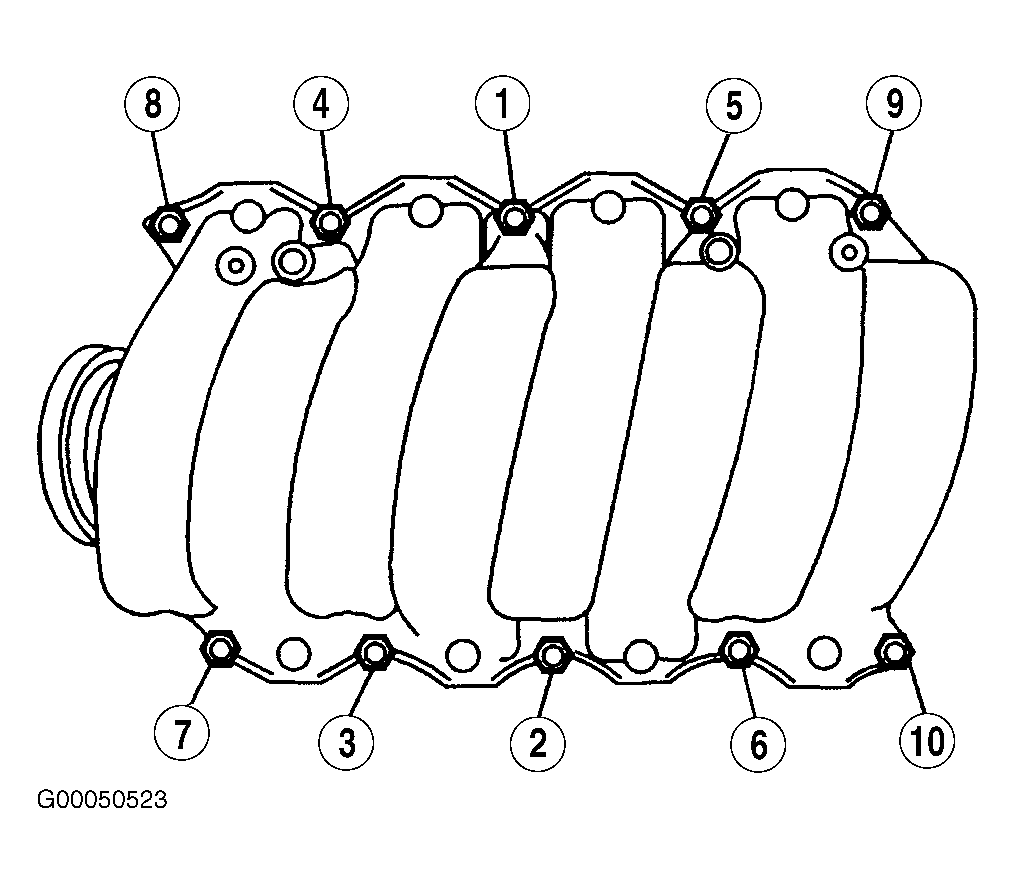

| Intake Manifold Bolts (1) | 89 (10) | |||
| Intake Manifold Cover Nuts | 27 (3.0) | |||
| Positive Battery Cable-To-Solenoid Nut | 89 (10) | |||
| Solenoid "S" Terminal Nut | ||||
| 3.5L | 30 (3.4) | |||
| 4.0L | 35 (4.0) | |||
|
||||
